ZZE121L-GEPDKR (2001)

Toyota Corolla (Asia/India)

Production Mar 2001 - Dec 2007
Engine 3ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0103- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

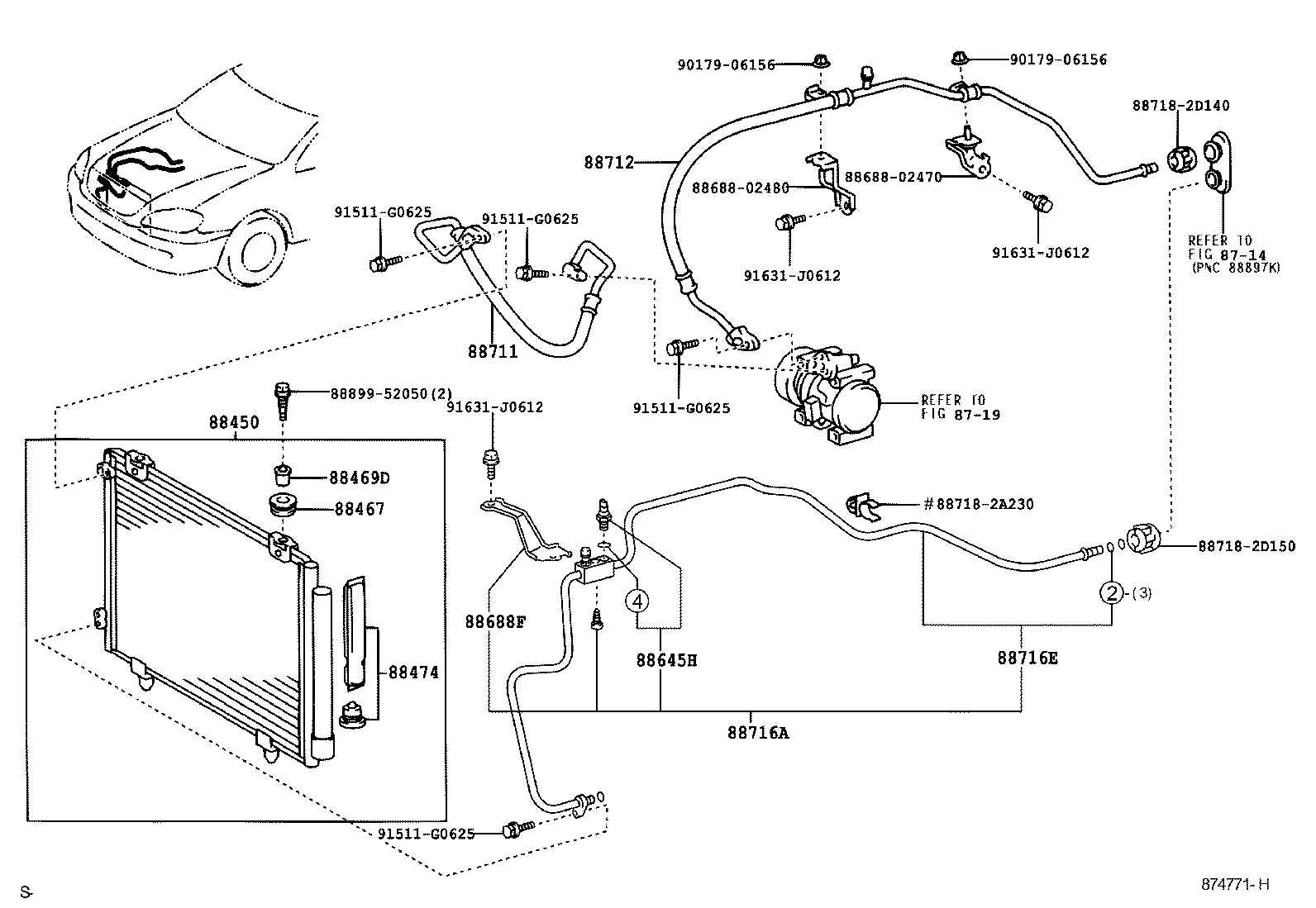

ILLUST NO. 1 OF 2(0103-0310)TAIW

Click highlighted areas on diagram

diagram 8714 8719 88450 88467 88469D 88474 88645H 8868802470 8868802480 88688F 88711 88712 88716A 88716E 887182A230 887182D140 887182D150 8889952050 9017906156 9017906156 91511G0625 91511G0625 91511G0625 91511G0625 91631J0612 91631J0612 91631J0612
Part # Description Qty Price
88450 - CONDENSER ASSY, W/RECEIVER
88450-02100

ZZE12#..(16J,18E,18G)..TAIW

 1
88450-02101

ZZE12#..TAIW

 1
88450-02101

ZZE12#..TAIW

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

ZZE12#..TAIW

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

ZZE12#..TAIW

 2
88474 - DRYER, COOLER
88474-17010

ZZE12#..TAIW

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

ZZE12#..TAIW

 1
88645-60030

ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IND,MA,PHL,TAIW)

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-1E120

ZZE12#..(16J,18E,18G)..TAIW

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02030

ZZE12#..TAIW

 1
88703-02220

ZZE12#..TAIW

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-02450

ZZE12#..TAIW

 1
88704-02190

ZZE12#..TAIW

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-02210

ZZE12#..TAIW

 1
88710-02211

ZZE12#..TAIW

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A620

ZZE12#..(16J,18E,18G)..TAIW

 1
Common parts
88688-02470
88688-02480
88718-2A230
88718-2D140
88718-2D150
88899-52050
90179-06156
91511-G0625
91631-J0612
Linked diagrams
8714
8719

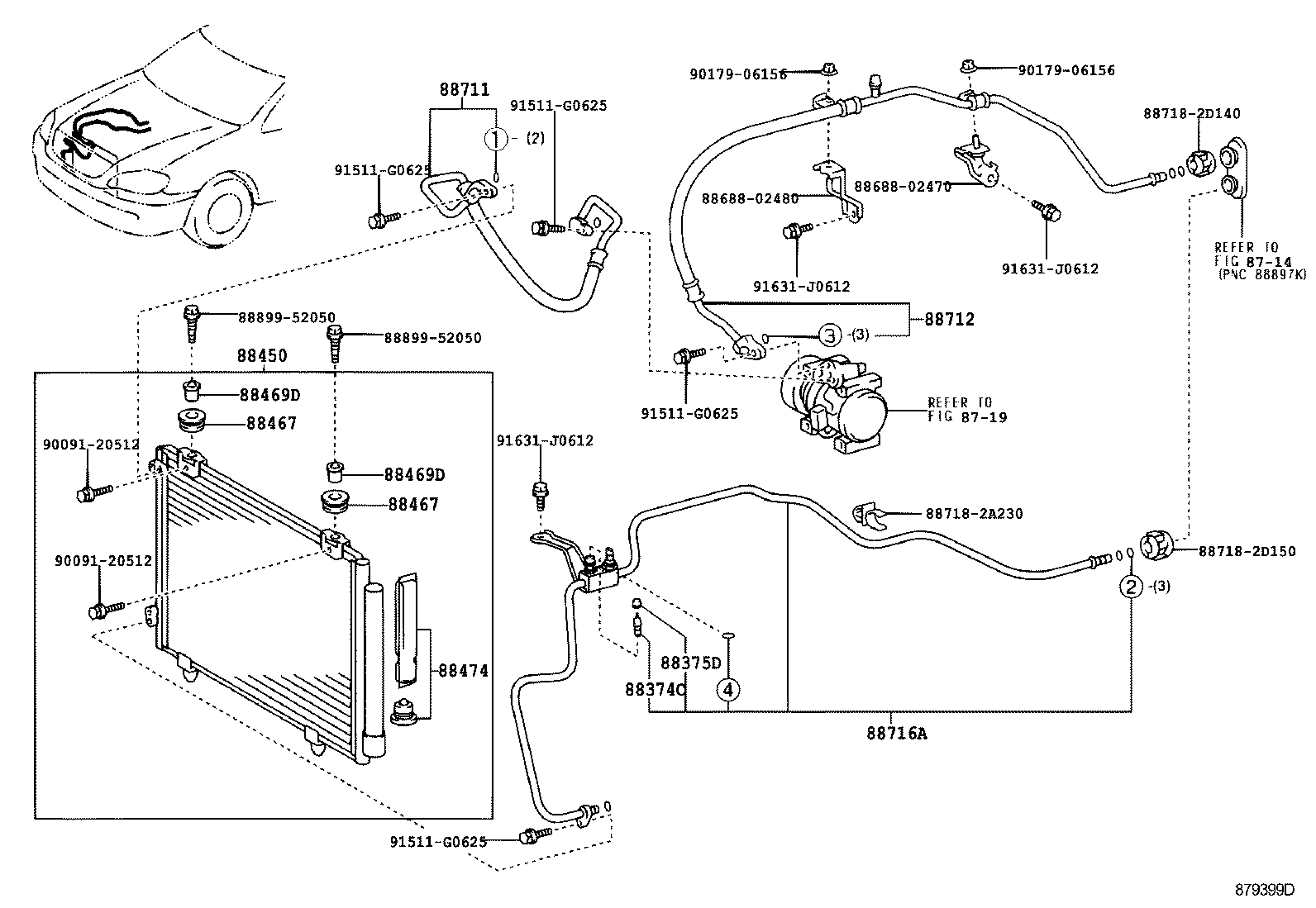

ILLUST NO. 1 OF 2(0310-0712)TAIW

Click highlighted areas on diagram

diagram 8714 8719 88374C 88375D 88450 88467 88467 88469D 88469D 88474 8868802470 8868802480 88711 88712 88716A 887182A230 887182D140 887182D150 8889952050 8889952050 9009120512 9009120512 9017906156 9017906156 91511G0625 91511G0625 91511G0625 91511G0625 91631J0612 91631J0612 91631J0612
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

ZZE12#..TAIW

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ZZE12#..TAIW

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02100

ZZE12#..(16J,18E,18G)..TAIW

 1
88450-02101

ZZE12#..TAIW

 1
88450-02101

ZZE12#..TAIW

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

ZZE12#..TAIW

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

ZZE12#..TAIW

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

ZZE12#..TAIW

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

ZZE12#..TAIW

 2
88474 - DRYER, COOLER
88474-17010

ZZE12#..TAIW

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02030

ZZE12#..TAIW

 1
88703-02220

ZZE12#..TAIW

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-02450

ZZE12#..TAIW

 1
88704-02190

ZZE12#..TAIW

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-02210

ZZE12#..TAIW

 1
88710-02211

ZZE12#..TAIW

 1
Common parts
88688-02470
88688-02480
88718-2A230
88718-2D140
88718-2D150
88899-52050
90091-20512
90179-06156
91511-G0625
91631-J0612
Linked diagrams
8714
8719
