ZZE121L-GEPDKR (2001)

Toyota Corolla (Asia/India)

Production Mar 2001 - Dec 2007
Engine 3ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0103- )IDN,MA,PHL,TAIW,TH,VN

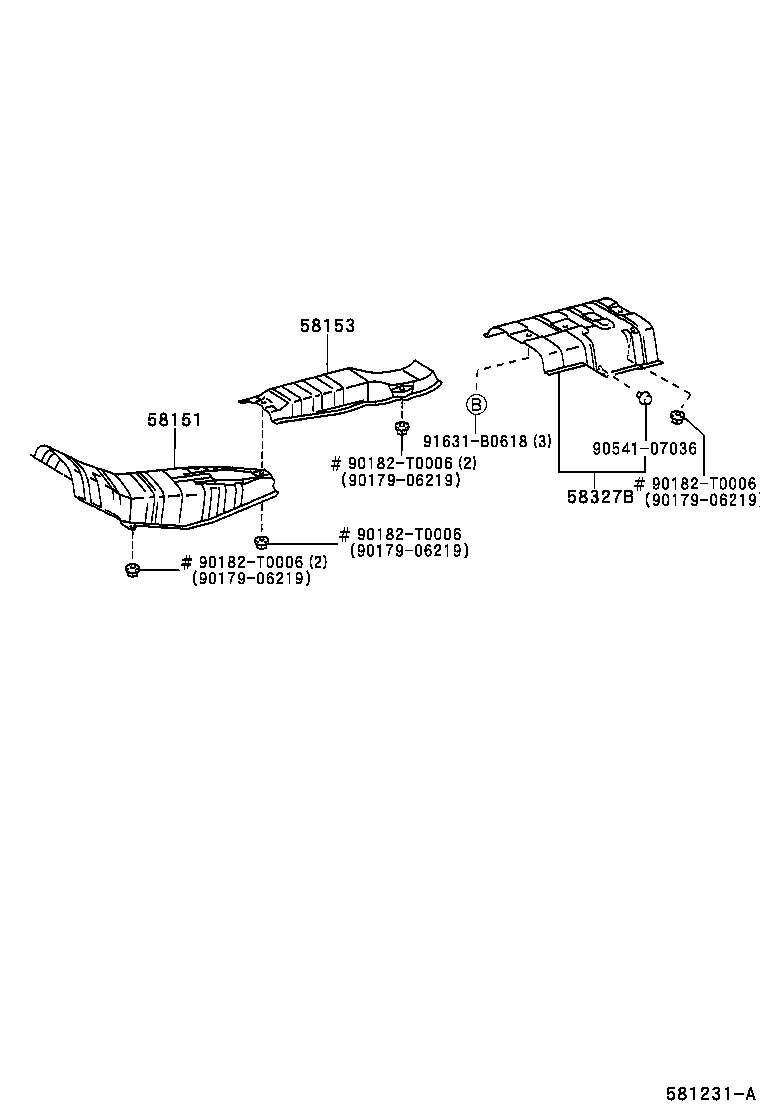

Click highlighted areas on diagram

diagram 58151 58153 58327B 9017906219 9017906219 9017906219 9017906219 90182T0006 90182T0006 90182T0006 90182T0006 9054107036 91631B0618
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-12210

ZZE12#..TAIW

 1
58151-12210

ZZE12#..(16J,18E,18G)..TAIW

 1
58151-12210

ZZE12#..TAIW

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-20141

ZZE12#..TAIW

 1
58153-20141

NZE120,ZZE12#..IDN,MA,PHL,TAIW,VN

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-12160

NZE120,ZZE12#..IDN,MA,PHL,TAIW,VN

 1
58327-12160

ZZE12#..TAIW

 1
Common parts
90179-06219
90182-T0006
90541-07036
91631-B0618
