ZZE121L-GEPDKR (2001)

Toyota Corolla (Asia/India)

Production Mar 2001 - Dec 2007
Engine 3ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0103-0211)16E,16G,18E,18G ; (0211- )ATM..16E..TH ; (0211- )16E,16G..MA,PHL ;

Click highlighted areas on diagram

diagram 46503 46504 46540 46550 46550A 46550E 46550G 46580 46590 47405A 47406A 47447D 47447E 47611 47612 47613E 47614
Part # Description Qty Price

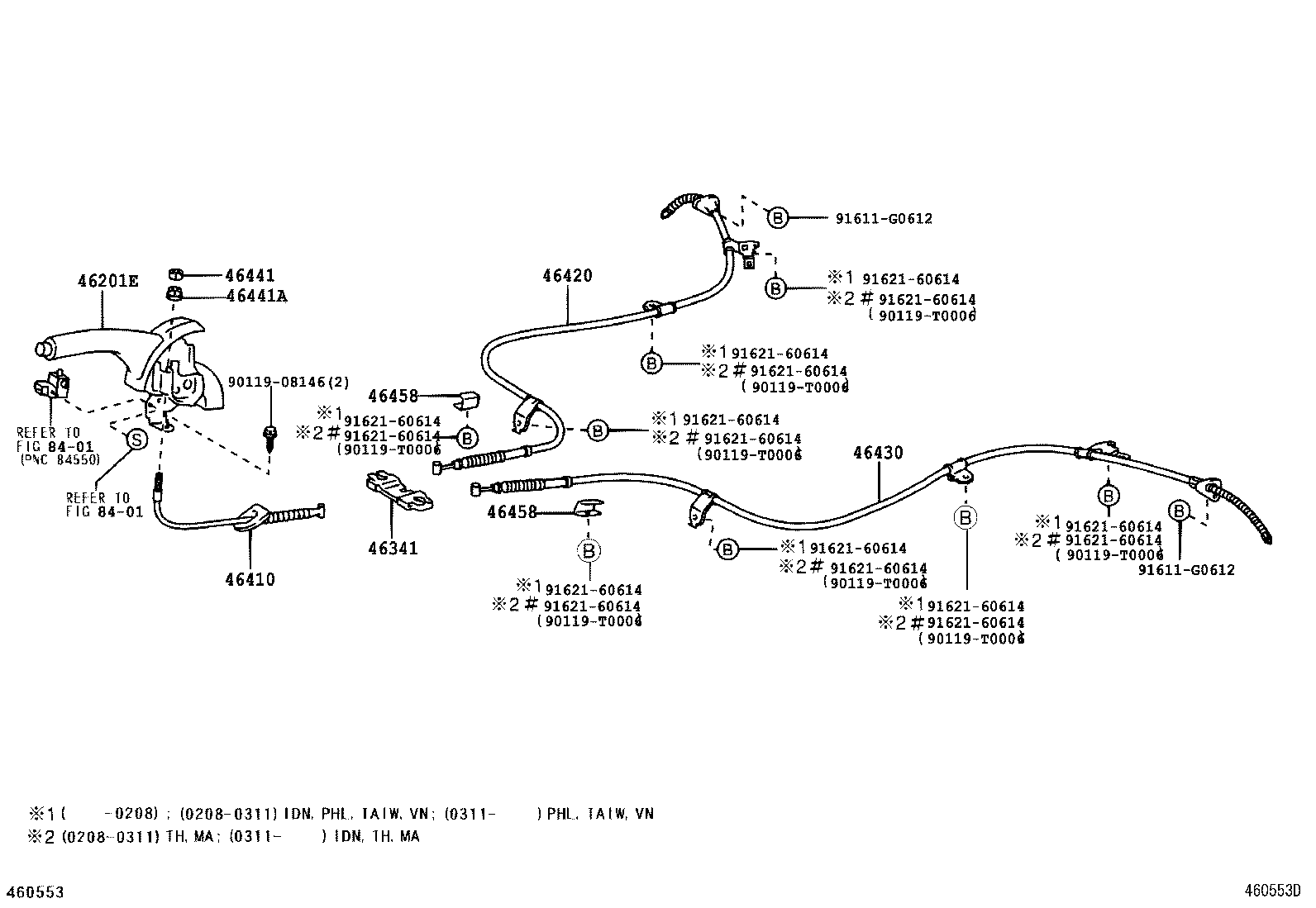

ILLUST NO. 1 OF 2(0103- )IDN,MA,PHL,TAIW,TH,VN

Click highlighted areas on diagram

diagram 46201E 46341 46410 46420 46430 46441 46441A 46458 46458 8401 8401 9011908146 90119T0006 90119T0006 90119T0006 90119T0006 90119T0006 90119T0006 90119T0006 90119T0006 91611G0612 91611G0612 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614 9162160614
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-02090B0

ZZE121..TAIW

DK. GRAY,TRIM1#

 1
46201-02090B0

ZZE121..16J..TAIW;NZE120,ZZE121..(16E,16J,J)..(PHL,VN)

DK. GRAY,TRIM1#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-20070

ZZE12#..(16J,18E,18G)..TAIW

 1
46341-20070

ZZE12#..TAIW

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-02060

ZZE12#..(16J,18E,18G)..TAIW

 1
46410-02060

ZZE12#..TAIW

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-02020

ZZE121..16J..TAIW

 1
46420-02020

ZZE121..TAIW

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-02020

ZZE121..16J..TAIW

 1
46430-02020

ZZE121..TAIW

 1
46441 - NUT, WIRE ADJUSTING, NO.1
90179-06299

ZZE12#..(16J,18E,18G)..TAIW

 1
90179-06299

ZZE12#..TAIW

 1
46441A - NUT, WIRE ADJUSTING, NO.2
90179-06171

ZZE12#..TAIW

 1
90179-06171

ZZE12#..(16J,18E,18G)..TAIW

 1
46458 - RETAINER, CABLE
46458-28010

ZZE12#..(16J,18E,18G)..TAIW

 2
46458-28010

ZZE12#..TAIW

 2
46458 - RETAINER, CABLE
46458-28010

ZZE12#..(16J,18E,18G)..TAIW

 2
46458-28010

ZZE12#..TAIW

 2
Common parts
90119-08146
90119-T0006
91611-G0612
91621-60614
Linked diagrams
8401
