ZZE121L-GEMNKM (2001)
Toyota Corolla (Asia/India)

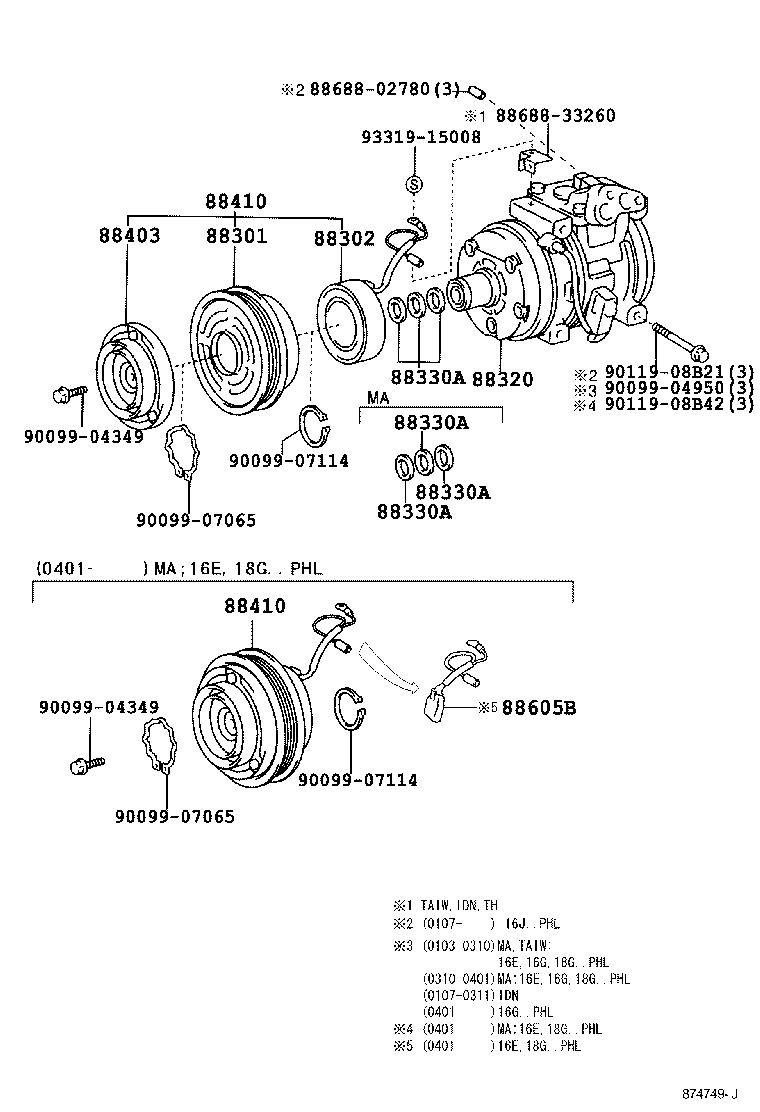

ILLUST NO. 1 OF 2(0103-0310)TAIW ; (0103-0311)IDN ; (0103-0802)PHL ; (0103- )MA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-02100 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IDN,MA,PHL,TAIW) |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2A030 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IDN,MA,PHL,TAIW) |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-02100 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
1 | ||
| 88320-02120 |
ZZE121..MTM..16E..PHL;ZZE12#..ATM..(16E,18G)..(MA,PHL) |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IDN,IND,PHL,TAIW,VN) |
1 | ||
| 88335-14020 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IDN,IND,PHL,TAIW,VN) |
1 | ||
| 88335-14020 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IDN,IND,PHL,TAIW,VN) |
1 | ||
| 88335-14020 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IDN,IND,PHL,TAIW,VN) |
1 | ||
| 88335-14020 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IDN,MA,PHL,TAIW) |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-02130 |
ZZE121..MTM..16E..PHL;ZZE12#..ATM..(16E,18G)..(MA,PHL) |
1 | ||
| 88410-02090 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IDN,MA,PHL,TAIW) |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-02130 |
ZZE121..MTM..16E..PHL;ZZE12#..ATM..(16E,18G)..(MA,PHL) |
1 | ||
| 88410-02090 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IDN,MA,PHL,TAIW) |
1 | ||
| 88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-35420 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| Common parts | ||||
| 88688-02780 | ||||
| 88688-33260 | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B21 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||

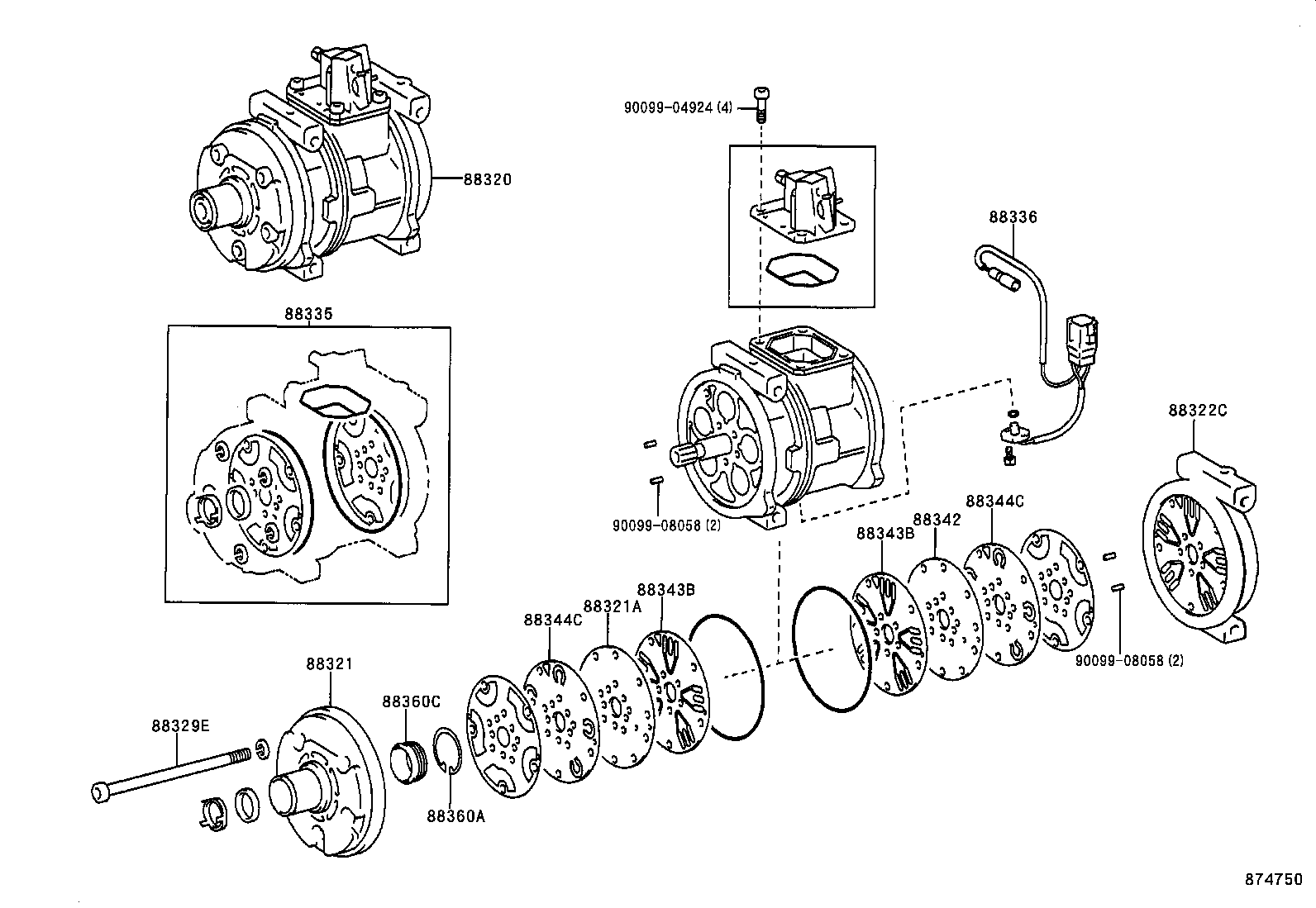

ILLUST NO. 2 OF 2(0103-0310)TAIW ; (0103-0311)IDN ; (0103-0401)MA,PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-02100 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
1 | ||
| 88320-02120 |
ZZE121..MTM..16E..PHL;ZZE12#..ATM..(16E,18G)..(MA,PHL) |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-2B010 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
1 | ||
| 88322C - HEAD, CYLINDER, REAR | ||||
| 88322-32040 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04370 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B030 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
1 | ||
| 88336 - SENSOR, COMPRESSOR | ||||
| 88336-8C002 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 88342 - PLATE, COMPRESSOR VALVE, RR | ||||
| 88342-22010 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B020 |
ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G)..(PHL,TAIW) |
1 | ||
| Common parts | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||
