Toyota Corolla (asia/india) ZZE121 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
COROLLA (ASIA/INDIA)
ZZE121L-GEMNKM (2001)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

ZZE121L-GEMNKM (2001)

Toyota Corolla (Asia/India)

Production Jul 2001 - Feb 2008

Engine 3ZZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

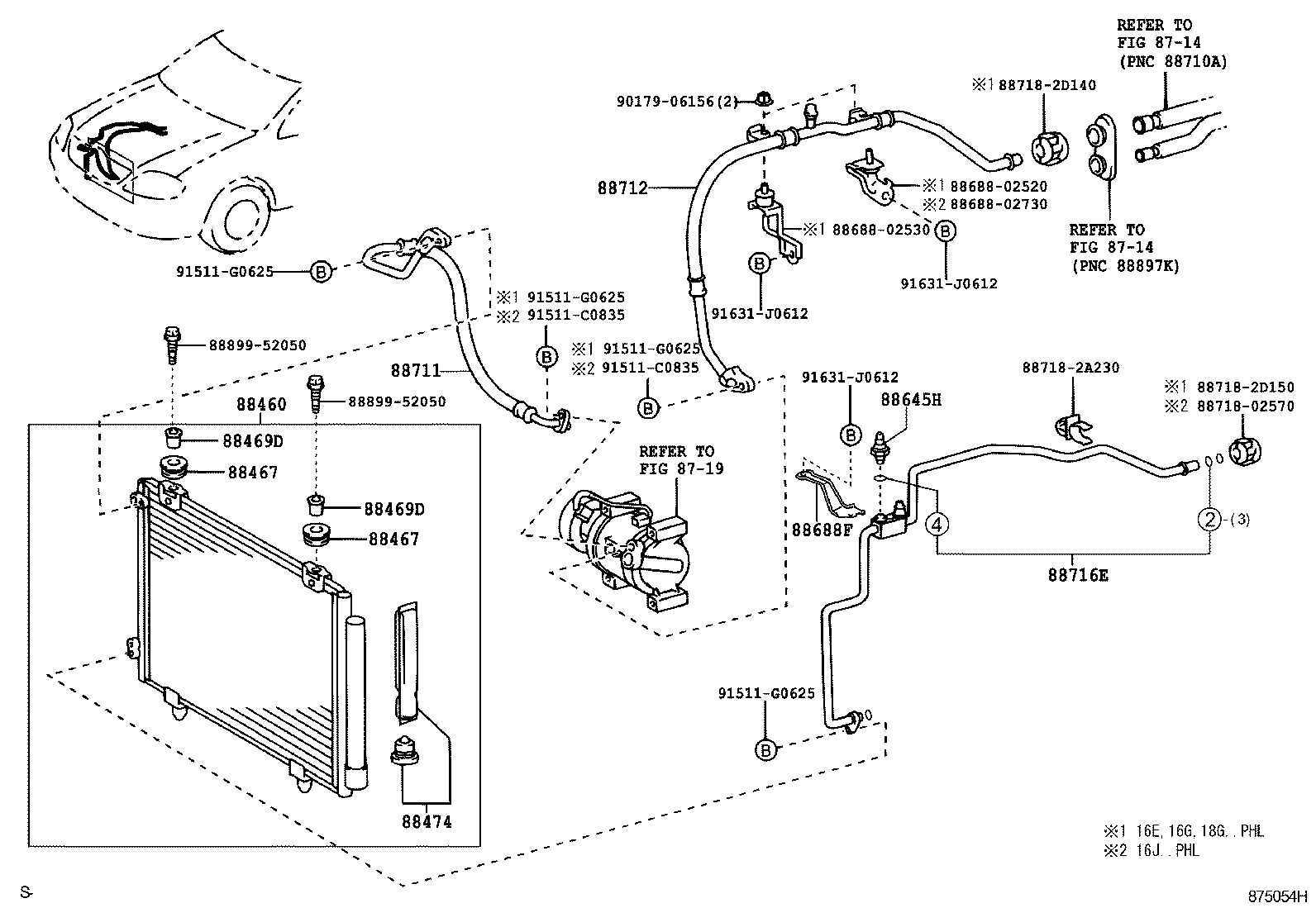

ILLUST NO. 1 OF 2(0107-0401)PHL

Click highlighted areas on diagram

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88450-02130	ZZE12#..(16E,16G,18G)..PHL	07/2001 - 01/2004	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	ZZE12#..(16E,16G,18G)..PHL	07/2001 - 03/2004	2
88467-12180	ZZE12#..(16E,18G)..PHL	10/2003 - 02/2008	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	ZZE12#..(16E,16G,18G)..PHL	07/2001 - 03/2004	2
88467-12180	ZZE12#..(16E,18G)..PHL	10/2003 - 02/2008	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	ZZE12#..(16E,16G,18G)..PHL	07/2001 - 03/2004	2
88469-52010	ZZE12#..(16E,18G)..PHL	10/2003 - 02/2008	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	ZZE12#..(16E,16G,18G)..PHL	07/2001 - 03/2004	2
88469-52010	ZZE12#..(16E,18G)..PHL	10/2003 - 02/2008	2
88474 - DRYER, COOLER
88474-47010	ZZE12#..(16E,16G,18G,18J)..(IDN,MA,PHL)	07/2001 - 01/2004	1
88474-47010	ZZE12#..(16E,18G)..PHL	01/2004 - 02/2008	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	ZZE121..16J..TAIW;ZZE12#..(16E,16G,18E,18G,18J)..(IND,MA,PHL,TAIW)	03/2001 - 08/2005	1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-1E120	ZZE12#..(16E,16G,18G)..PHL	03/2001 - 01/2004	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02230	ZZE12#..(16E,18G)..PHL	01/2004 - 02/2008	1
88703-02080	ZZE12#..(16E,16G,18G)..PHL	07/2001 - 01/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-02220	ZZE12#..(16E,16G,18G)..PHL	07/2001 - 01/2004	1
88704-02460	ZZE12#..(16E,18G)..PHL	01/2004 - 02/2008	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-1A620	ZZE12#..(16E,16G,18G)..PHL	03/2001 - 01/2004	1
Common parts
88688-02520
88688-02530
88688-02730
88718-02570
88718-2A230
88718-2D140
88718-2D150
88899-52050
90179-06156
91511-C0835
91511-G0625
91631-J0612
Linked diagrams
8714
8719

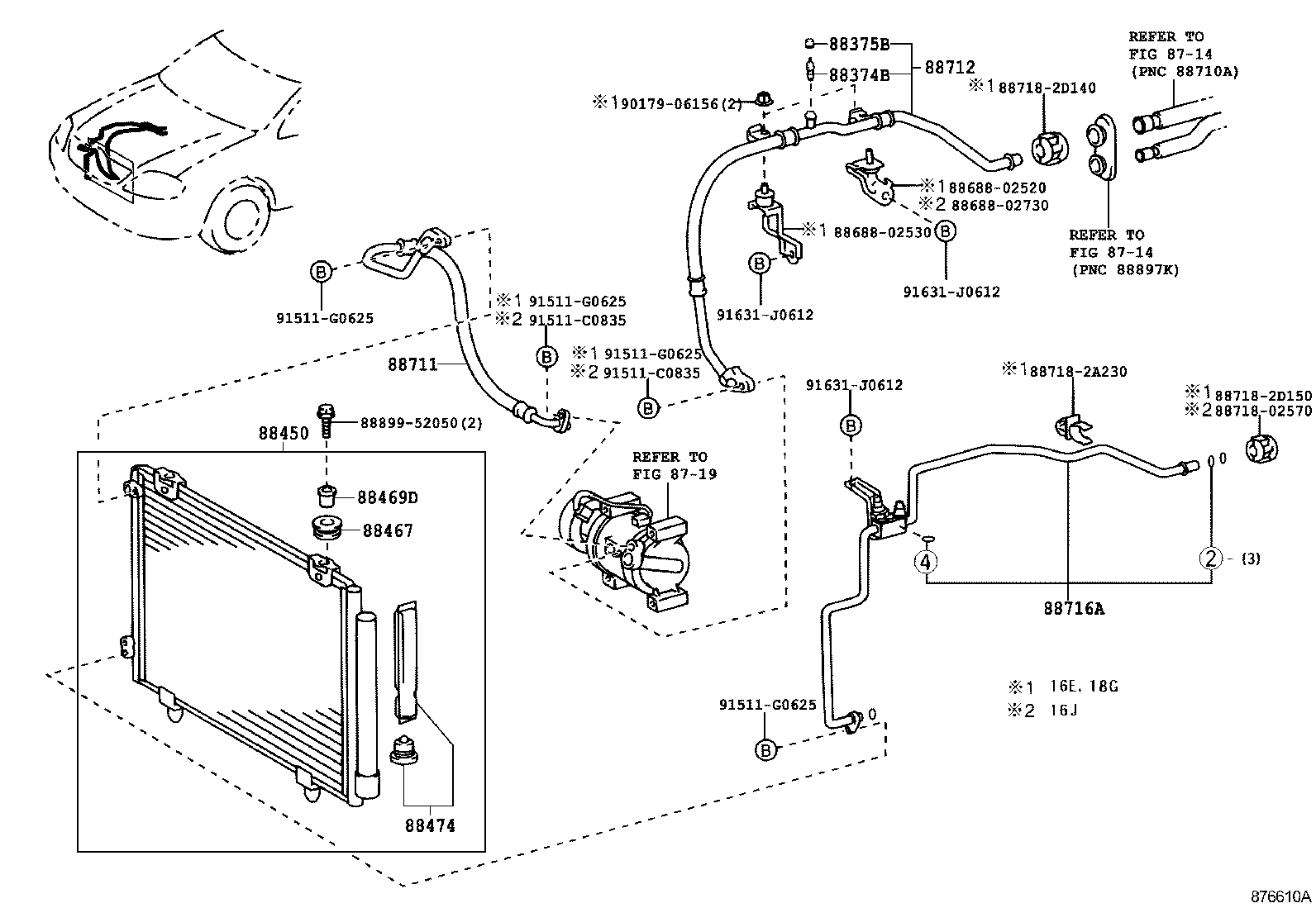

ILLUST NO. 1 OF 2(0401-0802)PHL

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	ZZE12#..(16E,18G)..PHL	01/2004 - 02/2008	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	ZZE12#..(16E,18G)..PHL	01/2004 - 02/2008	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-02130	ZZE12#..(16E,18G)..PHL	01/2004 - 02/2008	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180	ZZE12#..(16E,16G,18G)..PHL	07/2001 - 03/2004	2
88467-12180	ZZE12#..(16E,18G)..PHL	10/2003 - 02/2008	2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010	ZZE12#..(16E,16G,18G)..PHL	07/2001 - 03/2004	2
88469-52010	ZZE12#..(16E,18G)..PHL	10/2003 - 02/2008	2
88474 - DRYER, COOLER
88474-47010	ZZE12#..(16E,16G,18G,18J)..(IDN,MA,PHL)	07/2001 - 01/2004	1
88474-47010	ZZE12#..(16E,18G)..PHL	01/2004 - 02/2008	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-02230	ZZE12#..(16E,18G)..PHL	01/2004 - 02/2008	1
88703-02080	ZZE12#..(16E,16G,18G)..PHL	07/2001 - 01/2004	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-02220	ZZE12#..(16E,16G,18G)..PHL	07/2001 - 01/2004	1
88704-02460	ZZE12#..(16E,18G)..PHL	01/2004 - 02/2008	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-02240	ZZE12#..(16E,18G)..PHL	01/2004 - 02/2008	1
Common parts
88688-02520
88688-02530
88688-02730
88718-02570
88718-2A230
88718-2D140
88718-2D150
88899-52050
90179-06156
91511-C0835
91511-G0625
91631-J0612
Linked diagrams
8714
8719

ZZE121L-GEMNKM (2001)

ILLUST NO. 1 OF 2(0107-0401)PHL

ILLUST NO. 1 OF 2(0401-0802)PHL
