ZZE121L-GEMNKM (2001)

Toyota Corolla (Asia/India)

Production Jul 2001 - Feb 2008
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0103-0712)TAIW ; (0107-0802)16E,16G,18G..PHL ;(0107- )VN

Click highlighted areas on diagram

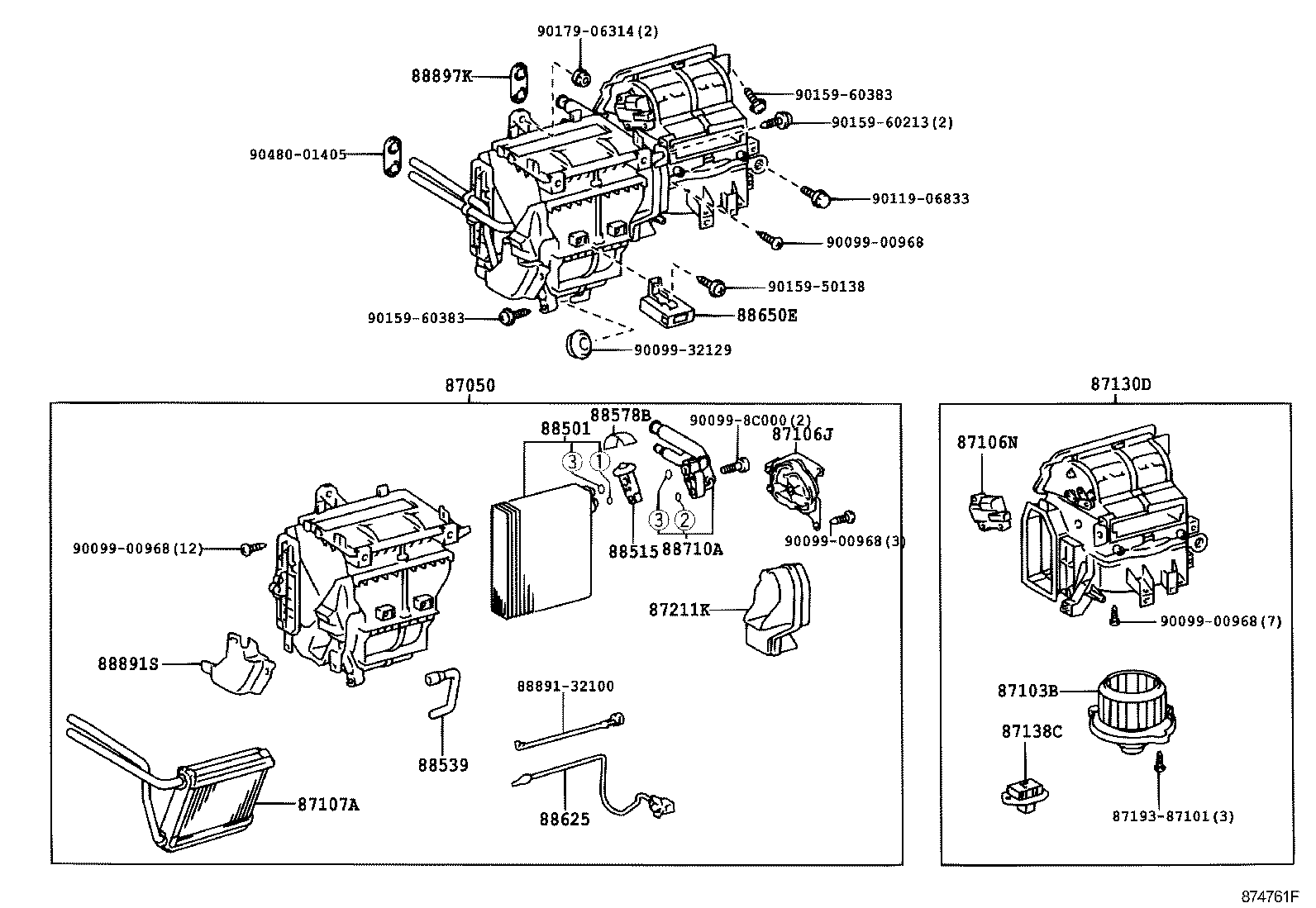

MANUAL AIR CONDITIONER

diagram 87050 87103B 87106J 87106N 87107A 87130D 87138C 8719387101 87211K 88501 88515 88539 88578B 88625 88650E 88710A 8889132100 88891S 88897K 9009900968 9009900968 9009900968 9009900968 9009932129 900998C000 9011906833 9015950138 9015960213 9015960383 9015960383 9017906314 9048001405
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02190

ZZE12#..(16E,16G,18G)..PHL

 1
88501-02190

ZZE12#..(16E,18G)..PHL

 1
88515 - VALVE, COOLER EXPANSION
88515-28160

ZZE12#..(16E,18G)..(MA,PHL)

 1
88515-28160

ZZE12#..(16E,16G,18G,18J)..(IDN,MA,PHL)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12180

ZZE12#..(16E,16G,18G)..PHL

 1
88539-12180

ZZE12#..(16E,18G)..PHL

 1
88625 - THERMISTOR, COOLER, NO.1
88625-60140

ZZE12#..(16E,18G)..PHL

 1
88625-60140

ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-0Z140

ZZE12#..(16E,16G,18G)..PHL

 1
88710-0Z140

ZZE12#..(16E,18G)..PHL

 1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434

ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL

 1
90480-01434

NZE120,ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL

 1
Common parts
87193-87101
88891-32100
90099-00968
90099-32129
90099-8C000
90119-06833
90159-50138
90159-60213
90159-60383
90179-06314
90480-01405

ILLUST NO. 1 OF 2(0103-0712)TAIW ; (0107-0802)16E,16G,18G..PHL ;(0107- )VN

Click highlighted areas on diagram

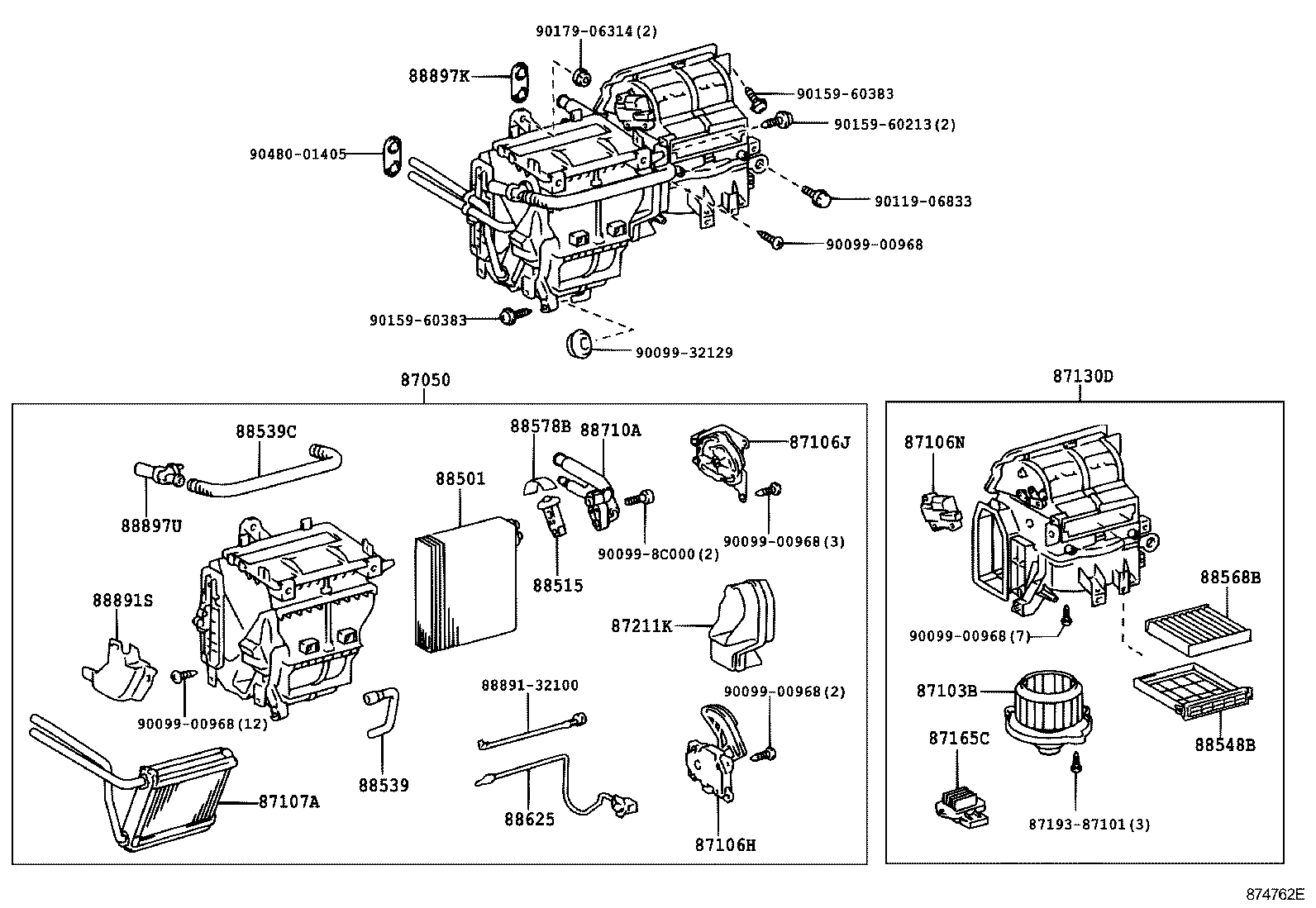

AUTO AIR CONDITIONER

diagram 87050 87103B 87106H 87106J 87106N 87107A 87130D 87165C 8719387101 87211K 88501 88515 88539 88539C 88548B 88568B 88578B 88625 88710A 8889132100 88891S 88897K 88897U 9009900968 9009900968 9009900968 9009900968 9009900968 9009932129 900998C000 9011906833 9015960213 9015960383 9015960383 9017906314 9048001405
Part # Description Qty Price
87165C - CONTROL, BLOWER MOTOR
87165-13010

ZZE12#..(16E,18G)..PHL

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-02190

ZZE12#..(16E,16G,18G)..PHL

 1
88501-02190

ZZE12#..(16E,18G)..PHL

 1
88515 - VALVE, COOLER EXPANSION
88515-28160

ZZE12#..(16E,18G)..(MA,PHL)

 1
88515-28160

ZZE12#..(16E,16G,18G,18J)..(IDN,MA,PHL)

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12180

ZZE12#..(16E,16G,18G)..PHL

 1
88539-12180

ZZE12#..(16E,18G)..PHL

 1
88625 - THERMISTOR, COOLER, NO.1
88625-60140

ZZE12#..(16E,18G)..PHL

 1
88625-60140

ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-0Z140

ZZE12#..(16E,16G,18G)..PHL

 1
88710-0Z140

ZZE12#..(16E,18G)..PHL

 1
88897K - GROMMET, (FOR COOLER PIPE)
90480-01434

ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL

 1
90480-01434

NZE120,ZZE122;ZZE121..MA,TAIW,TH;ZZE121..(16E,16G)..PHL

 1
Common parts
87193-87101
88891-32100
90099-00968
90099-32129
90099-8C000
90119-06833
90159-60213
90159-60383
90179-06314
90480-01405
