ZZE121L-GEMNKM (2001)

Toyota Corolla (Asia/India)

Production Jul 2001 - Feb 2008
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0603- )ZZE122..TAIW ; (0605- )16E,18G..PHL,VN

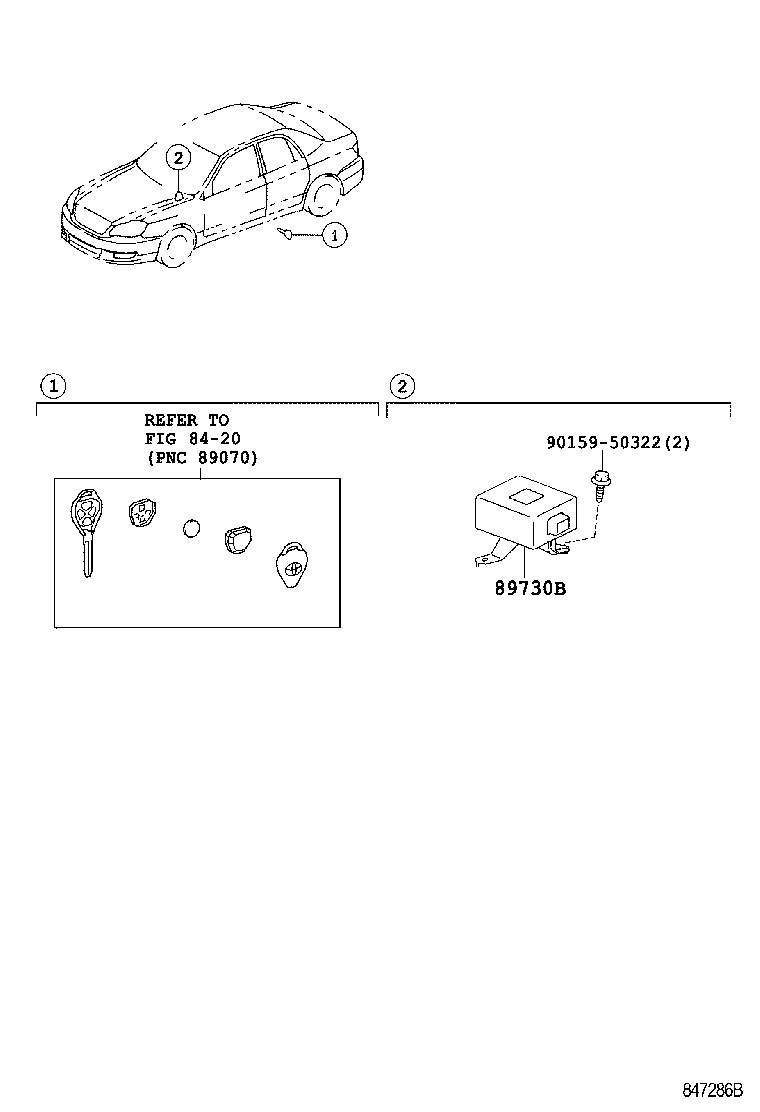

Click highlighted areas on diagram

diagram 8420 89730B 9015950322
Part # Description Qty Price
89730B - COMPUTER ASSY, THEFT WARNING
89730-02090

ZZE12#..(16E,18G)..PHL

 1
Common parts
90159-50322
Linked diagrams
8420
