ZZE121L-GEMNKM (2001)

Toyota Corolla (Asia/India)

Production Jul 2001 - Feb 2008
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0103-0603)IDN,TAIW,TH,VN ; (0107-0605)MA,PHL ;(0301- )IND

Click highlighted areas on diagram

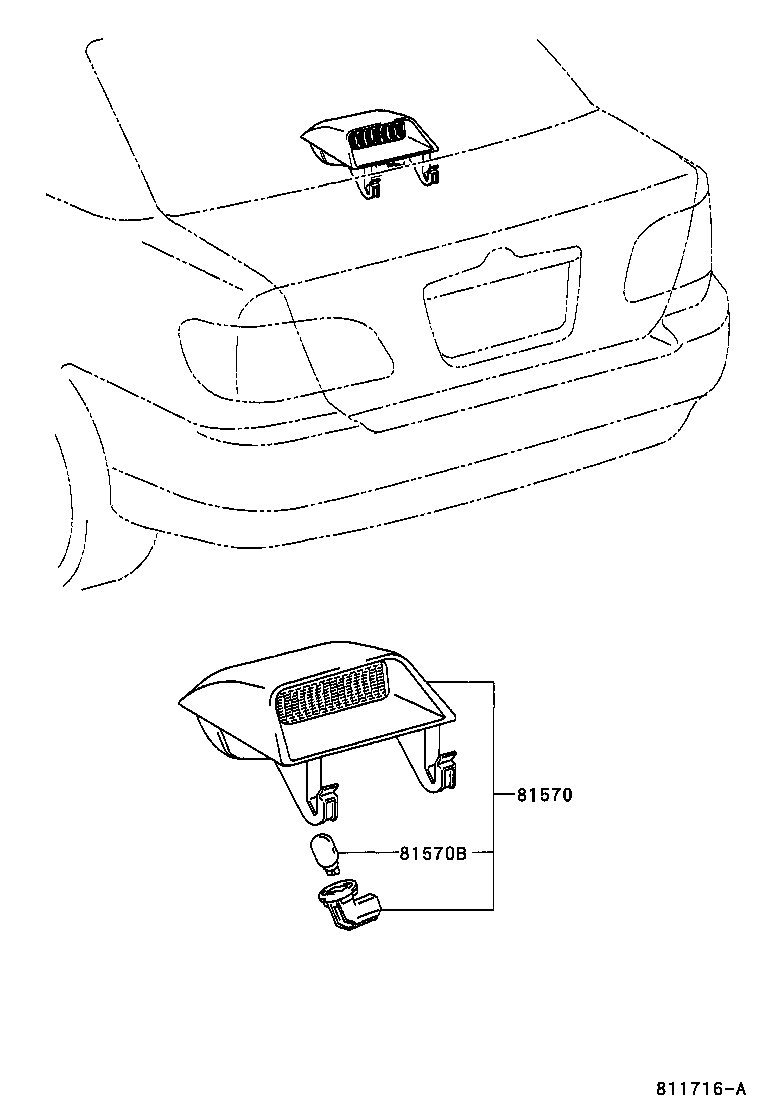

diagram 81570 81570B
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-02050B0

ZZE121..16G,16J;ZZE12#..LHD..(16E,18G)

STONE,TRIM1#

 1
81570-02050B0

ZZE121..16

STONE,TRIM1#

 1
81570-02050B1

ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL

DK.GRAY,TRIM1#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059

ZZE12#..16E,16G,16J,18E,18G,18J

12V 16W

 1
90981-11059

ZZE121..16

12V 16W

 1
90981-11059

ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..(MA,PHL)

12V 16W

 1

(0603-0712)TAIW ; (0603- )IDN,TH,VN ; (0605-)MA,PHL

Click highlighted areas on diagram

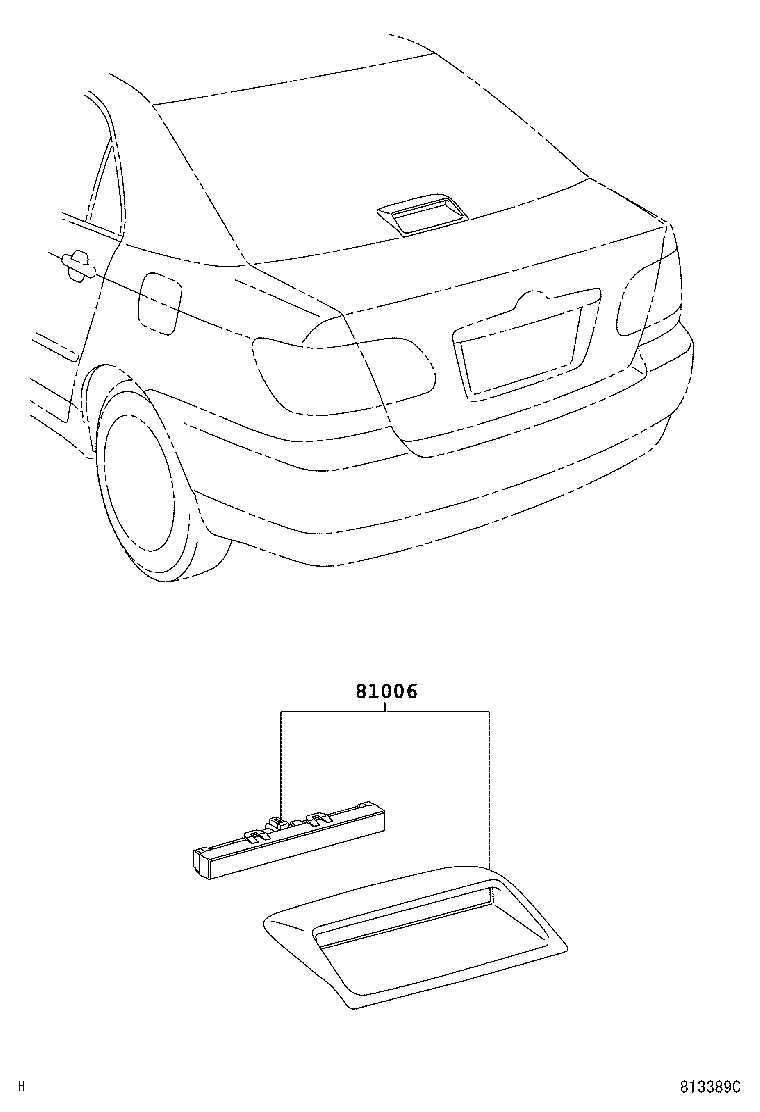

diagram 81006
Part # Description Qty Price
81006 - LAMP SET, STOP CENTER
81006-02040B0

ZZE12#..PHL

DK.GRAY,TRIM1#

 1
