ZZE121L-GEMNKM (2001)

Toyota Corolla (Asia/India)

Production Jul 2001 - Feb 2008
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0103-0310)TAIW ; (0103- )IDN,IND,MA,PHL,TH,VN

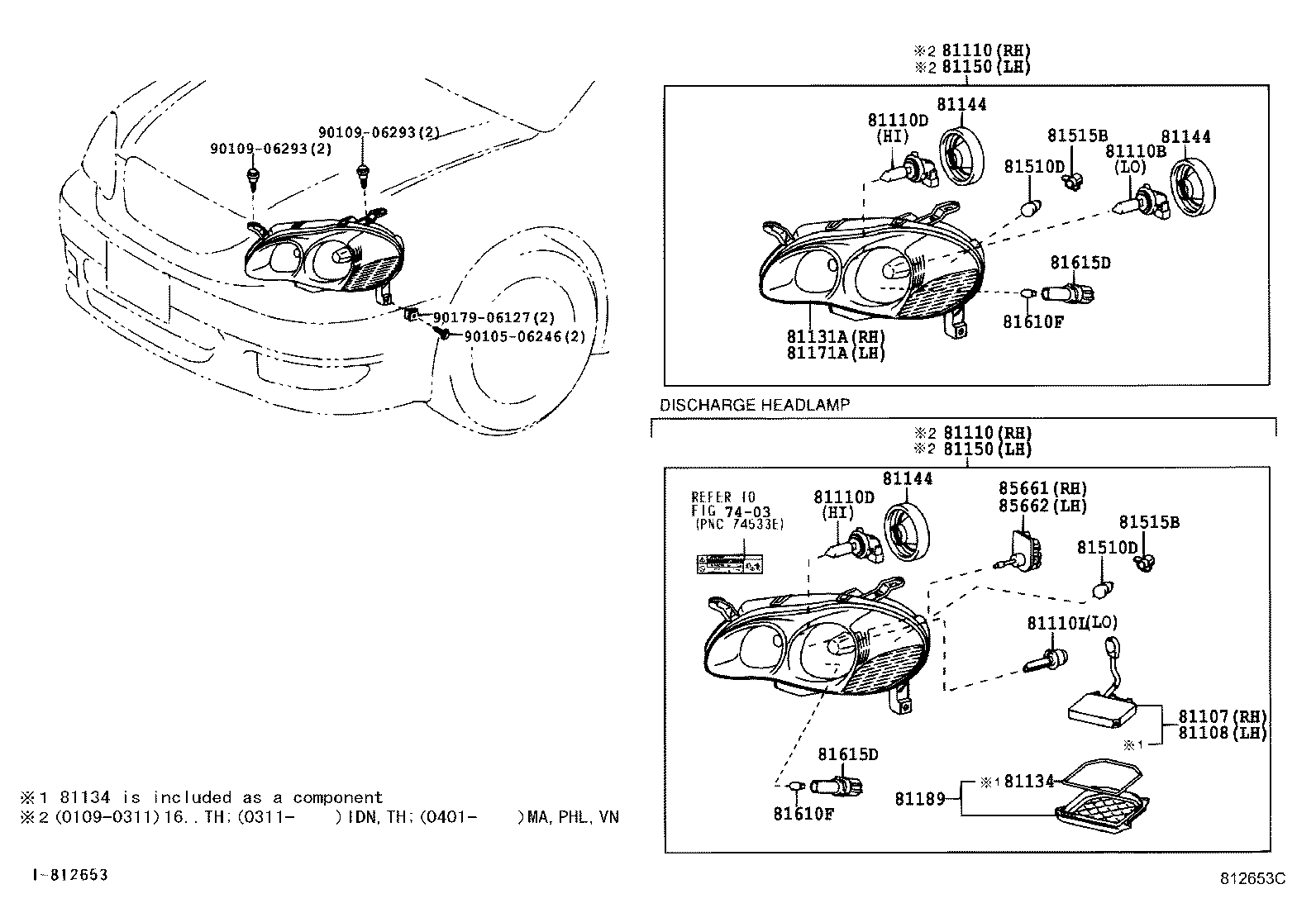

Click highlighted areas on diagram

diagram 7403 81107 81108 81110 81110 81110B 81110D 81110D 81110L 81131A 81134 81144 81144 81144 81150 81150 81171A 81189 81510D 81510D 81515B 81515B 81610F 81610F 81615D 81615D 85661 85662 9010506246 9010906293 9010906293 9017906127
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-02261

ZZE121..16

 1
81110-02260

ZZE121..16

 1
81110-02261

ZZE121..16

 1
81110 - HEADLAMP ASSY, RH
81110-02261

ZZE121..16

 1
81110-02260

ZZE121..16

 1
81110-02261

ZZE121..16

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13047

ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL

12V 51W,HALOGEN

 2
81131A - UNIT, HEADLAMP, RH
81130-02131

NZE120,ZZE12#..PHL,VN

 1
81130-02130

NZE120,ZZE12#..PHL,VN

 1
81130-02310

ZZE121..PHL

 1
81130-02121

ZZE121..16

 1
81144 - COVER, HEADLAMP, NO.1
90069-81016

ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL

 4
81144 - COVER, HEADLAMP, NO.1
90069-81016

ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL

 4
81144 - COVER, HEADLAMP, NO.1
90069-81016

ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL

 4
81150 - HEADLAMP ASSY, LH
81150-02271

ZZE121..16

 1
81150-02271

ZZE121..16

 1
81150-02270

ZZE121..16

 1
81150 - HEADLAMP ASSY, LH
81150-02271

ZZE121..16

 1
81150-02271

ZZE121..16

 1
81150-02270

ZZE121..16

 1
81171A - UNIT, HEADLAMP, LH
81170-02121

NZE120,ZZE12#..PHL,VN

 1
81170-02300

ZZE121..PHL

 1
81170-02120

NZE120,ZZE12#..PHL,VN

 1
81170-02111

ZZE121..16

 1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15009

ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL

12V 21W,AMBER

 2
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15009

ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60006

ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60006

ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL

12V 5W

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60004

ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60004

ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL

 2
Common parts
90105-06246
90109-06293
90179-06127
Linked diagrams
7403
