Toyota Corolla (asia/india) ZZE121 FRONT SEAT & SEAT TRACK

ZZE121L-GEMNKM (2001)

Toyota Corolla (Asia/India)

Production Jul 2001 - Feb 2008

Engine 3ZZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

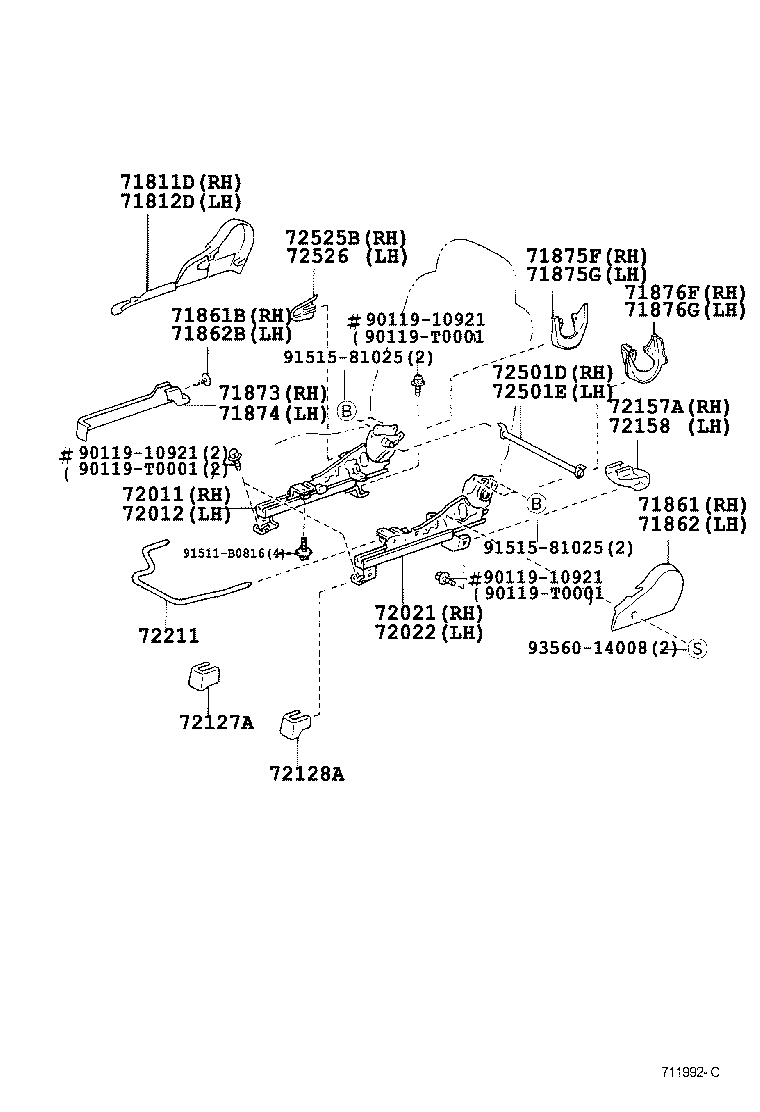

ILLUST NO. 2 OF 2(0103-0301) ; (0301-0310)IDN,MA,PHL,TAIW,TH,VN ;(0310-0311)IDN,MA,PHL,TH,VN ; (031

Click highlighted areas on diagram

NORMAL ADJUSTER

Part #	Description	Period	Qty
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-02060B3	ZZE12#..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
71811-0A010B3	ZZE12#..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02060B0	ZZE121..PHL STONE,TRIM1#,TAIWAN SPEC	03/2001 - 01/2004	1
71812-0A010B2	ZZE121..PHL STONE,TRIM1#,THAILAND SPEC	03/2001 - 01/2004	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-02040B2	ZZE12#..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
71861-0A010B3	ZZE12#..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-07161B3	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
90467-07161B2	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0A010B2	ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J STONE,TRIM1#,THAILAND SPEC	03/2001 - 03/2004	1
71862-02030B0	ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J STONE,TRIM1#,TAIWAN SPEC	03/2001 - 03/2004	1
71862-02030B2	ZZE12#..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
71862-0A010B3	ZZE12#..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
90467-07161B3	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
90467-07161B2	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-02010B0	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
71873-02010B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-02010B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71874-02010B0	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-06060B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-06060B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-06060B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-06060B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-02070	ZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)	03/2001 - 03/2004	1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-02081	ZZE122..VN;ZZE121..16J..TAIW;ZZE121..(16E,16G)..PHL	03/2001 - 03/2004	1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-02070	ZZE121..16,16G,16J;NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)	03/2001 - 03/2004	1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-02080	ZZE122..VN;ZZE121..16J..TAIW;ZZE121..(16E,16G)..PHL	03/2001 - 03/2004	1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-02020B0	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
72127-02020B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-02020B0	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
72127-02020B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-02030B0	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
72157-02030B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-02030B0	ZZE12#..LHD..(16E,18G);NZE120,ZZE121..16,16G,16J,J STONE,TRIM1#	03/2001 - 03/2004	1
72158-02030B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-02020	ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL	10/2003 - 02/2008	2
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-02030	ZZE121..16J..TAIW;NZE120,ZZE12#..IDN,MA,PHL,TH,VN	03/2001 - 03/2004	1
72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH
72501-02030	ZZE121..MA,PHL,TH;ZZE121..16J..TAIW;NZE120,ZZE122..IDN,MA,TH,VN	03/2001 - 03/2004	1
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010S1	ZZE12#..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
72525-0A010B3	ZZE12#..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010S0	ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J STONE,TRIM1#,TAIWAN SPEC	03/2001 - 03/2004	1
72526-0A010B2	ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J STONE,TRIM1#,THAILAND SPEC	03/2001 - 03/2004	1
72526-16010S1	ZZE121..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
72526-0A010B3	ZZE121..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
Common parts
90119-10921
90119-T0001
91511-B0816
91515-81025
93560-14008

(0301- )IND ; (0310- )TAIW ; (0311- )IDN,MA,PHL,TH,VN

Click highlighted areas on diagram

LH SEAT

Part #	Description	Period	Qty
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-02050	ZZE121..16E..PHL	10/2003 - 02/2008	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-02P30	ZZE121..16	11/2003 - 11/2004	1
71072-02350B4	ZZE121..(16E,16G)..PHL STONE,TRIM1#	07/2001 - 01/2004	1
71072-02P30B0	ZZE121..16 MD.GRAY,TRIM1#	11/2004 - 01/2008	1
71072-02760B0	ZZE121..16E..PHL MD.GRAY,TRIM1#	01/2004 - 02/2008	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-02570B1	ZZE121..16E..PHL STONE,TRIM1#	07/2001 - 01/2004	1
71074-02220B2	ZZE121..16 MD.GRAY,TRIM1#	11/2003 - 10/2004	1
71074-02B60B0	ZZE121..16E..PHL MD.GRAY,TRIM1#	01/2004 - 10/2004	1
71074-02221B3	ZZE121..16 MD.GRAY,TRIM1#	11/2004 - 01/2008	1
71074-02B61B1	ZZE121..16E..PHL MD.GRAY,TRIM1#	11/2004 - 02/2008	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-02610B0	ZZE12#..(16E,18G)..PHL ***,GRAY,TRIM1#	01/2004 - 11/2004	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-02A70B0	ZZE121..16 ***,GRAY,TRIM1#	11/2003 - 10/2004	1
71440-02560B1	ZZE121..16E..PHL STONE,TRIM1#	07/2001 - 01/2004	1
71440-02B40B0	ZZE121..16E..PHL ***,GRAY,TRIM1#	01/2004 - 10/2004	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-02090	ZZE122..VN;ZZE121..16J..TAIW;ZZE121..(16E,16G)..PHL	03/2001 - 03/2004	1
71511-02090	ZZE12#..16E,18E,18G	03/2001 - 05/2001	1
71511-02090	ZZE121..16E..PHL	10/2003 - 02/2008	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-02060	ZZE122..VN;ZZE121..(16E,16G)..PHL	07/2001 - 03/2004	1
71552-02060	ZZE121..16E..PHL LEATHER SEAT	01/2004 - 02/2008	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-02060	ZZE12#..(16E,16G,18G)..(PHL,VN)	03/2001 - 03/2004	1
71640-02141	ZZE121..16E..PHL	11/2004 - 02/2008	1
71640-02140	ZZE12#..(16E,18G)..(PHL,VN)	01/2004 - 10/2004	1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02060B0	ZZE121..PHL STONE,TRIM1#,TAIWAN SPEC	03/2001 - 01/2004	1
71812-0A010B2	ZZE121..PHL STONE,TRIM1#,THAILAND SPEC	03/2001 - 01/2004	1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0A010B2	ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J STONE,TRIM1#,THAILAND SPEC	03/2001 - 03/2004	1
71862-02030B0	ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J STONE,TRIM1#,TAIWAN SPEC	03/2001 - 03/2004	1
71862-02030B2	ZZE12#..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
71862-0A010B3	ZZE12#..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
71862B - CLIP(FOR FRONT SEAT SHIELD, LH)
90467-07161B3	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
90467-07161B2	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-02010B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71874-02010B0	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-06060B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-06060B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71910A - HEADREST ASSY, FRONT SEAT
71910-02220B4	ZZE121..(16E,16G)..PHL STONE,TRIM1#	07/2001 - 01/2004	2
71910-02180B2	ZZE121..16 MD.GRAY,TRIM1#	11/2003 - 01/2008	2
71910-02750B0	ZZE121..16E..PHL MD.GRAY,TRIM1#	01/2004 - 02/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-20130B2	ZZE12#..(16E,16G,18G)..PHL W(LOCK),THAILAND SPEC,STONE,TRIM1#	07/2001 - 01/2004	2
71931-12040S7	ZZE121..MTM..PHL;ZZE121..(16,16J)..(TAIW,TH);ZZE12#..LHD..ATM..(16E,18E,18G) W/O(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-20130B3	ZZE121..MTM..PHL;ZZE121..(16,16J)..(TAIW,TH);ZZE12#..LHD..ATM..(16E,18E,18G) W(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-02050B1	ZZE121..MTM..PHL;ZZE121..(16,16J)..TH;ZZE12#..ATM..(16E,18G)..PHL W(LOCK),TAIWAN SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-20130B3	ZZE121..16,16J;ZZE12#..LHD..(16E,18E,18G) W(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
71931-02030B1	ZZE121..MTM..PHL;ZZE122..LHD..18G;ZZE121..(16,16J)..TH;ZZE121..ATM..16E..PHL W/O(LOCK),DK.GRAY,TRIM1#	10/2003 - 12/2999	1
71931-12040S7	ZZE121..16,16J;ZZE12#..LHD..(16E,18E,18G) W/O(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
71930-02050B1	ZZE122..PHL,VN;ZZE121..MTM..PHL;ZZE121..(16,16J)..TH;ZZE121..ATM..16E..PHL W(LOCK),TAIWAN SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-20130B2	ZZE12#..(16E,16G,18G)..PHL W(LOCK),THAILAND SPEC,STONE,TRIM1#	07/2001 - 01/2004	2
71931-12040S7	ZZE121..MTM..PHL;ZZE121..(16,16J)..(TAIW,TH);ZZE12#..LHD..ATM..(16E,18E,18G) W/O(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-20130B3	ZZE121..MTM..PHL;ZZE121..(16,16J)..(TAIW,TH);ZZE12#..LHD..ATM..(16E,18E,18G) W(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-02050B1	ZZE121..MTM..PHL;ZZE121..(16,16J)..TH;ZZE12#..ATM..(16E,18G)..PHL W(LOCK),TAIWAN SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-20130B3	ZZE121..16,16J;ZZE12#..LHD..(16E,18E,18G) W(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
71931-02030B1	ZZE121..MTM..PHL;ZZE122..LHD..18G;ZZE121..(16,16J)..TH;ZZE121..ATM..16E..PHL W/O(LOCK),DK.GRAY,TRIM1#	10/2003 - 12/2999	1
71931-12040S7	ZZE121..16,16J;ZZE12#..LHD..(16E,18E,18G) W/O(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
71930-02050B1	ZZE122..PHL,VN;ZZE121..MTM..PHL;ZZE121..(16,16J)..TH;ZZE121..ATM..16E..PHL W(LOCK),TAIWAN SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72127-02020B0	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
72127-02020B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-02030B0	ZZE12#..LHD..(16E,18G);NZE120,ZZE121..16,16G,16J,J STONE,TRIM1#	03/2001 - 03/2004	1
72158-02030B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-02020	ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL	10/2003 - 02/2008	2
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-18010S0	ZZE122..VN;ZZE121..16J..TAIW;ZZE121..(16E,16G)..PHL STONE,TRIM1#,TAIWAN SPEC	03/2001 - 03/2004	1
72457-12030B0	ZZE122..VN;ZZE121..16J..TAIW;ZZE121..(16E,16G)..PHL STONE,TRIM1#,THAILAND SPEC	03/2001 - 03/2004	1
72457-18010S1	ZZE121..16E..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
72457-12030B2	ZZE121..16E..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-16010S0	ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J STONE,TRIM1#,TAIWAN SPEC	03/2001 - 03/2004	1
72526-0A010B2	ZZE121..16E..PHL;NZE120,ZZE122..VN;ZZE121..16,16G,16J STONE,TRIM1#,THAILAND SPEC	03/2001 - 03/2004	1
72526-16010S1	ZZE121..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
72526-0A010B3	ZZE121..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH
72760-12110	ZZE12#..(16E,18G)..PHL	10/2003 - 02/2008	1
72791 - LEVER, LUMBAR SUPPORT
72791-22020P1	ZZE12#..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
90520-01274	ZZE12#..(16E,18G)..PHL	10/2003 - 02/2008	1
Common parts
90119-10921
90119-T0001
90468-18071
90520-01006
91511-B0816
93269-54008
93560-14008
93560-16012

(0301- )IND ; (0310- )TAIW ; (0311- )IDN,MA,PHL,TH,VN

Click highlighted areas on diagram

RH SEAT

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-02040	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL	10/2003 - 02/2008	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-02430B3	ZZE121..(16E,16G)..PHL STONE,TRIM1#	07/2001 - 01/2004	1
71071-02200B2	ZZE121..16 MD.GRAY,TRIM1#	11/2003 - 01/2008	1
71071-02B40B0	ZZE121..16E..PHL MD.GRAY,TRIM1#	01/2004 - 02/2008	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-02520B3	ZZE121..(16E,16G)..PHL STONE,TRIM1#	07/2001 - 01/2004	1
71074-02220B2	ZZE121..16 MD.GRAY,TRIM1#	11/2003 - 10/2004	1
71073-02A50B0	ZZE12#..(16E,18G)..PHL MD.GRAY,TRIM1#	01/2004 - 10/2004	1
71074-02221B3	ZZE121..16 MD.GRAY,TRIM1#	11/2004 - 01/2008	1
71073-02A51B1	ZZE121..16E..PHL MD.GRAY,TRIM1#	11/2004 - 02/2008	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-02490A0	ZZE12#..16E,18E,18G IVORY,TRIM0#	03/2001 - 05/2001	1
71410-02460B2	ZZE121..16 ***,GRAY,TRIM1#	11/2003 - 11/2004	1
71410-02A40B0	ZZE12#..(16E,18G)..PHL ***,GRAY,TRIM1#	01/2004 - 11/2004	1
71410-02490B1	ZZE12#..16E,18E,18G STONE,TRIM1#	03/2001 - 05/2001	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-02E60B0	ZZE121..16 ***,GRAY,TRIM1#	11/2003 - 10/2004	1
71430-02490B3	ZZE121..(16E,16G)..PHL STONE,TRIM1#	07/2001 - 01/2004	1
71430-02D40B0	ZZE12#..(16E,18G)..PHL ***,GRAY,TRIM1#	01/2004 - 10/2004	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-02100	ZZE12#..16E,18E,18G	03/2001 - 05/2001	1
71511-02100	ZZE121..(16E,16G)..PHL;ZZE121..(16,16J)..(TAIW,TH);ZZE122..MTM..(18G,18J)..(IND,VN)	03/2001 - 08/2005	1
71511-02100	ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL	10/2003 - 02/2008	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02100	ZZE121..16E..PHL;ZZE122..(18E,18G)..(IND,VN);ZZE12#..(16,16G,16J,18J)..(IDN,PHL,TAIW,TH)	03/2001 - 08/2005	1
71551-02100	ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL	10/2003 - 02/2008	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-02050	ZZE12#..(16E,18G)..(PHL,VN);ZZE12#..(16,16G,16J,18J)..(IDN,PHL,TAIW,TH)	03/2001 - 03/2004	1
71630-02231	ZZE12#..PHL	11/2004 - 02/2008	1
71630-02230	ZZE122..PHL,VN;ZZE121..MTM..PHL;ZZE121..(16,16J)..TH;ZZE121..ATM..16E..PHL	11/2003 - 10/2004	1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-02060B3	ZZE12#..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
71811-0A010B3	ZZE12#..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-02040B2	ZZE12#..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
71861-0A010B3	ZZE12#..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
71861B - CLIP(FOR FRONT SEAT SHIELD, RH)
90467-07161B3	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
90467-07161B2	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-02010B0	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
71873-02010B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-06060B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-06060B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
71910A - HEADREST ASSY, FRONT SEAT
71910-02220B4	ZZE121..(16E,16G)..PHL STONE,TRIM1#	07/2001 - 01/2004	2
71910-02180B2	ZZE121..16 MD.GRAY,TRIM1#	11/2003 - 01/2008	2
71910-02750B0	ZZE121..16E..PHL MD.GRAY,TRIM1#	01/2004 - 02/2008	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-20130B2	ZZE12#..(16E,16G,18G)..PHL W(LOCK),THAILAND SPEC,STONE,TRIM1#	07/2001 - 01/2004	2
71931-12040S7	ZZE121..MTM..PHL;ZZE121..(16,16J)..(TAIW,TH);ZZE12#..LHD..ATM..(16E,18E,18G) W/O(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-20130B3	ZZE121..MTM..PHL;ZZE121..(16,16J)..(TAIW,TH);ZZE12#..LHD..ATM..(16E,18E,18G) W(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-02050B1	ZZE121..MTM..PHL;ZZE121..(16,16J)..TH;ZZE12#..ATM..(16E,18G)..PHL W(LOCK),TAIWAN SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-20130B3	ZZE121..16,16J;ZZE12#..LHD..(16E,18E,18G) W(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
71931-02030B1	ZZE121..MTM..PHL;ZZE122..LHD..18G;ZZE121..(16,16J)..TH;ZZE121..ATM..16E..PHL W/O(LOCK),DK.GRAY,TRIM1#	10/2003 - 12/2999	1
71931-12040S7	ZZE121..16,16J;ZZE12#..LHD..(16E,18E,18G) W/O(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
71930-02050B1	ZZE122..PHL,VN;ZZE121..MTM..PHL;ZZE121..(16,16J)..TH;ZZE121..ATM..16E..PHL W(LOCK),TAIWAN SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-20130B2	ZZE12#..(16E,16G,18G)..PHL W(LOCK),THAILAND SPEC,STONE,TRIM1#	07/2001 - 01/2004	2
71931-12040S7	ZZE121..MTM..PHL;ZZE121..(16,16J)..(TAIW,TH);ZZE12#..LHD..ATM..(16E,18E,18G) W/O(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-20130B3	ZZE121..MTM..PHL;ZZE121..(16,16J)..(TAIW,TH);ZZE12#..LHD..ATM..(16E,18E,18G) W(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-02050B1	ZZE121..MTM..PHL;ZZE121..(16,16J)..TH;ZZE12#..ATM..(16E,18G)..PHL W(LOCK),TAIWAN SPEC,DK.GRAY,TRIM1#	01/2004 - 02/2004	2
71930-20130B3	ZZE121..16,16J;ZZE12#..LHD..(16E,18E,18G) W(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
71931-02030B1	ZZE121..MTM..PHL;ZZE122..LHD..18G;ZZE121..(16,16J)..TH;ZZE121..ATM..16E..PHL W/O(LOCK),DK.GRAY,TRIM1#	10/2003 - 12/2999	1
71931-12040S7	ZZE121..16,16J;ZZE12#..LHD..(16E,18E,18G) W/O(LOCK),THAILAND SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
71930-02050B1	ZZE122..PHL,VN;ZZE121..MTM..PHL;ZZE121..(16,16J)..TH;ZZE121..ATM..16E..PHL W(LOCK),TAIWAN SPEC,DK.GRAY,TRIM1#	02/2004 - 12/2999	2
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-02020B0	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
72127-02020B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-02030B0	ZZE12#..PHL STONE,TRIM1#	03/2001 - 01/2004	1
72157-02030B1	ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-02020	ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL	10/2003 - 02/2008	2
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-18010S0	ZZE122..VN;ZZE121..16J..TAIW;ZZE121..(16E,16G)..PHL STONE,TRIM1#,TAIWAN SPEC	03/2001 - 03/2004	1
72457-12030B0	ZZE122..VN;ZZE121..16J..TAIW;ZZE121..(16E,16G)..PHL STONE,TRIM1#,THAILAND SPEC	03/2001 - 03/2004	1
72457-18010S1	ZZE121..16E..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
72457-12030B2	ZZE121..16E..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010S1	ZZE12#..PHL DK.GRAY,TRIM1#,TAIWAN SPEC	01/2004 - 02/2008	1
72525-0A010B3	ZZE12#..PHL DK.GRAY,TRIM1#,THAILAND SPEC	01/2004 - 02/2008	1
72791 - LEVER, LUMBAR SUPPORT
72791-22020P1	ZZE12#..(16E,18G)..PHL DK.GRAY,TRIM1#	10/2003 - 02/2008	1
72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER)
90520-01274	ZZE12#..(16E,18G)..PHL	10/2003 - 02/2008	1
Common parts
90119-10921
90119-T0001
90468-18071
90520-01006
91511-B0816
93269-54008
93560-14008
93560-15010
93560-16012

ZZE121L-GEMNKM (2001)

ILLUST NO. 2 OF 2(0103-0301) ; (0301-0310)IDN,MA,PHL,TAIW,TH,VN ;(0310-0311)IDN,MA,PHL,TH,VN ; (031

(0301- )IND ; (0310- )TAIW ; (0311- )IDN,MA,PHL,TH,VN

(0301- )IND ; (0310- )TAIW ; (0311- )IDN,MA,PHL,TH,VN

Part Price Details
