ZZE121L-GEMNKM (2001)
Toyota Corolla (Asia/India)

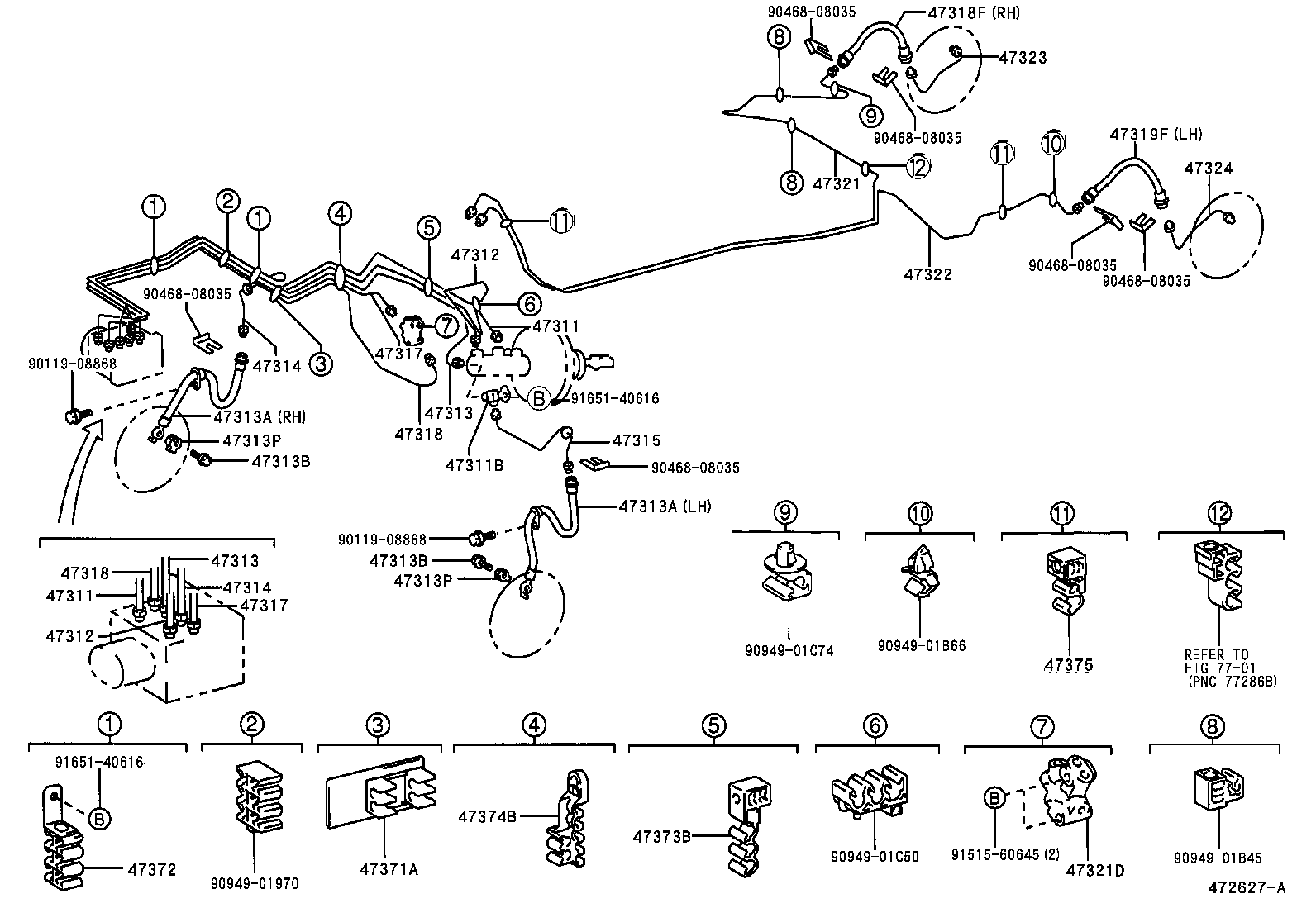

ILLUST NO. 1 OF 2(0107- )16E..PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12870 |
ZZE121..16 |
1 | ||
| 47311-12810 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47311-02360 |
ZZE121..16 |
1 | ||
| 47311-12810 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12870 |
ZZE121..16 |
1 | ||
| 47311-12810 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47311-02360 |
ZZE121..16 |
1 | ||
| 47311-12810 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90904-12051 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 90904-12051 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12430 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47312-02230 |
ZZE121..16 |
1 | ||
| 47312-12430 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12430 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47312-02230 |
ZZE121..16 |
1 | ||
| 47312-12430 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02300 |
ZZE121..16 |
1 | ||
| 47313-12620 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47313-12620 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02300 |
ZZE121..16 |
1 | ||
| 47313-12620 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47313-12620 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94108 |
ZZE12#..PHL RH |
1 | ||
| 90080-94108 |
ZZE12#..PHL RH |
1 | ||
| 90080-94109 |
ZZE12#..PHL LH |
1 | ||
| 90080-94109 |
ZZE12#..PHL LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94108 |
ZZE12#..PHL RH |
1 | ||
| 90080-94108 |
ZZE12#..PHL RH |
1 | ||
| 90080-94109 |
ZZE12#..PHL LH |
1 | ||
| 90080-94109 |
ZZE12#..PHL LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZZE12#..MA,PHL |
2 | ||
| 90401-10058 |
ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZZE12#..MA,PHL |
2 | ||
| 90401-10058 |
ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL |
2 | ||
| 47389-50020 |
ZZE12#..MA,PHL |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL |
2 | ||
| 47389-50020 |
ZZE12#..MA,PHL |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12440 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47314-02340 |
ZZE121..16 |
1 | ||
| 47314-12440 |
ZZE12#..(16E,16G,18G)..(PHL,VN) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12440 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47314-02340 |
ZZE121..16 |
1 | ||
| 47314-12440 |
ZZE12#..(16E,16G,18G)..(PHL,VN) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12510 |
ZZE12#..PHL,VN |
1 | ||
| 47315-12510 |
ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL |
1 | ||
| 47315-02270 |
ZZE121..16 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12220 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47317-12220 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12220 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47317-12220 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12400 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47318-12400 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12400 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47318-12400 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90080-94111 |
ZZE121..(16E,16J)..PHL |
1 | ||
| 90080-94111 |
ZZE121..PHL |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90080-94111 |
ZZE121..PHL |
1 | ||
| 90080-94111 |
ZZE121..(16E,16J)..PHL |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12280 |
ZZE12#..MA,PHL |
1 | ||
| 47321-12280 |
ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10140 |
ZZE12#..(16E,16G,18G)..(MA,PHL) |
1 | ||
| 90412-10140 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12400 |
NZE120,ZZE12# |
1 | ||
| 47322-12400 |
ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-63010 |
ZZE121..(16E,16J)..PHL |
1 | ||
| 47323-63010 |
ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-63010 |
ZZE121..MTM..PHL;ZZE121..ATM..16E..PHL |
1 | ||
| 47324-63010 |
ZZE121..(16E,16J)..PHL |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12230 |
ZZE12#..(16E,16G,18G)..(MA,PHL) |
1 | ||
| 47371-12230 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47374-12050 |
ZZE12#..(16E,16G,18G)..(MA,PHL) |
2 | ||
| 47374-12050 |
ZZE12#..(16E,18G)..PHL |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-52010 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47371-52010 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47372-52010 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47372-52010 |
ZZE12#..(16E,16G,18G)..PHL |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 77299-32030 |
ZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL |
2 | ||
| 77299-32030 |
NZE120,ZZE12# |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90949-01970 | ||||
| 90949-01B45 | ||||
| 90949-01B66 | ||||
| 90949-01C50 | ||||
| 90949-01C74 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7701 | ||||

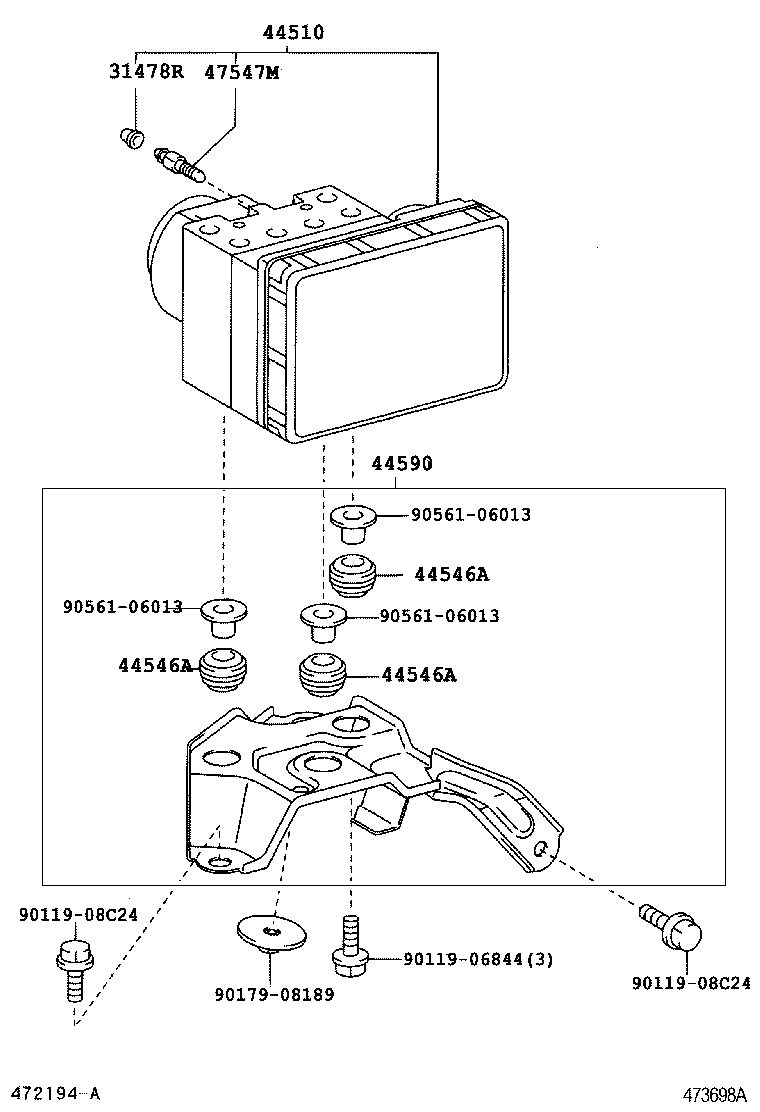

ILLUST NO. 2 OF 2(0103-0211)16E,18E..TAIW ; (0105-0211)16E,16J,18E..TH ; (0107- )16E,16G..MA,PHL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478R - CAP, BLEEDER PLUG(FOR BRAKE ACTUATOR) | ||||
| 31478-30010 |
ZZE122..ATM..18E;ZZE121..ATM..16E..TH;ZZE122..18G..(IDN,PHL,VN);ZZE121..(16E,16G)..(MA,PHL,TAIW) |
1 | ||
| 31478-30010 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-12130 |
ZZE12#..16E,18E |
1 | ||
| 44050-12123 |
ZZE121..(16E,16G)..(MA,PHL) |
1 | ||
| 44050-12122 |
ZZE121..(16E,16G)..(MA,PHL) |
1 | ||
| 44050-12123 |
ZZE121..16E..(MA,PHL) |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
ZZE122..ATM..18E;ZZE121..ATM..16E..TH;ZZE122..18G..(IDN,PHL,VN);ZZE121..(16E,16G)..(MA,PHL,TAIW) |
3 | ||
| 44546-12100 |
ZZE12#..(16E,18G)..PHL |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
ZZE122..ATM..18E;ZZE121..ATM..16E..TH;ZZE122..18G..(IDN,PHL,VN);ZZE121..(16E,16G)..(MA,PHL,TAIW) |
3 | ||
| 44546-12100 |
ZZE12#..(16E,18G)..PHL |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
ZZE122..ATM..18E;ZZE121..ATM..16E..TH;ZZE122..18G..(IDN,PHL,VN);ZZE121..(16E,16G)..(MA,PHL,TAIW) |
3 | ||
| 44546-12100 |
ZZE12#..(16E,18G)..PHL |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-12060 |
ZZE122..PHL;ZZE121..(16E,16G)..(MA,PHL) |
1 | ||
| 44590-12060 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| 47547M - PLUG, BLEEDER(FOR BRAKE ACTUATOR) | ||||
| 47547-22020 |
ZZE122..ATM..18E;ZZE121..ATM..16E..TH;ZZE122..18G..(IDN,PHL,VN);ZZE121..(16E,16G)..(MA,PHL,TAIW) |
1 | ||
| 47547-22020 |
ZZE12#..(16E,18G)..PHL |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-08C24 | ||||
| 90179-08189 | ||||
| 90561-06013 | ||||
