ZZE121L-GEMNKM (2001)

Toyota Corolla (Asia/India)

Production Jul 2001 - Feb 2008
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-0311)1ZZFE..IDN ; (0107-0403)1ZZFE..VN ; (0107- )1ZZFE,3ZZFE..MA,PHL

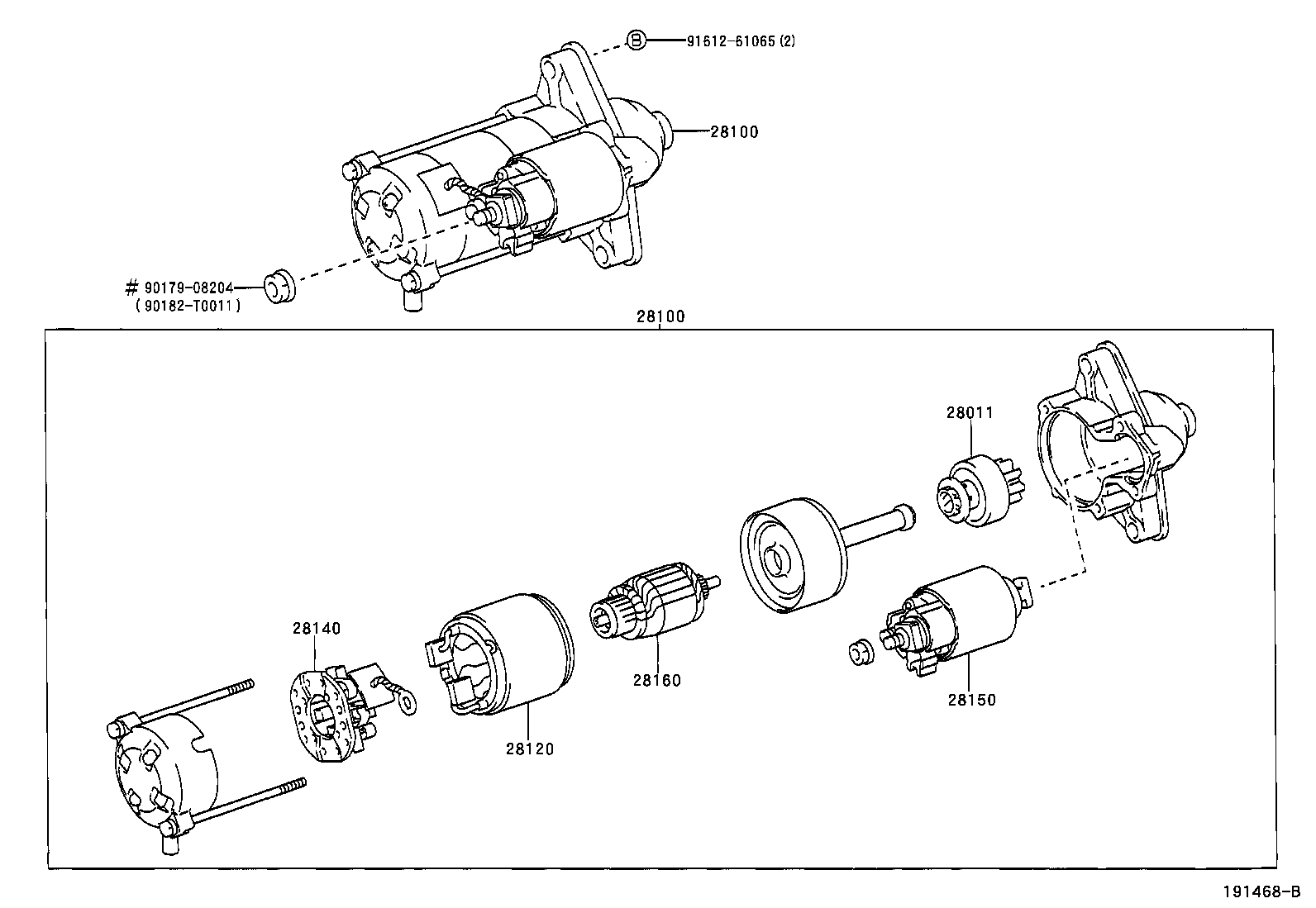

Click highlighted areas on diagram

12V 0.8KW

diagram 28011 28100 28100 28120 28140 28150 28160 9017908204 90182T0011 9161261065
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-70020

1ZZFE,3ZZFE..ZZE12#..MA,PHL,TAIW,TH,VN

 1
28011-70020

3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..PHL;1ZZFE..ZZE122..IDN,PHL,TAIW,TH

 1
28100 - STARTER ASSY
28100-22030

1ZZFE,3ZZFE..ZZE12#..PHL

12V 0.8KW

 1
28100-22030

1ZZFE,3ZZFE..ZZE12#..PHL,VN

12V 0.8KW

 1
28100 - STARTER ASSY
28100-22030

1ZZFE,3ZZFE..ZZE12#..PHL

12V 0.8KW

 1
28100-22030

1ZZFE,3ZZFE..ZZE12#..PHL,VN

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-70020

1ZZFE,3ZZFE..ZZE12#..IND,MA,PHL,TAIW,TH,VN

 1
28120-70020

3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..PHL;1ZZFE..ZZE122..IDN,PHL,TAIW,TH

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-70020

3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..PHL;1ZZFE..ZZE122..IDN,PHL,TAIW,TH

 1
28140-70020

1ZZFE,3ZZFE..ZZE12#..IND,MA,PHL,TAIW,TH,VN

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-70030

1ZZFE,3ZZFE..ZZE12#..MA,PHL,TAIW,TH,VN

 1
28150-22100

1ZZFE,3ZZFE..ZZE12#..PHL

 1
28150-70030

3ZZFE..ZZE121..MTM..PHL;1ZZFE,3ZZFE..ZZE12#..ATM..(16E,18G)..PHL

 1
28160 - ARMATURE ASSY, STARTER
28160-70021

1ZZFE,3ZZFE..ZZE12#..IND,MA,PHL,TAIW,TH,VN

 1
28160-70021

3ZZFE..ZZE121..TAIW,TH;3ZZFE..ZZE121..MTM..PHL;3ZZFE..ZZE121..ATM..16E..PHL;1ZZFE..ZZE122..IDN,PHL,TAIW,TH

 1
Common parts
90179-08204
90182-T0011
91612-61065
