ZWE211L-GEXGBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )8ZRFXE

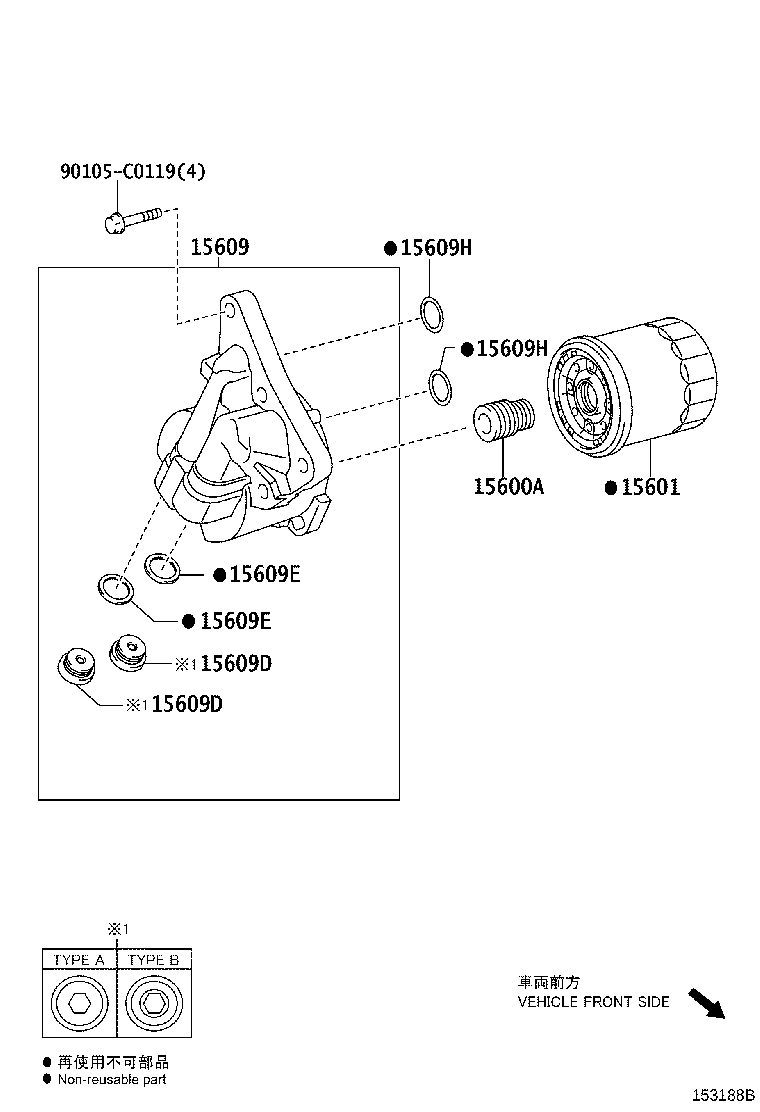

Click highlighted areas on diagram

diagram 15600A 15601 15609 15609D 15609D 15609E 15609E 15609H 15609H 90105C0119
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90904-04006

8ZRFXE..ZWE211

 1
15601 - FILTER SUB-ASSY, OIL
90915-CA003

8ZRFXE..ZWE211

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-0T090

8ZRFXE..ZWE211

(L)

 1
15609-37060

8ZRFXE..ZWE211

(J)

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

8ZRFXE..ZWE211

TYPE B:REFER ILLUST.

 2
90341-20012

8ZRFXE..ZWE211

TYPE A:REFER ILLUST.

 2
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

8ZRFXE..ZWE211

TYPE B:REFER ILLUST.

 2
90341-20012

8ZRFXE..ZWE211

TYPE A:REFER ILLUST.

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20004

8ZRFXE..ZWE211

TMC

 2
90430-20018

8ZRFXE..ZWE211

AISIN

 2
15609E - GASKET, W/HEAD STRAIGHT SCREW PLUG
90430-20004

8ZRFXE..ZWE211

TMC

 2
90430-20018

8ZRFXE..ZWE211

AISIN

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
90301-C0033

8ZRFXE..ZWE211

 2
15609H - RING, O(FOR OIL FILTER BRACKET)
90301-C0033

8ZRFXE..ZWE211

 2
Common parts
90105-C0119
