ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211

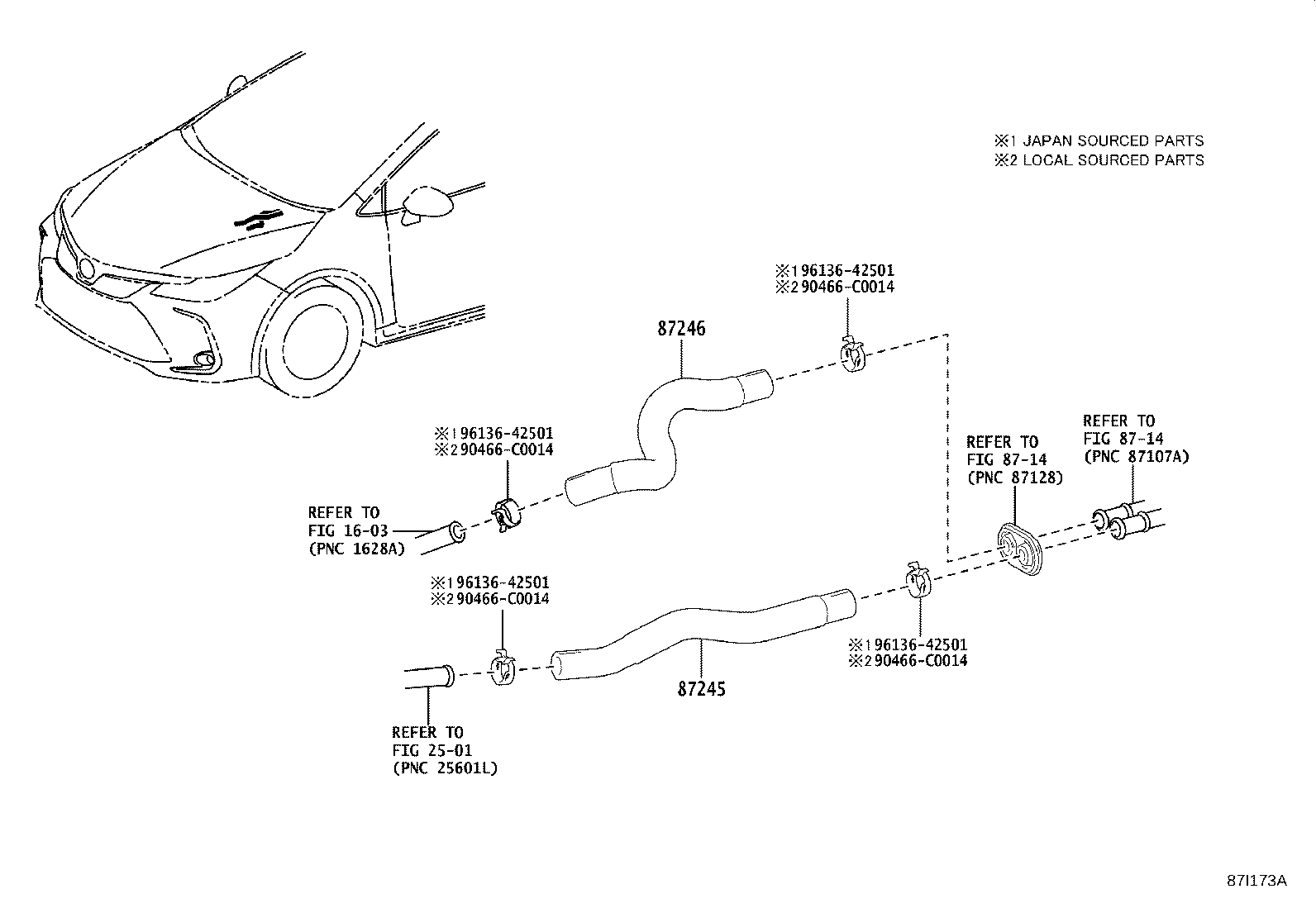

Click highlighted areas on diagram

diagram 1603 2501 8714 8714 87245 87246 90466C0014 90466C0014 90466C0014 90466C0014 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-02U90

ZWE211

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-02V00

ZWE211

 1
Common parts
90466-C0014
96136-42501
Linked diagrams
1603
2501
8714
