ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211

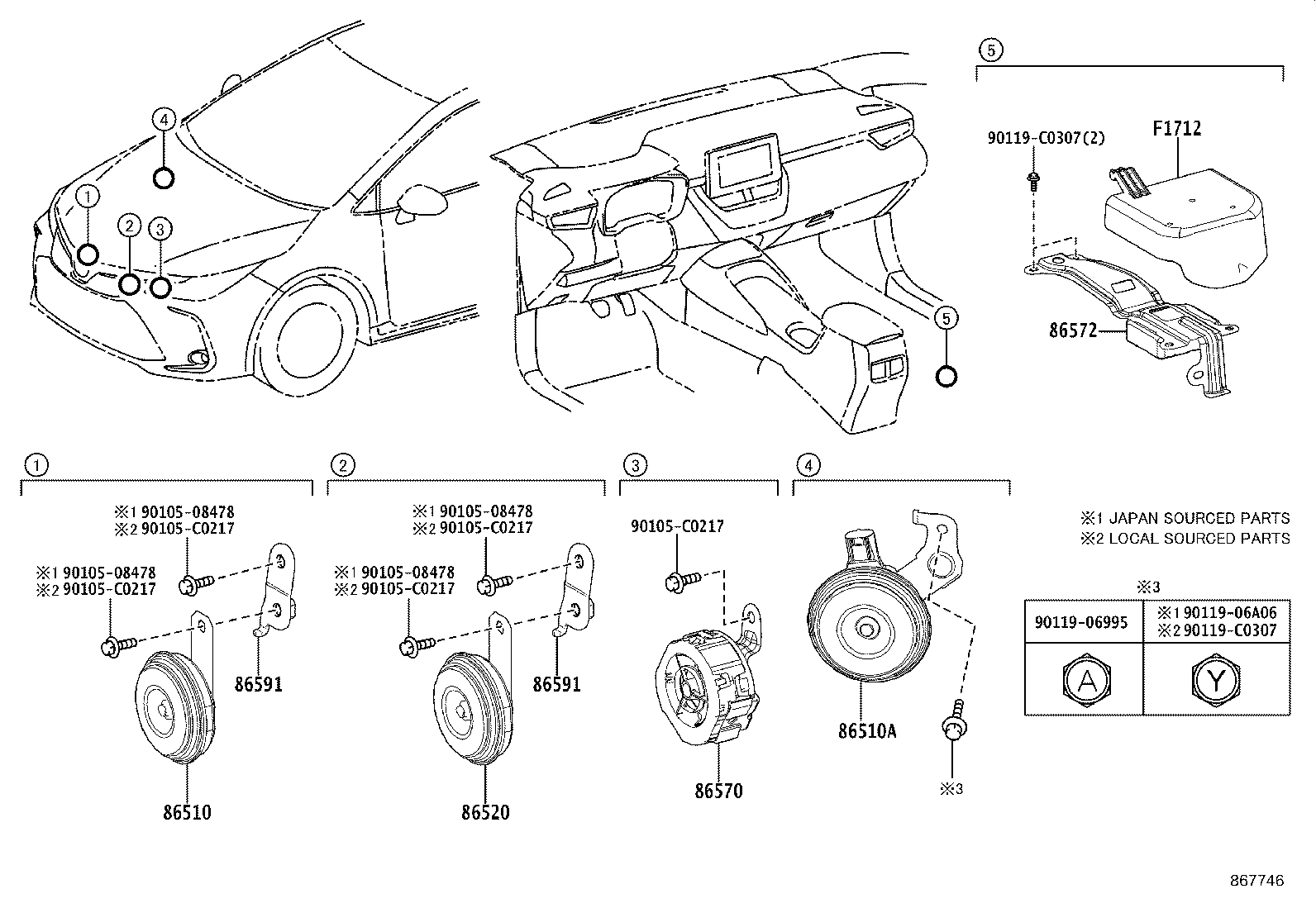

Click highlighted areas on diagram

diagram 86510 86510A 86520 86570 86572 86591 86591 9010508478 9010508478 9010508478 9010508478 90105C0217 90105C0217 90105C0217 90105C0217 90105C0217 9011906995 9011906A06 90119C0307 90119C0307 F1712
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-0R041

ZWE211;NRE210..ENTRY,MID

 1
86510A - HORN ASSY, SECURITY
86560-02190

ZWE211..HI,MID

 1
86520 - HORN ASSY, LOW PITCHED
86520-0R041

ZWE211;NRE210..ENTRY,MID

 1
86570 - SPEAKER ASSY, VEHICLE APPROACHING
86570-12030

ZWE211

 1
86570-02030

ZWE211

 1
86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER
86572-12080

ZWE211

 1
86572-02040

ZWE211

 1
86591 - BRACKET, HORN
86591-02060

NRE210,ZWE211

 1
86591-02060

NRE210,ZWE211

 2
86591 - BRACKET, HORN
86591-02060

NRE210,ZWE211

 1
86591-02060

NRE210,ZWE211

 2
F1712 - COVER, VEHICLE APPROACHING SPEAKER CONTROLLER
F1712-02010

ZWE211

 1
Common parts
90105-08478
90105-C0217
90119-06995
90119-06A06
90119-C0307
