ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211

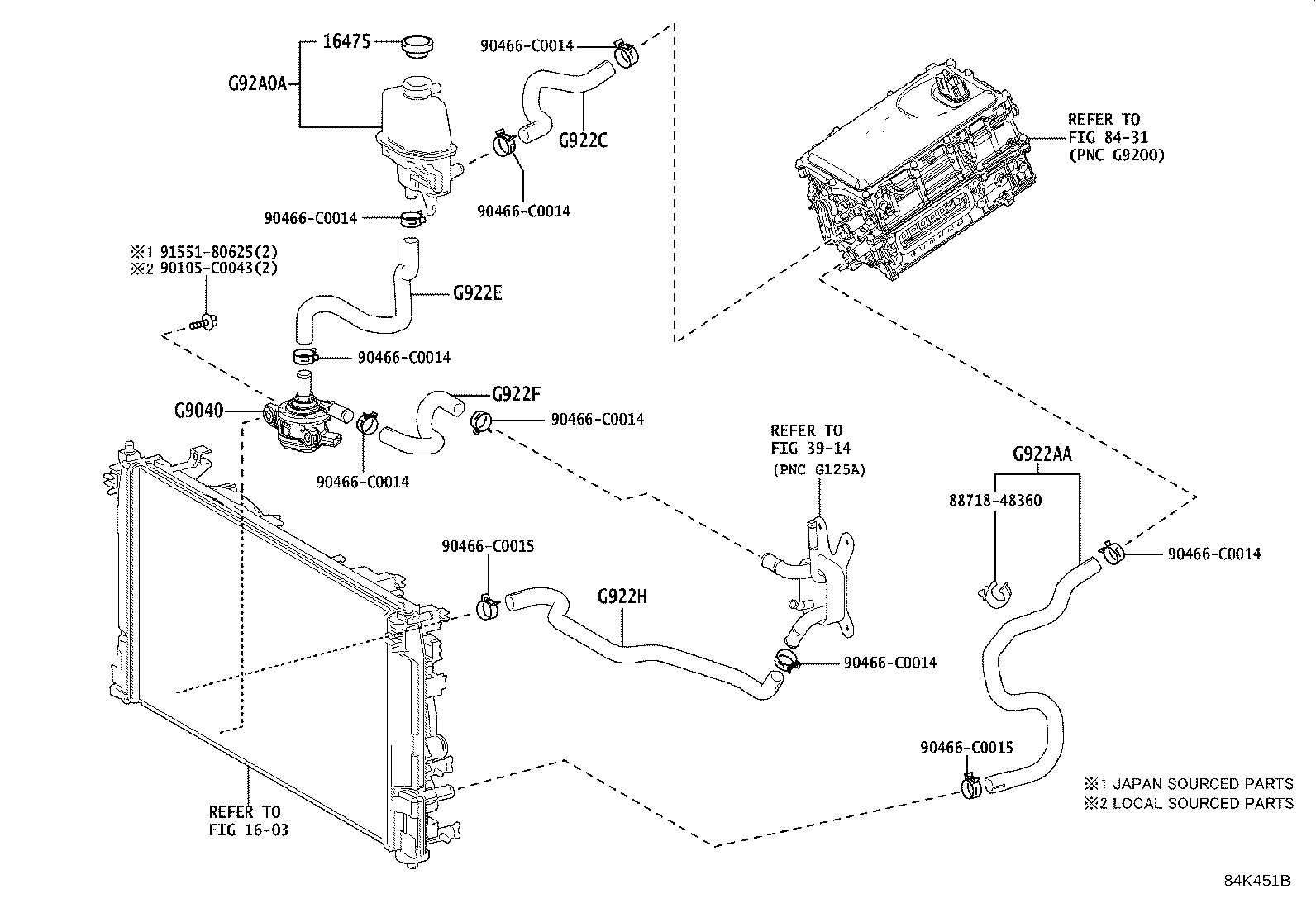

Click highlighted areas on diagram

diagram 1603 16475 3914 8431 8871848360 90105C0043 90466C0014 90466C0014 90466C0014 90466C0014 90466C0014 90466C0014 90466C0014 90466C0014 90466C0015 90466C0015 9155180625 G9040 G922AA G922C G922E G922F G922H G92A0A
Part # Description Qty Price
16475 - CAP, RESERVE TANK
16475-28140

8ZRFXE..ZWE211

 1
16475-0T081

8ZRFXE..ZWE211

LOCAL SOURCED PARTS

 1
16475-28140

8ZRFXE..ZWE211

JAPAN SOURCED PARTS

 1
G9040 - INVERTER WATER PUMP ASSY(W/MOTOR)
G9040-02030

ZWE211

LOCAL SOURCED PARTS

 1
G9040-47040

ZWE211

JAPAN SOURCED PARTS

 1
G9040-47040

ZWE211

 1
G922AA - HOSE, INVERTER COOLING INLET, NO.1
G922A-02060

ZWE211

 1
G922C - HOSE, INVERTER COOLING OUTLET, NO.1
G922C-02060

ZWE211

 1
G922E - HOSE, HYBRID WATER PUMP INLET
G922E-02060

ZWE211

 1
G922F - HOSE, HYBRID WATER PUMP OUTLET, NO.1
G922F-02060

ZWE211

 1
G922H - HOSE, HYBRID RADIATOR INLET
G922H-02060

ZWE211

 1
G92A0A - TANK ASSY, INVERTER RESERVE
G910G-02090

ZWE211

 1
G91H0-02110

ZWE211

 1
Common parts
88718-48360
90105-C0043
90466-C0014
90466-C0015
91551-80625
Linked diagrams
1603
3914
8431
