ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999

Engine 8ZRFXE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

(1908- )ZWE211

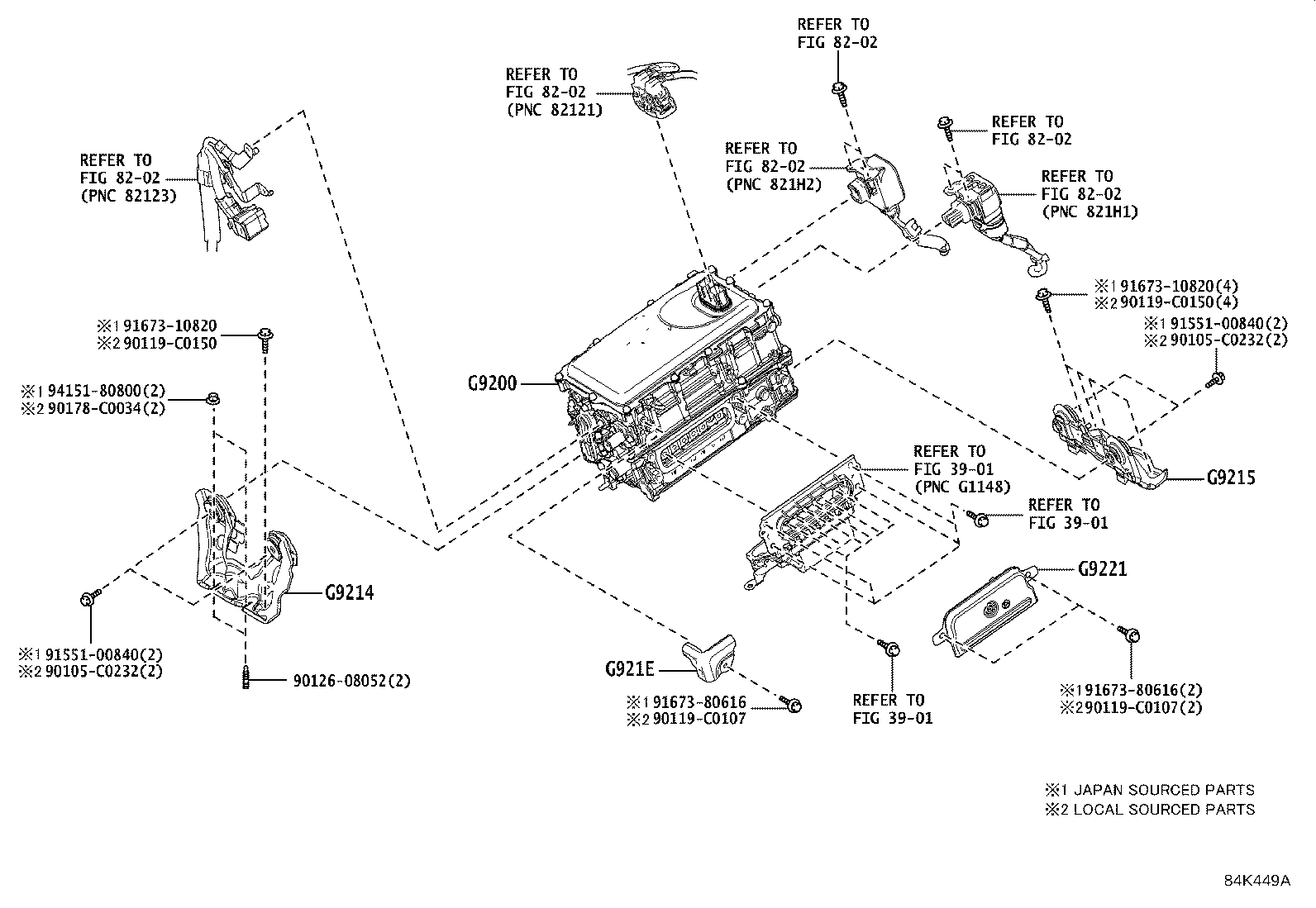

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
G9200 - INVERTER ASSY, W/CONVERTER
G92A0-02030	ZWE211	08/2019 - 06/2021	1
G9214 - BRACKET, INVERTER, NO.1
G9214-47070	ZWE211	08/2019 - 09/2020	1
G9214-47070	ZWE211 JAPAN SOURCED PARTS	09/2020 - 12/2999	1
G9214-02070	ZWE211 LOCAL SOURCED PARTS	09/2020 - 12/2999	1
G9215 - BRACKET, INVERTER, NO.2
G9215-02060	ZWE211 LOCAL SOURCED PARTS	09/2020 - 12/2999	1
G9215-47050	ZWE211 JAPAN SOURCED PARTS	09/2020 - 12/2999	1
G9215-47050	ZWE211	08/2019 - 09/2020	1
G921E - PROTECTOR, INVERTER
G921E-07010	ZWE211	08/2019 - 12/2999	1
G9221 - COVER, INVERTER
G9022-47050	ZWE211	08/2019 - 12/2999	1
Common parts
90105-C0232
90119-C0107
90119-C0150
90126-08052
90178-C0034
91551-00840
91673-10820
91673-80616
94151-80800
Linked diagrams
3901
8202
