ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211

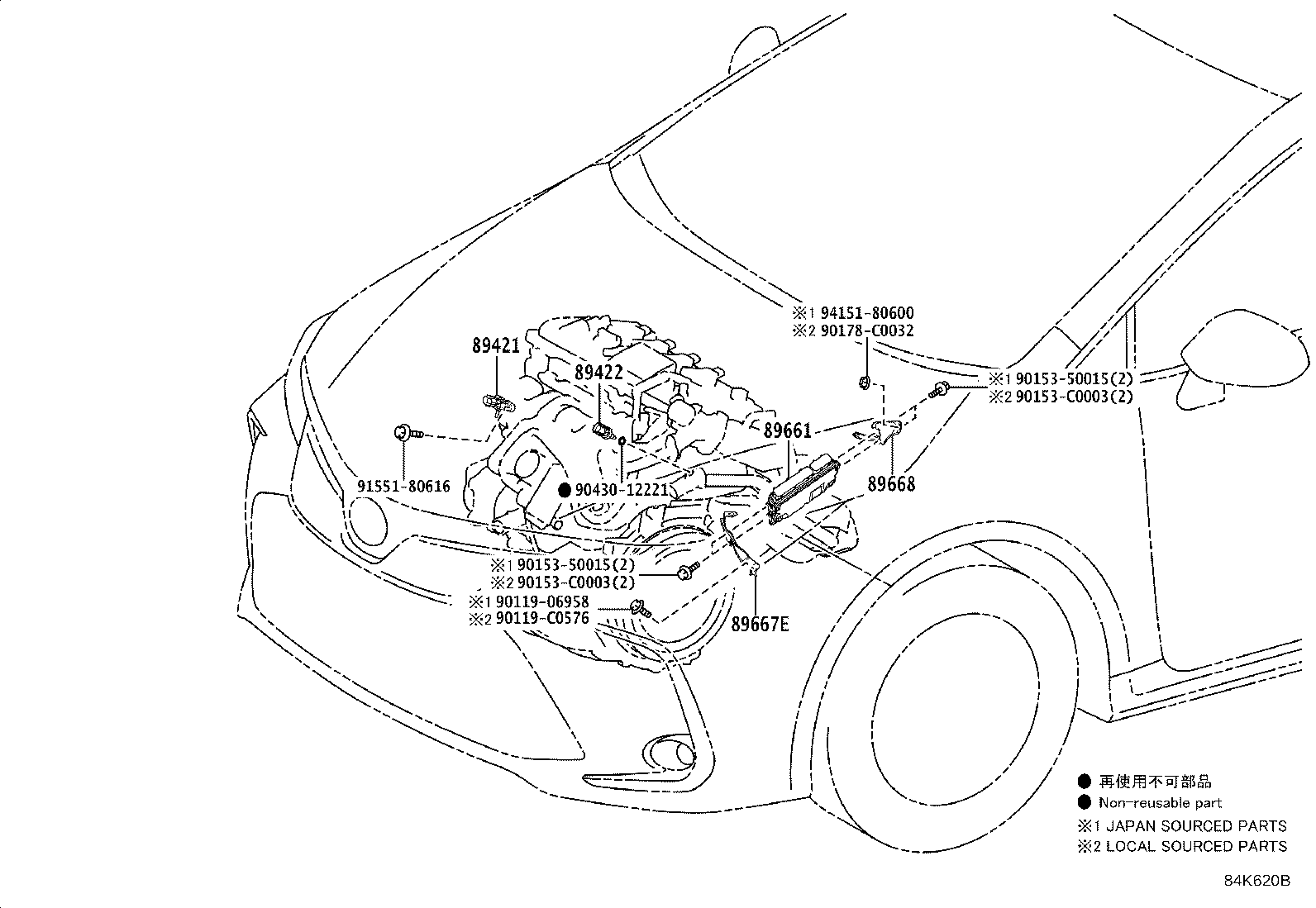

Click highlighted areas on diagram

diagram 89421 89422 89661 89667E 89668 9011906958 90119C0576 9015350015 9015350015 90153C0003 90153C0003 90178C0032 9043012221 9155180616 9415180600
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

ZWE211

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-0D010

ZWE211

 1
89661 - COMPUTER, ENGINE CONTROL
89666-02760

ZWE211

DENSO

 1
89666-02680

ZWE211

DENSO,EXHAUST EMISSION CONTROL-CHINA 6

 1
89666-02680

ZWE211

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-02640

ZWE211

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-02630

ZWE211

 1
Common parts
90119-06958
90119-C0576
90153-50015
90153-C0003
90178-C0032
90430-12221
91551-80616
94151-80600
