ZWE211L-GEXEBC (2019)
Toyota Corolla

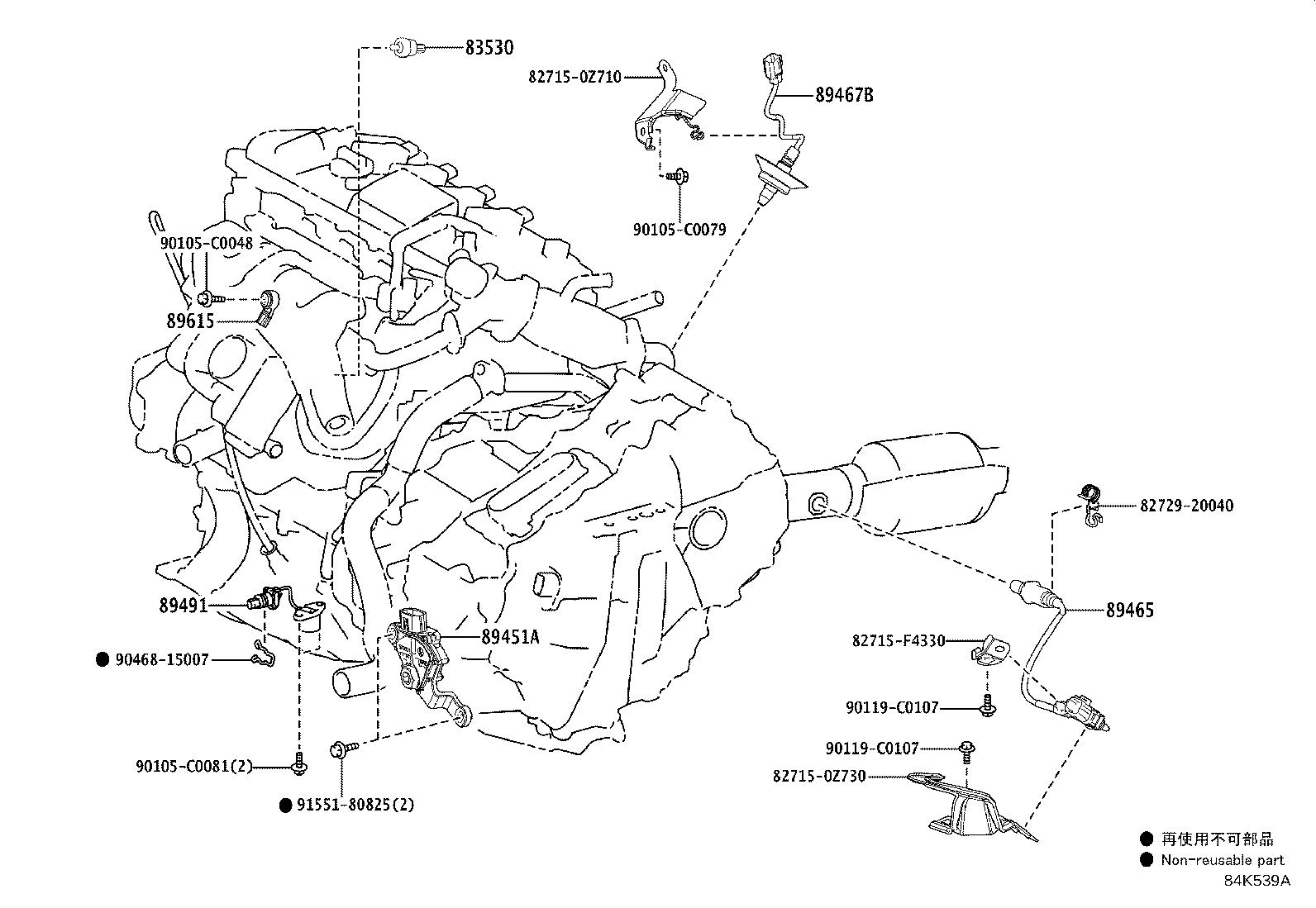

ILLUST NO. 1 OF 9(1908- )ZWE211
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12060 |
ZWE211 |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-10010 |
ZWE211 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02450 |
ZWE211 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-02230 |
ZWE211 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-28090 |
ZWE211 |
1 | ||
| 89491-47011 |
ZWE211 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
MZEA11,ZWE211 |
1 | ||
| Common parts | ||||
| 82715-0Z710 | ||||
| 82715-0Z730 | ||||
| 82715-F4330 | ||||
| 82729-20040 | ||||
| 90105-C0048 | ||||
| 90105-C0079 | ||||
| 90105-C0081 | ||||
| 90119-C0107 | ||||
| 90468-15007 | ||||
| 91551-80825 | ||||

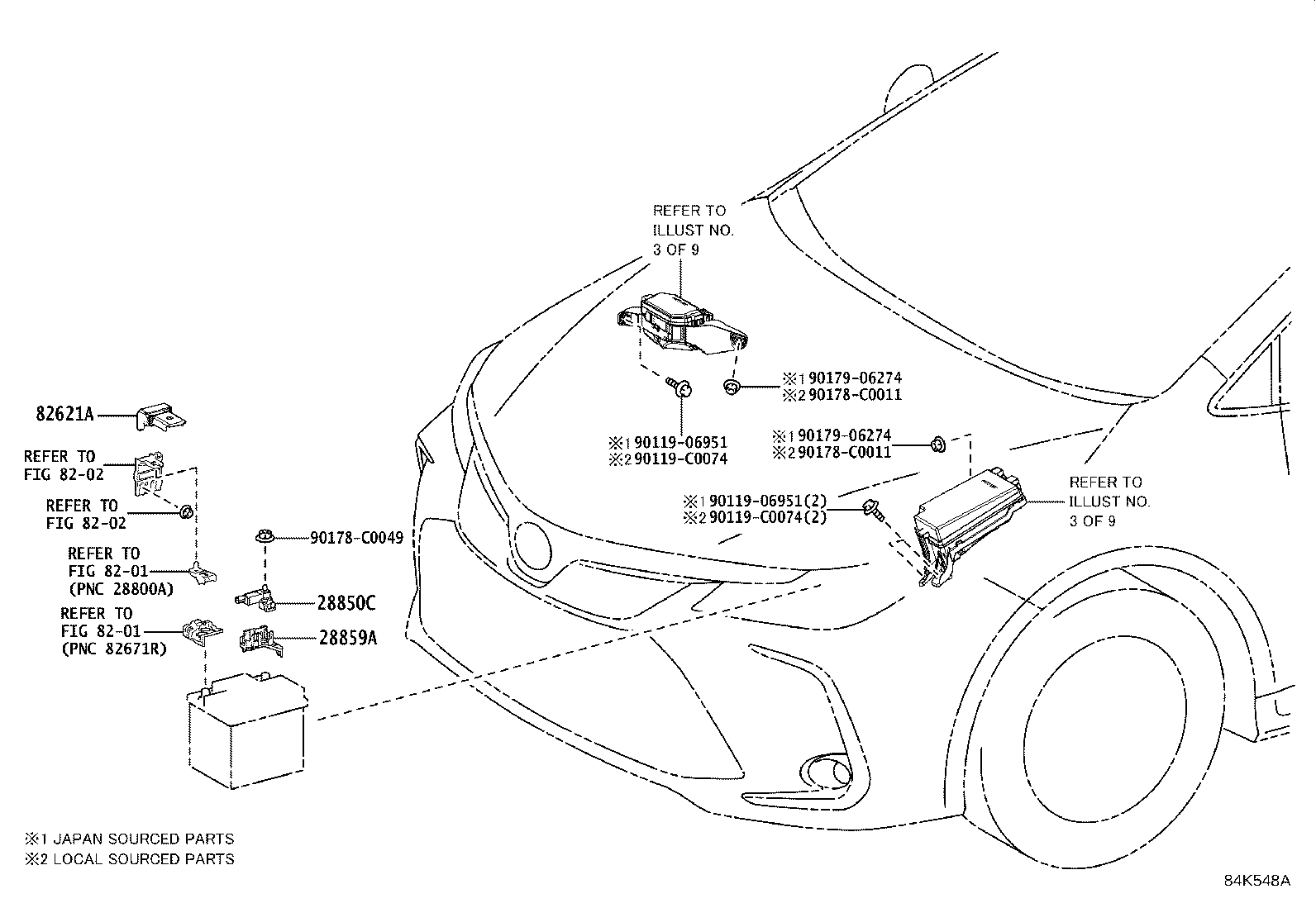

ILLUST NO. 2 OF 9(1908- )ZWE211
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-F0010 |
8ZRFXE..ZWE211;9NRFTS..NRE210..ENTRY,MID |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-0T060 |
8ZRFXE..ZWE211 |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-47020 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-C0074 | ||||
| 90178-C0011 | ||||
| 90178-C0049 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8202 | ||||

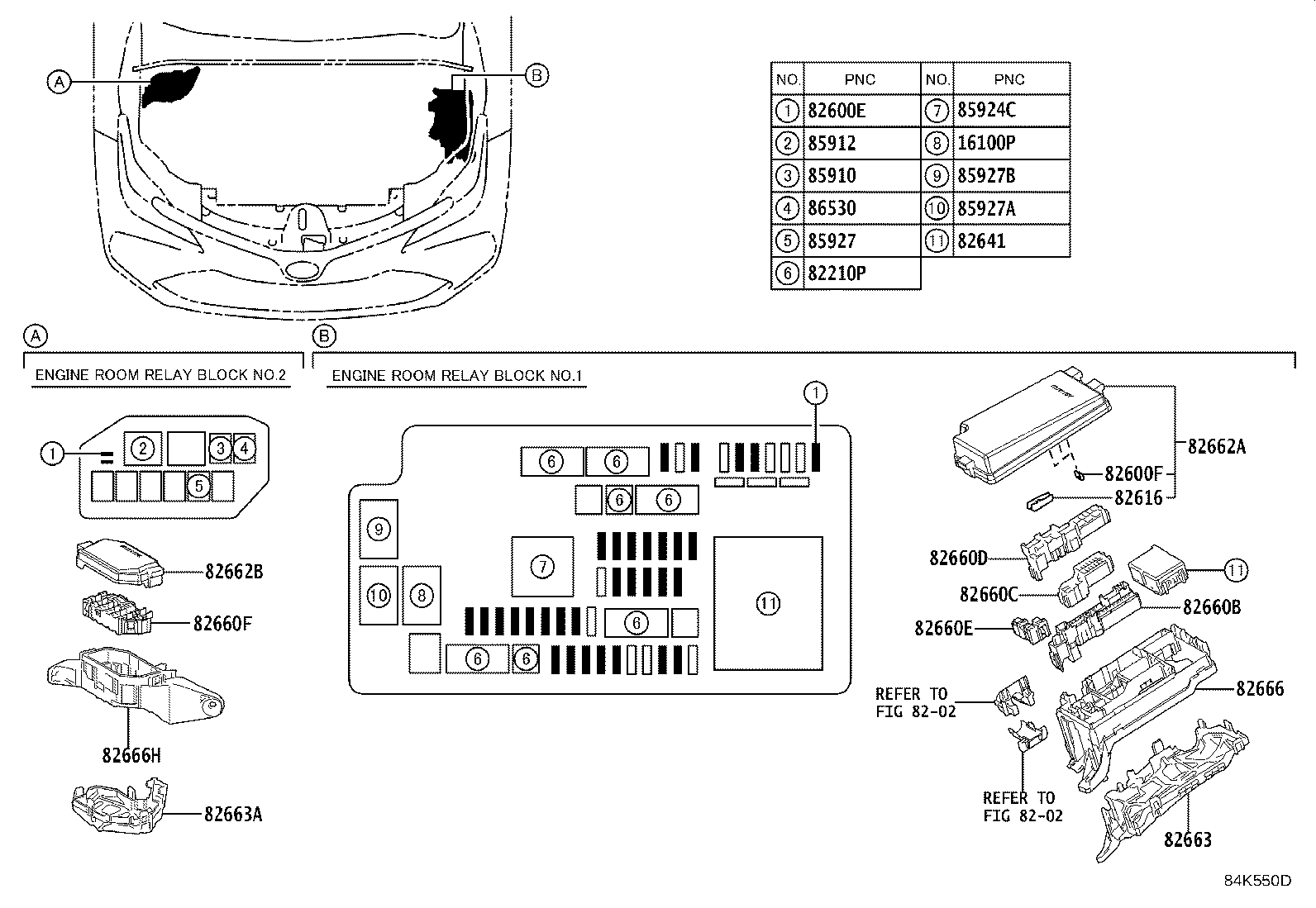

ILLUST NO. 3 OF 9(1908- )ZWE211
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-T2005 |
8ZRFXE..ZWE211 (L) |
1 | ||
| 90987-02027 |
8ZRFXE..ZWE211 (J) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08308 |
ZWE211 40A-30A-30A,FEMALE |
1 | ||
| 90982-08300 |
ZWE211 50A-30A-30A,FEMALE |
1 | ||
| 90982-08295 |
ZWE211 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZWE211 10A,MINI FUSE,RED |
1 | ||
| 90982-09019 |
ZWE211 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
ZWE211 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ZWE211 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ZWE211 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ZWE211 30A,MINI FUSE,GRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09021 |
ZWE211 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
ZWE211 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
ZWE211 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-12420 |
ZWE211 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-47090 |
ZWE211 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-47070 |
ZWE211 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-12430 |
ZWE211 |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-12410 |
ZWE211 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02F10 |
ZWE211 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-02F20 |
ZWE211 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-47070 |
ZWE211 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47090 |
ZWE211 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-12660 |
ZWE211 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
ZWE211 |
1 | ||
| 85910 - RELAY ASSY, CIRCUIT OPENING | ||||
| 90987-02027 |
ZWE211 (J) |
1 | ||
| 90987-T2005 |
ZWE211 (L) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-T4002 |
ZWE211;NRE210..MID |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-02025 |
ZWE211 (J) |
1 | ||
| 90987-T2004 |
ZWE211 (L) |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2005 |
ZWE211 (L) |
1 | ||
| 90987-02027 |
ZWE211 (J) |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZWE211 (J) |
1 | ||
| 90987-T4001 |
ZWE211 (L) |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-T2005 |
ZWE211 (L) |
1 | ||
| 90987-02027 |
ZWE211 (J) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ZWE211;NRE210..ENTRY,MID (J) |
1 | ||
| 90987-T2005 |
ZWE211;NRE210..ENTRY,MID (L) |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 4 OF 9(1908- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
8ZRFXE..ZWE211..HI (J) |
1 | ||
| 90987-T2005 |
8ZRFXE..ZWE211..HI (L) |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZWE211;NRE210..ENTRY,MID 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZWE211;NRE210..ENTRY,MID 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZWE211;NRE210..ENTRY,MID 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZWE211;NRE210..ENTRY,MID 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZWE211;NRE210..ENTRY,MID 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZWE211;NRE210..ENTRY,MID 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZWE211;NRE210..ENTRY,MID 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZWE211;NRE210..ENTRY,MID 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZWE211;NRE210..ENTRY,MID 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZWE211;NRE210..ENTRY,MID 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
ZWE211;NRE210..ENTRY,MID 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZWE211;NRE210..ENTRY,MID 20A,MINI FUSE,YELLOW |
1 | ||
| 82660K - BLOCK ASSY, RELAY | ||||
| 82660-12460 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-12150 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02360 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-F4060 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-12X60 |
NRE210..ENTRY,MID;MZEA11,ZWE211..CVT (J) |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-0Z140 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-F4030 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09390 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0R010 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 84841C - RELAY, FUEL LID OPENER | ||||
| 90987-T2005 |
ZWE211 EXHAUST EMISSION CONTROL-CHINA 6,(L) |
1 | ||
| 90987-02027 |
ZWE211 (J) |
1 | ||
| 90987-T2005 |
ZWE211 (L) |
1 | ||
| 90987-02027 |
ZWE211 EXHAUST EMISSION CONTROL-CHINA 6,(J) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ZWE211;NRE210..ENTRY,MID (J) |
1 | ||
| 90987-T2005 |
ZWE211;NRE210..ENTRY,MID (L) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-02080 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-02131 |
ZWE211 |
1 | ||
| 89111-02130 |
ZWE211 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-0E040 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-02850 |
NRE210,ZWE211..HI |
1 | ||
| 89220-02B00 |
NRE210,ZWE211..MID HEADLAMP-LED |
1 | ||
| 89220-02B30 |
MZEA11,NRE210,ZWE211..MID |
1 | ||
| 89220-02860 |
NRE210,ZWE211..MID |
1 | ||
| 89220-02B00 |
NRE210,ZWE211..HI |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12K60 |
ZWE211 JTEKT/DENSO |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-T2005 |
NRE210..MID;ZWE211..HI,MID (L) |
1 | ||
| 90987-02027 |
NRE210..MID;ZWE211..HI,MID (J) |
1 | ||
| Common parts | ||||
| 90119-06A21 | ||||
| 90119-C0074 | ||||
| 90178-C0011 | ||||
| 90178-C0032 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 93315-54010 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF 9(1908- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02140 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-02100 |
ZWE211;NRE210..MID |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02460 |
NRE210,ZWE211..HI |
1 | ||
| 84332-02430 |
NRE210,ZWE211..ENTRY,MID |
1 | ||
| 84332-02461 |
ZWE211..HI |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02460 |
NRE210,ZWE211..HI |
1 | ||
| 84332-02430 |
NRE210,ZWE211..ENTRY,MID |
1 | ||
| 84332-02461 |
ZWE211..HI |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-02090 |
ZWE211;NRE210..MID |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-02120 |
ZWE211..HI RH |
1 | ||
| 84751-02130 |
ZWE211..HI LH |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-02050 |
ZWE211 |
1 | ||
| 84841-02050 |
ZWE211 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02440 |
ZWE211 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-02440 |
ZWE211 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-0N010 |
MZEA11,ZWE211;NRE210..ENTRY,MID |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-06030 |
MZEA11..HI;ZWE211..HI,MID |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-02060 |
MZEA11,ZWE211;NRE210..ENTRY,MID |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02250 |
ZWE211 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-02250 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90167-C0004 | ||||
ILLUST NO. 6 OF 9(1908- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02E80 |
NRE210,ZWE211..MID |
1 | ||
| 84250-02E90 |
NRE210,ZWE211..MID AUDIO-*DA(ACCESSORY) & 6SPEAKER |
1 | ||
| 84250-02E90 |
ZWE211..MID;NRE210..HI,MID |
1 | ||
| 84250-02E90 |
MZEA11;ZWE211..HI |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02170 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-07010 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-07010 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-07150 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-07010 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| Common parts | ||||
| 90159-50265 | ||||
| 90159-C0010 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 9(1908- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-06230C0 |
ZWE211..HI BLACK,TRIM0#,2# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-06220C0 |
ZWE211..HI BLACK,TRIM0#,2# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-06210C0 |
ZWE211..HI BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90167-C0016 | ||||
| 93560-54012 | ||||
ILLUST NO. 8 OF 9(1908- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-02320 |
NRE210..MID;ZWE211..HI,MID |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-0R010 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0E070 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-0E070 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-02270 |
NRE210..MID;ZWE211..HI,MID |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02270 |
NRE210..MID;ZWE211..HI,MID |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-02270 |
NRE210..MID;ZWE211..HI,MID |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-02540 |
NRE210..MID;ZWE211..HI,MID |
1 | ||
| Common parts | ||||
| 90164-C0009 | ||||
| 90166-C0004 | ||||
| 90166-C0005 | ||||
ILLUST NO. 9 OF 9(1908- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02490 |
ZWE211 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02490 |
ZWE211 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02490 |
ZWE211 |
1 | ||
| 89461 - SENSOR, VAPOR PRESSURE | ||||
| 89461-48020 |
ZWE211 |
1 | ||
| 89461-48020 |
ZWE211 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
