ZWE211L-GEXEBC (2019)
Toyota Corolla

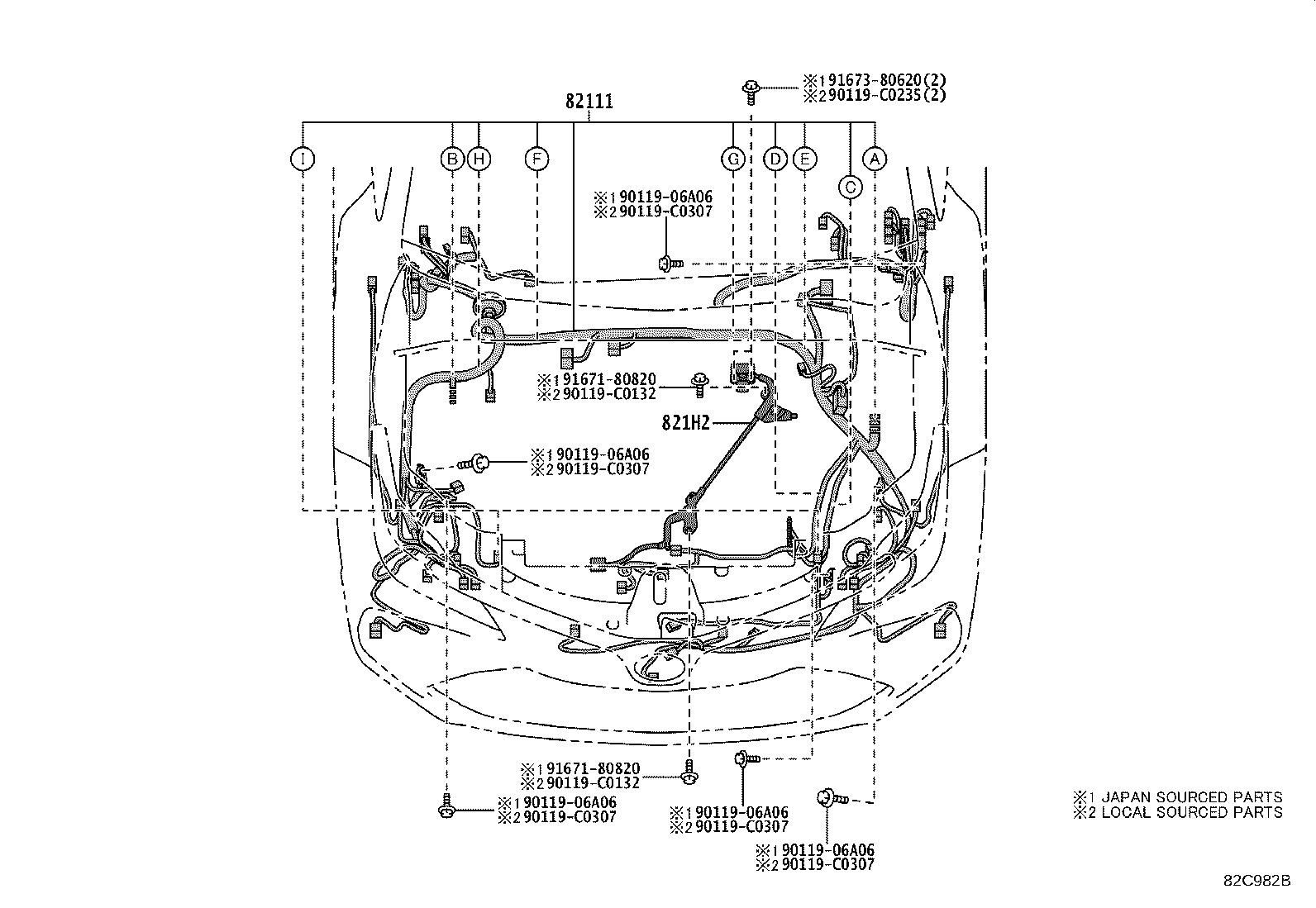

ILLUST NO. 1 OF13(1908- )ZWE211
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-F2670 |
ZWE211..HI |
1 | ||
| 82115-F2B50 |
ZWE211..MID |
1 | ||
| 82116-0ZX50 |
ZWE211..HI |
1 | ||
| 82116-0ZX60 |
ZWE211..MID |
1 | ||
| 82115-F2B51 |
ZWE211..MID |
1 | ||
| 82115-F2671 |
ZWE211..MID HEADLAMP-LED |
1 | ||
| 82115-F2671 |
ZWE211..HI |
1 | ||
| 821H2 - WIRE, HV AIR CONDITIONER | ||||
| 821H2-02100 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-C0132 | ||||
| 90119-C0235 | ||||
| 90119-C0307 | ||||
| 91671-80820 | ||||
| 91673-80620 | ||||

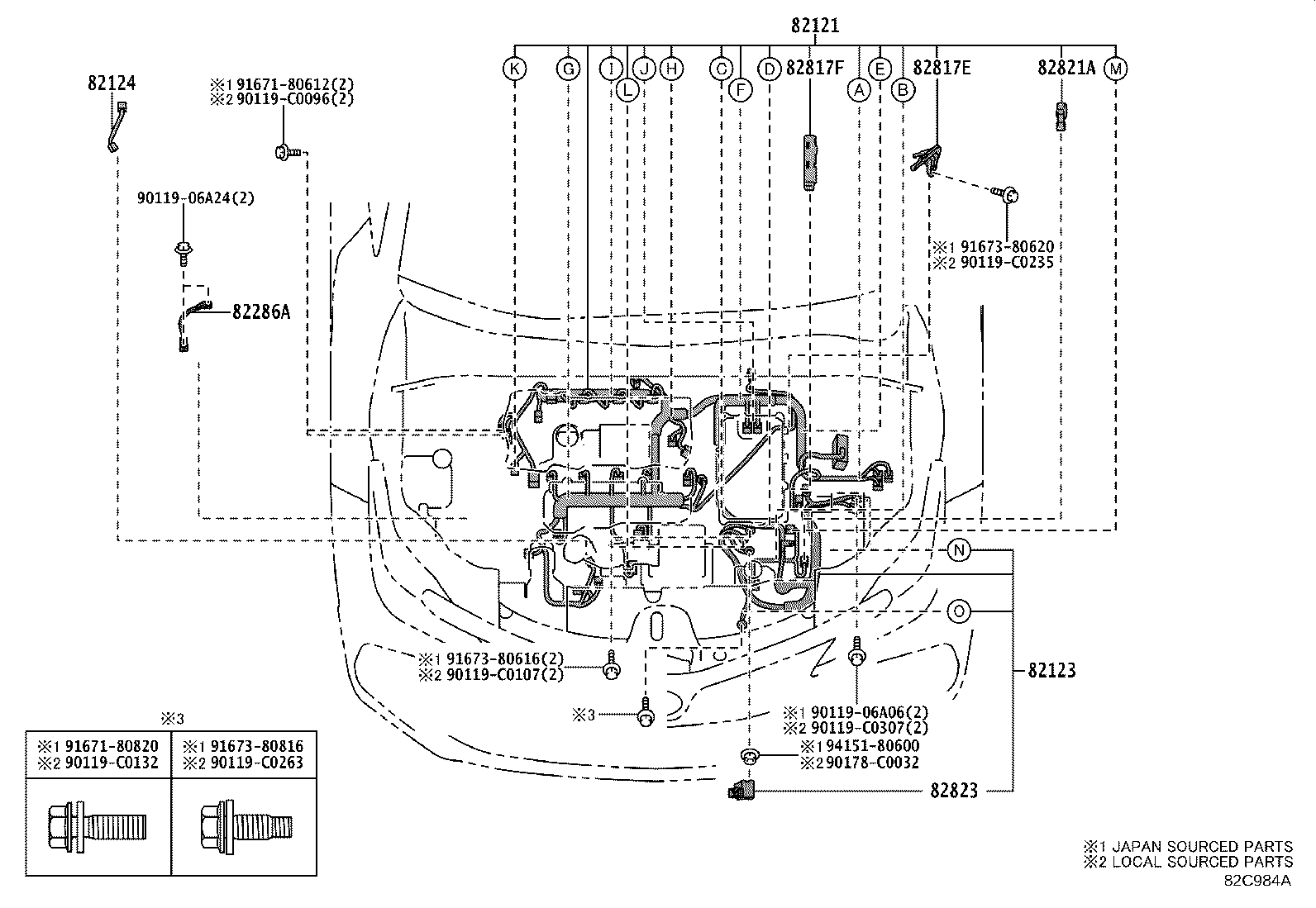

ILLUST NO. 3 OF13(1908- )ZWE211
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0ZS20 |
ZWE211 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02C10 |
ZWE211 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02100 |
ZWE211 |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-02220 |
ZWE211 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-02V40 |
ZWE211 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-02V50 |
ZWE211 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-47330 |
ZWE211 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-47050 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 90119-C0096 | ||||
| 90119-C0107 | ||||
| 90119-C0132 | ||||
| 90119-C0235 | ||||
| 90119-C0263 | ||||
| 90119-C0307 | ||||
| 90178-C0032 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-80816 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF13(1908- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82145-F2L50 |
ZWE211..HI |
1 | ||
| 82145-F2450 |
ZWE211..ENTRY,MID |
1 | ||
| 82145-F2L51 |
ZWE211..HI |
1 | ||
| 82145-F2461 |
ZWE211..MID |
1 | ||
| 82145-F2460 |
ZWE211..MID AUDIO-*DA(ACCESSORY) & 6SPEAKER |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02640 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-12670 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12670 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12680 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26180 |
MZEA11,NRE210,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-C0074 | ||||
| 90119-C0107 | ||||
| 90159-C0016 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF13(1908- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0ZV20 |
MZEA11..HI;ZWE211..HI,MID |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0ZU00 |
MZEA11..HI;ZWE211..HI,MID |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02D50 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02B80 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 91673-80616 | ||||
ILLUST NO. 7 OF13(1908- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-F2W60 |
ZWE211..ENTRY,MID SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 82161-F2W70 |
ZWE211..HI EXHAUST EMISSION CONTROL-CHINA 6&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 82161-F2W50 |
ZWE211..ENTRY,MID EXHAUST EMISSION CONTROL-CHINA 6&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 82199-0ZZ20 |
ZWE211..HI |
1 | ||
| 82161-F2530 |
ZWE211..HI SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 82199-0ZZ10 |
ZWE211..HI EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 82199-0ZU50 |
ZWE211..HI SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 82161-FE720 |
ZWE211..ENTRY,MID |
1 | ||
| 82199-0Z440 |
ZWE211..ENTRY,MID EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 82161-F2520 |
ZWE211..ENTRY,MID SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 82161-FE730 |
ZWE211..HI EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 82161-FE710 |
ZWE211..ENTRY,MID EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 82161-F2W51 |
ZWE211..ENTRY,MID |
1 | ||
| 82161-FE770 |
ZWE211..ENTRY,MID EXHAUST EMISSION CONTROL-CHINA 6&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 82161-F2W52 |
ZWE211..ENTRY,MID |
1 | ||
| 82161-FE740 |
ZWE211..HI |
1 | ||
| 82199-0Z450 |
ZWE211..ENTRY,MID |
1 | ||
| 82161-FE780 |
ZWE211..HI EXHAUST EMISSION CONTROL-CHINA 6&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION) |
1 | ||
| 82161-F2W71 |
ZWE211..HI |
1 | ||
| 82161-F2W72 |
ZWE211..HI |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-F2530 |
NRE210..MID;MZEA11,ZWE211..HI,MID |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-02380 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-52A60 |
ZWE211 |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-02130 |
ZWE211;NRE210..MID |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-02140 |
ZWE211;NRE210..MID |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-C0211 | ||||
| 90119-C0307 | ||||
| 90178-C0034 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||

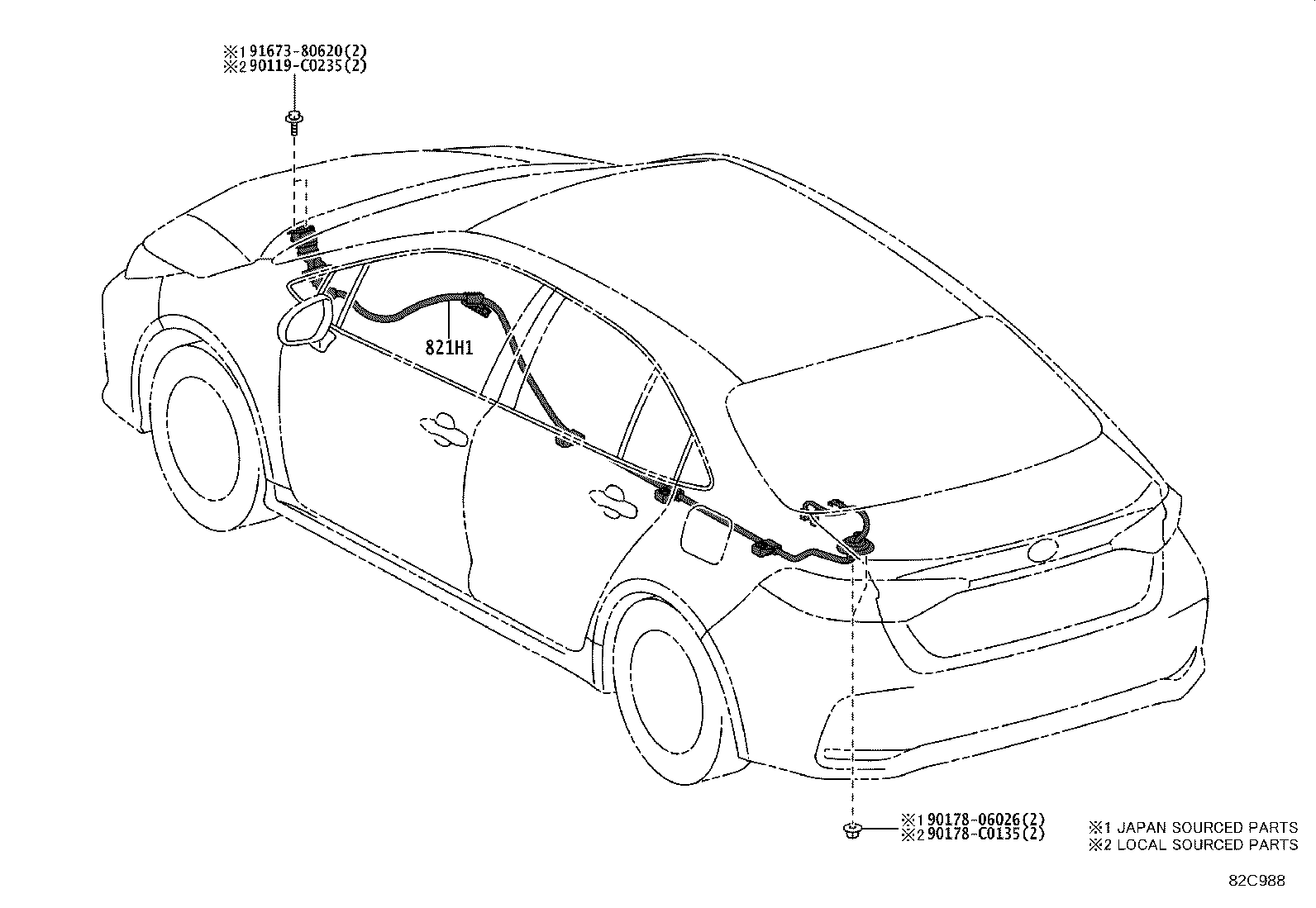

ILLUST NO. 8 OF13(1908- )ZWE211
HIGH TENSION CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-02150 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-C0235 | ||||
| 90178-06026 | ||||
| 90178-C0135 | ||||
| 91673-80620 | ||||
ILLUST NO. 9 OF13(1908- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-02410 |
ZWE211..HI |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-07010 |
ZWE211..HI |
1 | ||
ILLUST NO.10 OF13(1908- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12631-37010 | ||||
| 82715-02C90 | ||||
| 82715-02L80 | ||||
| 82715-02Q00 | ||||
| 82715-02Q10 | ||||
| 82715-02Q20 | ||||
| 82715-02Q30 | ||||
| 82715-02Q50 | ||||
| 82715-02Q60 | ||||
| 82715-0Z250 | ||||
| 82715-0Z380 | ||||
| 82715-0Z860 | ||||
| 82715-0Z870 | ||||
| 82715-0Z880 | ||||
| 82715-0Z890 | ||||
| 82715-10300 | ||||
| 82715-10340 | ||||
| 82715-10350 | ||||
| 82715-10370 | ||||
| 82715-12R70 | ||||
| 82715-12R80 | ||||
| 82715-12S50 | ||||
| 82715-12S80 | ||||
| 82715-12S90 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47770 | ||||
| 82715-47790 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-47830 | ||||
| 82715-47860 | ||||
| 82715-47A00 | ||||
| 82715-5C050 | ||||
| 82729-20150 | ||||
| 90119-C0096 | ||||
| 90119-C0097 | ||||
| 90119-C0100 | ||||
| 90119-C0107 | ||||
| 90119-C0263 | ||||
| 90119-C0510 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91673-80616 | ||||
| 91673-80625 | ||||
| 91673-80816 | ||||
ILLUST NO.11 OF13(1908- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-06180 | ||||
| 82711-0D070 | ||||
| 82711-1E350 | ||||
| 82711-3F230 | ||||
| 82715-02R00 | ||||
| 82715-0ZA60 | ||||
| 82715-10340 | ||||
| 82715-12T60 | ||||
| 82715-12V00 | ||||
| 82715-12V30 | ||||
| 82715-12W20 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-47850 | ||||
| 82715-76790 | ||||
| 82715-F4050 | ||||
| 82715-F4390 | ||||
| 82715-K0200 | ||||
| 82715-K0230 | ||||
| 82715-K0660 | ||||
| 90119-06A06 | ||||
| 90119-06A12 | ||||
| 90119-C0098 | ||||
| 90119-C0100 | ||||
| 90119-C0107 | ||||
| 90119-C0132 | ||||
| 90119-C0235 | ||||
| 90119-C0263 | ||||
| 90119-C0307 | ||||
| 90119-C0510 | ||||
| 90178-C0011 | ||||
| 90179-06274 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-80625 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO.12 OF13(1908- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11194 | ||||
| 90980-11246 | ||||
| 90980-11399 | ||||
| 90980-11660 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12E29 | ||||
| 90980-12F30 | ||||
| 90980-WA051 | ||||
| 90980-WA052 | ||||
ILLUST NO.13 OF13(1908- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12D25 | ||||

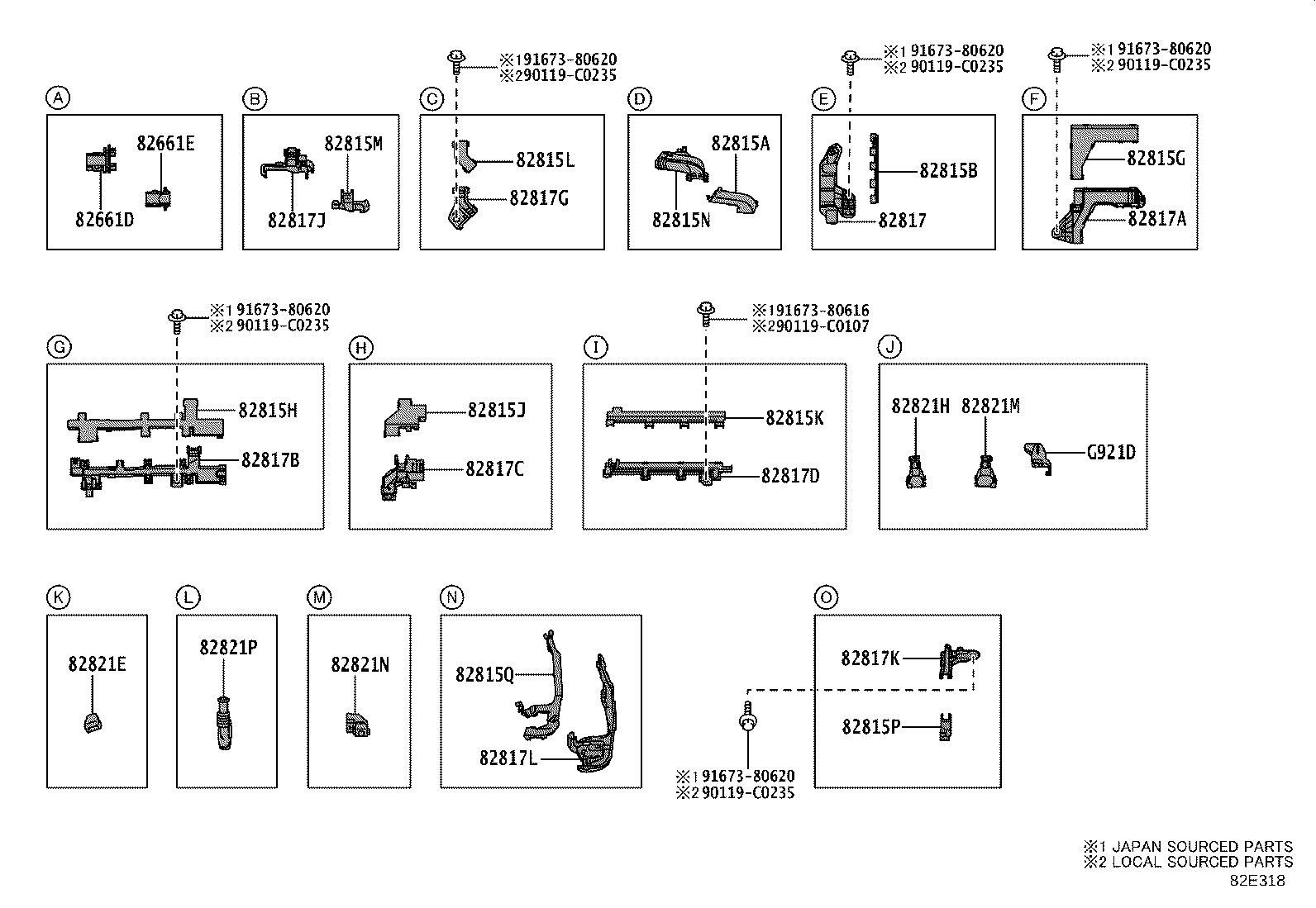

ILLUST NO. 4 OF13(1908- )ZWE211
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-47020 |
ZWE211 |
1 | ||
| 82661E - COVER, RELAY BLOCK, SIDE NO.2 | ||||
| 82661-47030 |
ZWE211 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-02K80 |
ZWE211 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-02L00 |
ZWE211 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-02K60 |
ZWE211 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-02K30 |
ZWE211 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-02K50 |
ZWE211 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-02K40 |
ZWE211 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-02K70 |
ZWE211 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-02K90 |
ZWE211 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82817-02V10 |
ZWE211 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-10080 |
ZWE211 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-47E50 |
ZWE211 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02V30 |
ZWE211 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-02U90 |
ZWE211 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-02U60 |
ZWE211 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-02U80 |
ZWE211 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-02U70 |
ZWE211 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-02V00 |
ZWE211 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-02V20 |
ZWE211 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-10360 |
ZWE211 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-47Q20 |
ZWE211 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-20410 |
ZWE211 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-47420 |
ZWE211 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-47430 |
ZWE211 |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-50500 |
ZWE211 |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-60100 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-47020 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-C0107 | ||||
| 90119-C0235 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||

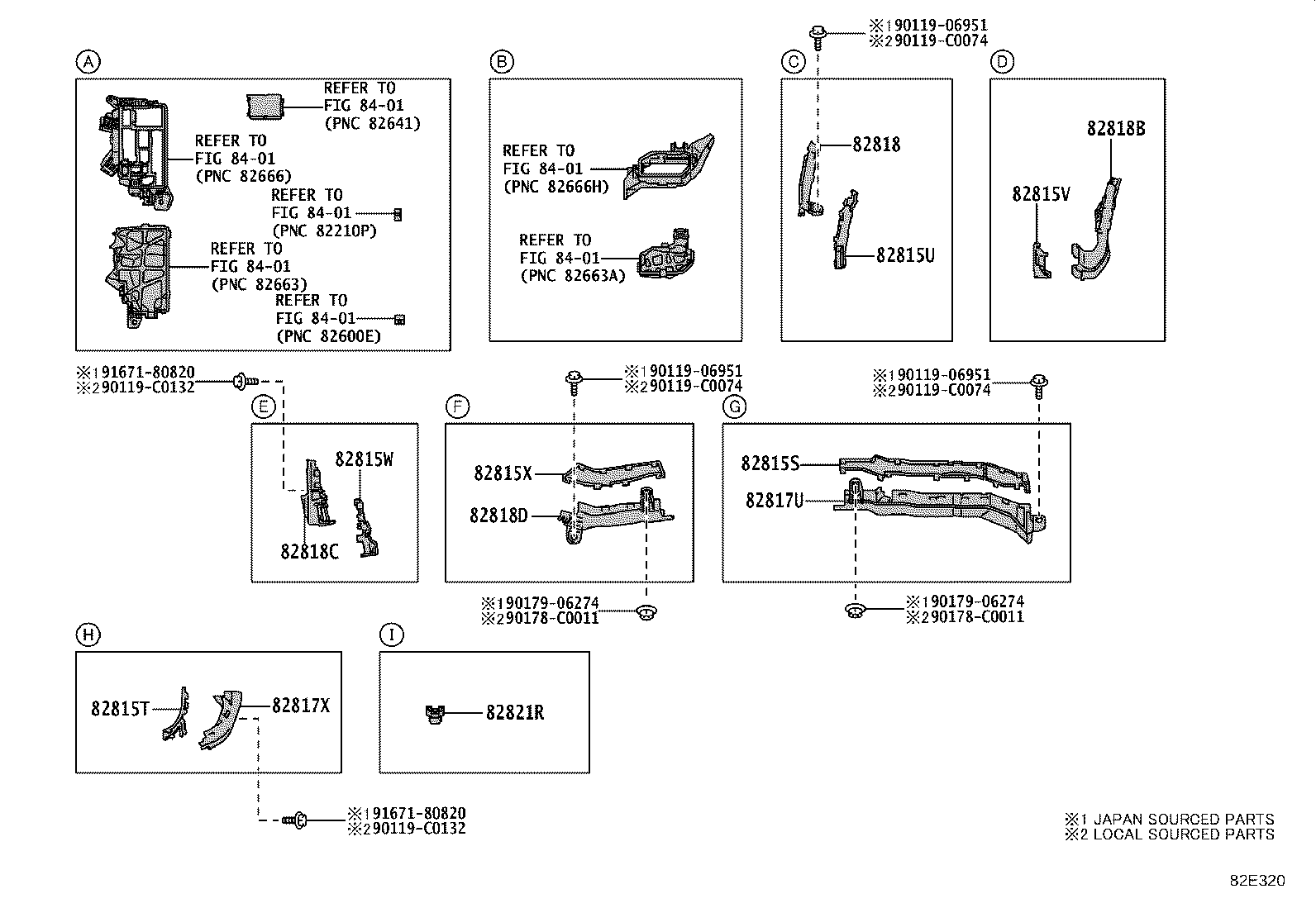

ILLUST NO. 2 OF13(1908- )ZWE211
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-12L50 |
ZWE211 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-12L60 |
ZWE211 |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-47880 |
ZWE211 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-47C20 |
ZWE211 |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-47C80 |
ZWE211 |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-47D20 |
ZWE211 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-12Z30 |
ZWE211 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-12Z40 |
ZWE211 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47N30 |
ZWE211 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-47N40 |
ZWE211 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47N50 |
ZWE211 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47N90 |
ZWE211 |
1 | ||
| 82821R - COVER, CONNECTOR | ||||
| 82821-30650 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-C0074 | ||||
| 90119-C0132 | ||||
| 90178-C0011 | ||||
| 90179-06274 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
