ZWE211L-GEXEBC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

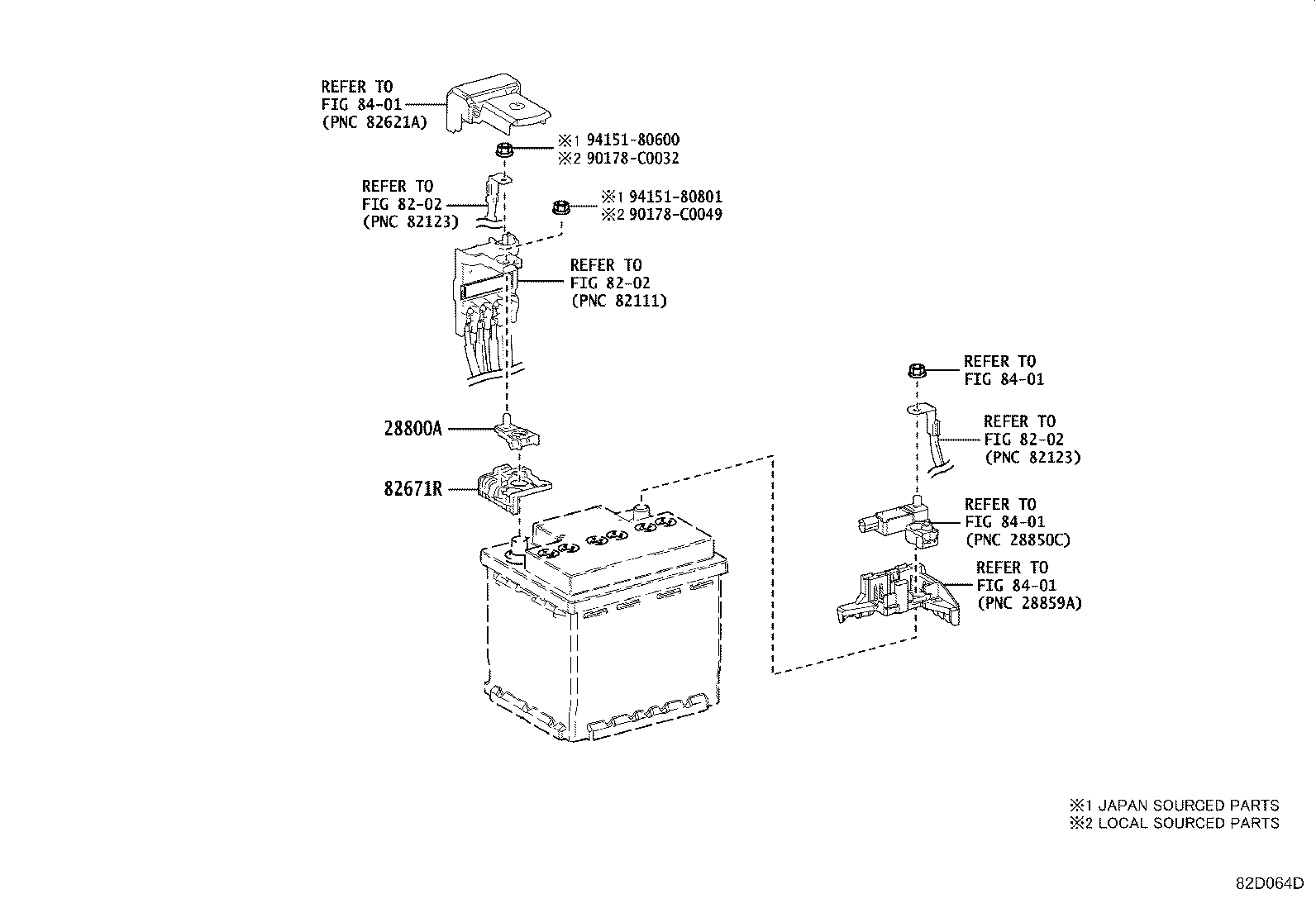

ILLUST NO. 1 OF 4(1908- )ZWE211
Click highlighted areas on diagram
12V BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05061 |
8ZRFXE..ZWE211 |
1 | ||
| 82671R - STOPPER, BATTERY TERMINAL | ||||
| 82671-47040 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90178-C0032 | ||||
| 90178-C0049 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

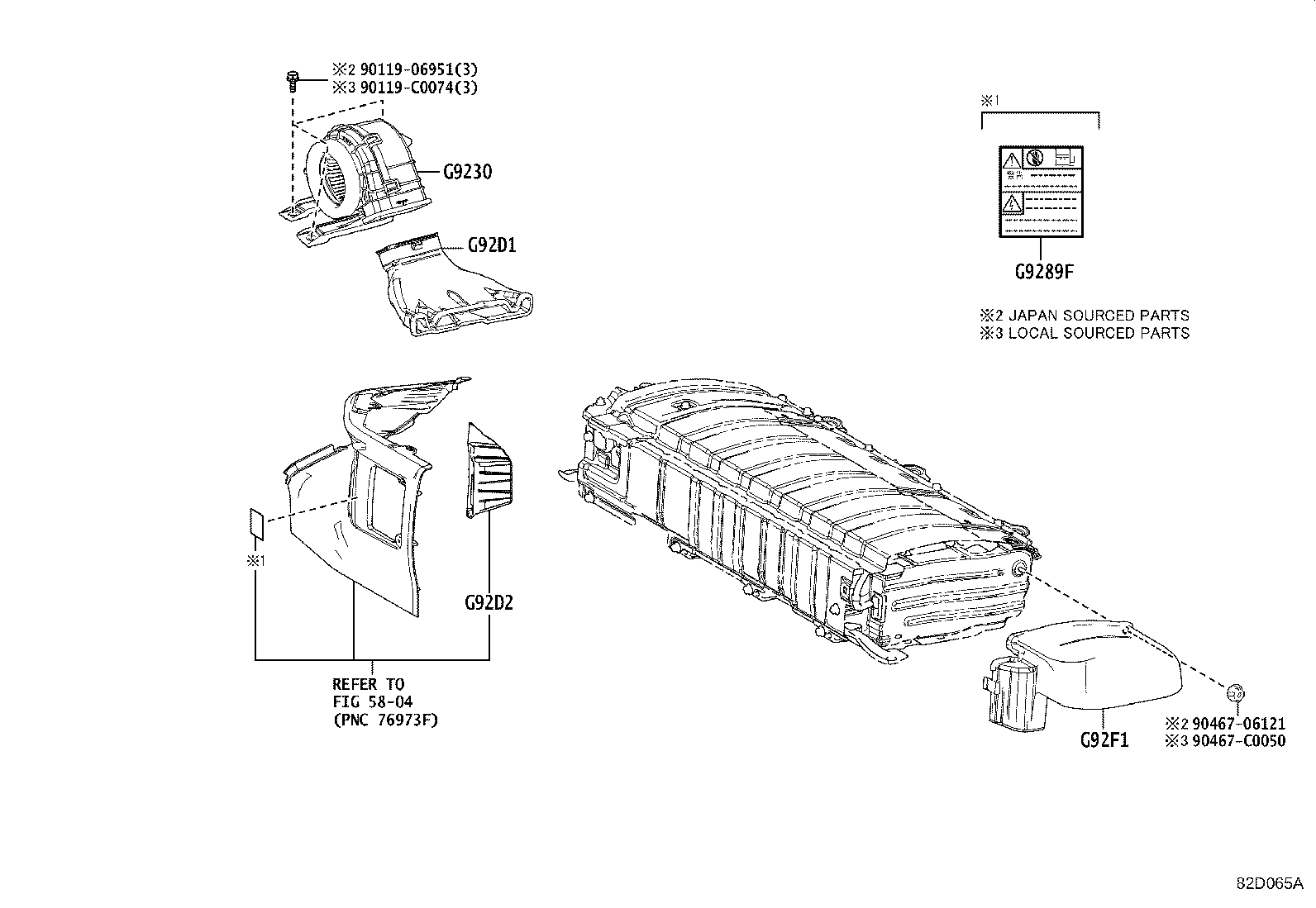

ILLUST NO. 2 OF 4(1908- )ZWE211
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G9230 - BLOWER ASSY, BATTERY COOLING | ||||
| G9230-02030 |
ZWE211 |
1 | ||
| G9289F - LABEL, BATTERY CAUTION, NO.3 | ||||
| 82685-02030 |
ZWE211 |
1 | ||
| G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1 | ||||
| G92E1-02010 |
ZWE211 |
1 | ||
| G92D2 - DUCT, HYBRID BATTERY INTAKE, NO.2 | ||||
| G92D1-02030 |
ZWE211 |
1 | ||
| G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1 | ||||
| G92F1-02010 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-C0074 | ||||
| 90467-06121 | ||||
| 90467-C0050 | ||||
| Linked diagrams | ||||
| 5804 | ||||

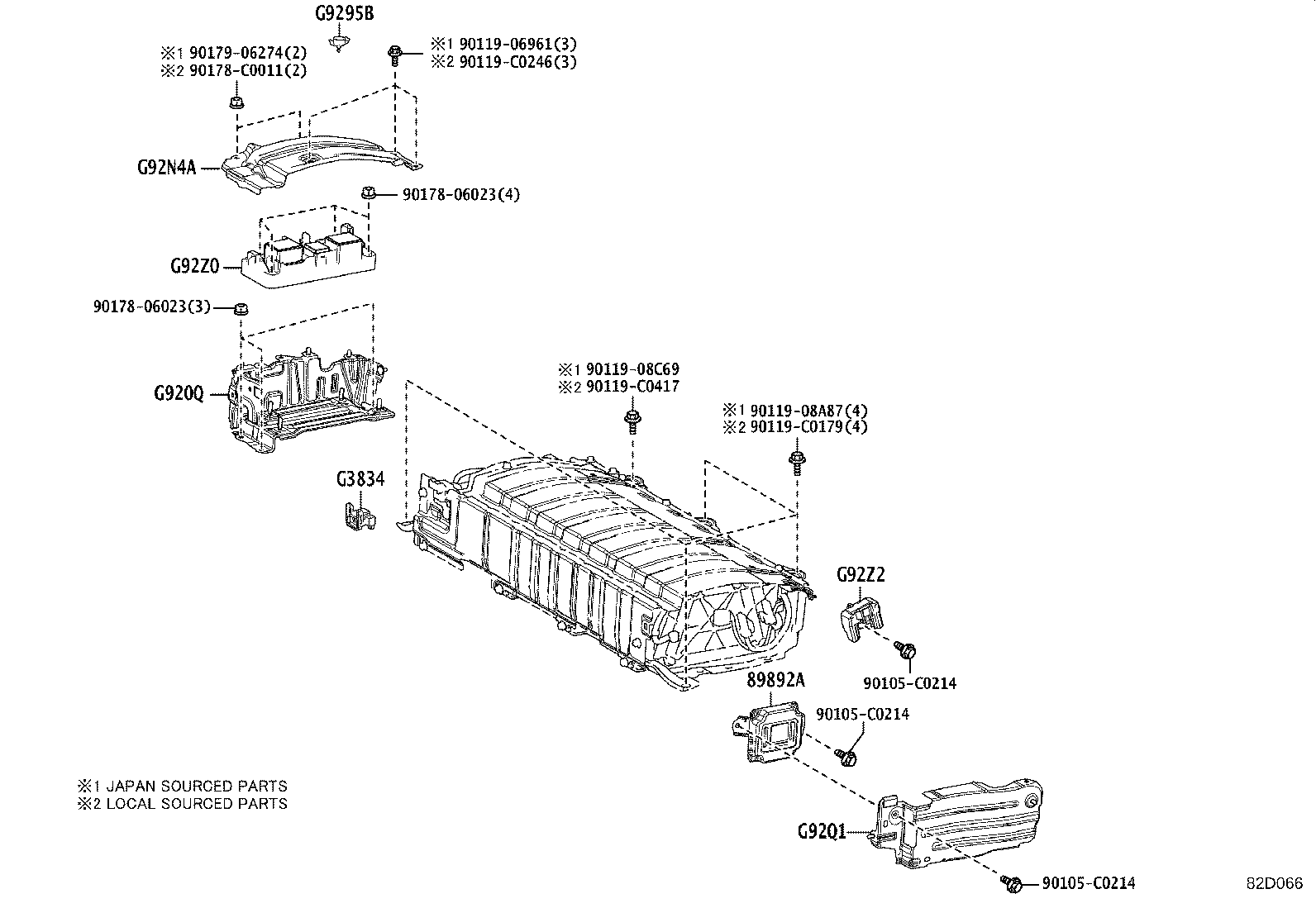

ILLUST NO. 3 OF 4(1908- )ZWE211
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89892A - SENSOR, BATTERY VOLTAGE | ||||
| 89892-02010 |
ZWE211 |
1 | ||
| G3834 - GRIP, SERVICE PLUG | ||||
| G3834-02010 |
ZWE211 |
1 | ||
| G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1 | ||||
| G920Q-02020 |
ZWE211 |
1 | ||
| G9295B - STRIKER, BATTERY COVER LOCK | ||||
| G9295-02010 |
ZWE211 |
1 | ||
| G92N4A - PANEL, HV BATTERY RH COVER, NO.1 | ||||
| G92N4-02010 |
ZWE211 |
1 | ||
| G92Q1 - PANEL, HV BATTERY SHIELD, NO.1 | ||||
| G92Q1-02020 |
ZWE211 |
1 | ||
| G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION | ||||
| G92Z0-02010 |
ZWE211 |
1 | ||
| G92Z2 - BLOCK, HYBRID BATTERY TERMINAL | ||||
| G92Z2-47070 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90105-C0214 | ||||
| 90119-06961 | ||||
| 90119-08A87 | ||||
| 90119-08C69 | ||||
| 90119-C0179 | ||||
| 90119-C0246 | ||||
| 90119-C0417 | ||||
| 90178-06023 | ||||
| 90178-C0011 | ||||
| 90179-06274 | ||||

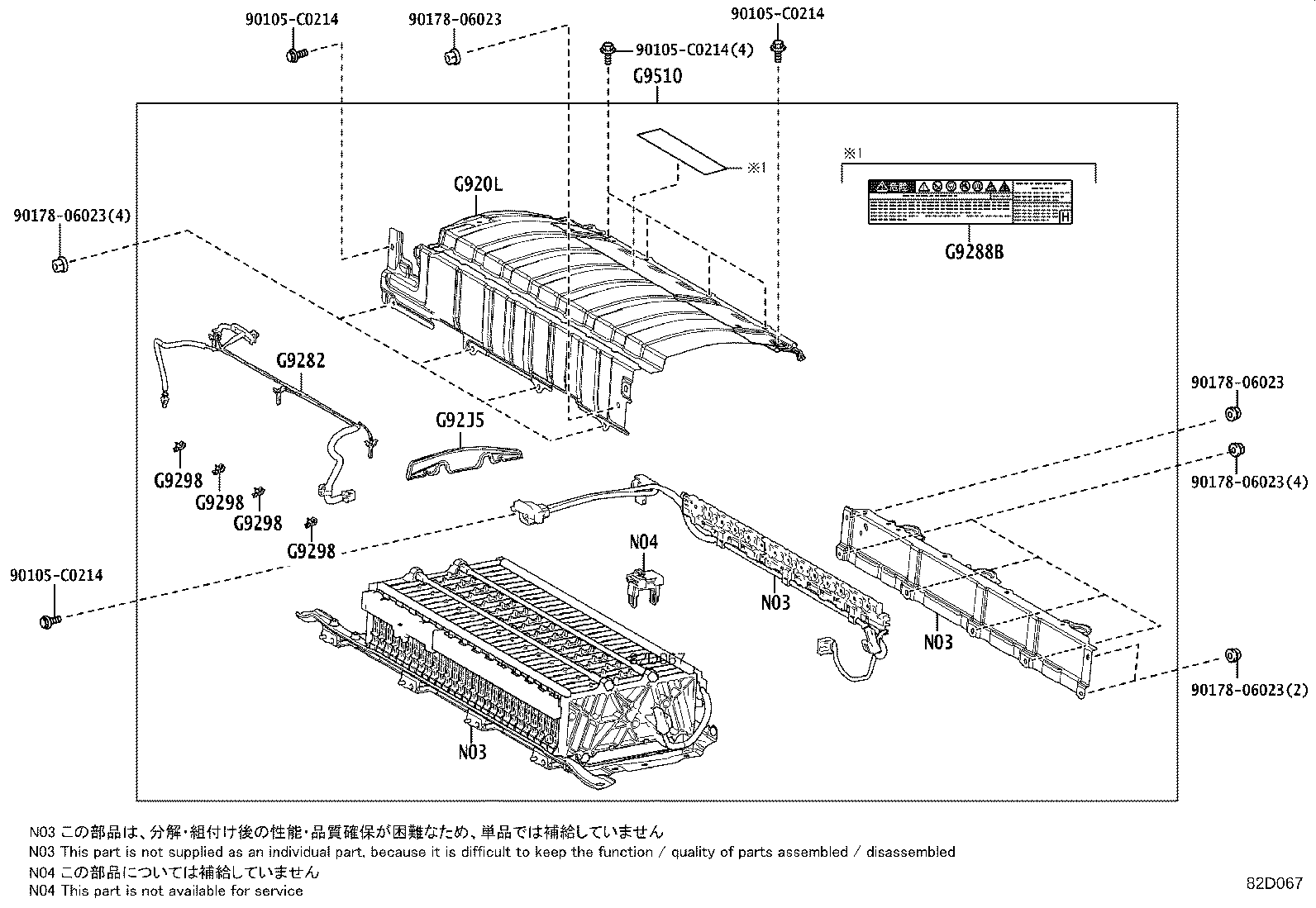

ILLUST NO. 4 OF 4(1908- )ZWE211
Click highlighted areas on diagram
HV BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| G920L - COVER SUB-ASSY, HYBRID BATTERY, UPPER NO.1 | ||||
| G920N-02010 |
ZWE211 |
1 | ||
| G9282 - THERMISTOR, HYBRID BATTERY | ||||
| G9282-02030 |
ZWE211 |
1 | ||
| G9288B - LABEL, BATTERY CAUTION | ||||
| G9288-02010 |
ZWE211 |
1 | ||
| G9298 - CLAMP, HV BATTERY | ||||
| G928E-47010 |
ZWE211 |
4 | ||
| G9298 - CLAMP, HV BATTERY | ||||
| G928E-47010 |
ZWE211 |
4 | ||
| G9298 - CLAMP, HV BATTERY | ||||
| G928E-47010 |
ZWE211 |
4 | ||
| G9298 - CLAMP, HV BATTERY | ||||
| G928E-47010 |
ZWE211 |
4 | ||
| G92J5 - PACKING, HYBRID BATTERY, NO.1 | ||||
| G92J5-02020 |
ZWE211 |
1 | ||
| G9510 - BATTERY ASSY, HV SUPPLY | ||||
| G9510-02030 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90105-C0214 | ||||
| 90178-06023 | ||||
