ZWE211L-GEXEBC (2019)
Toyota Corolla

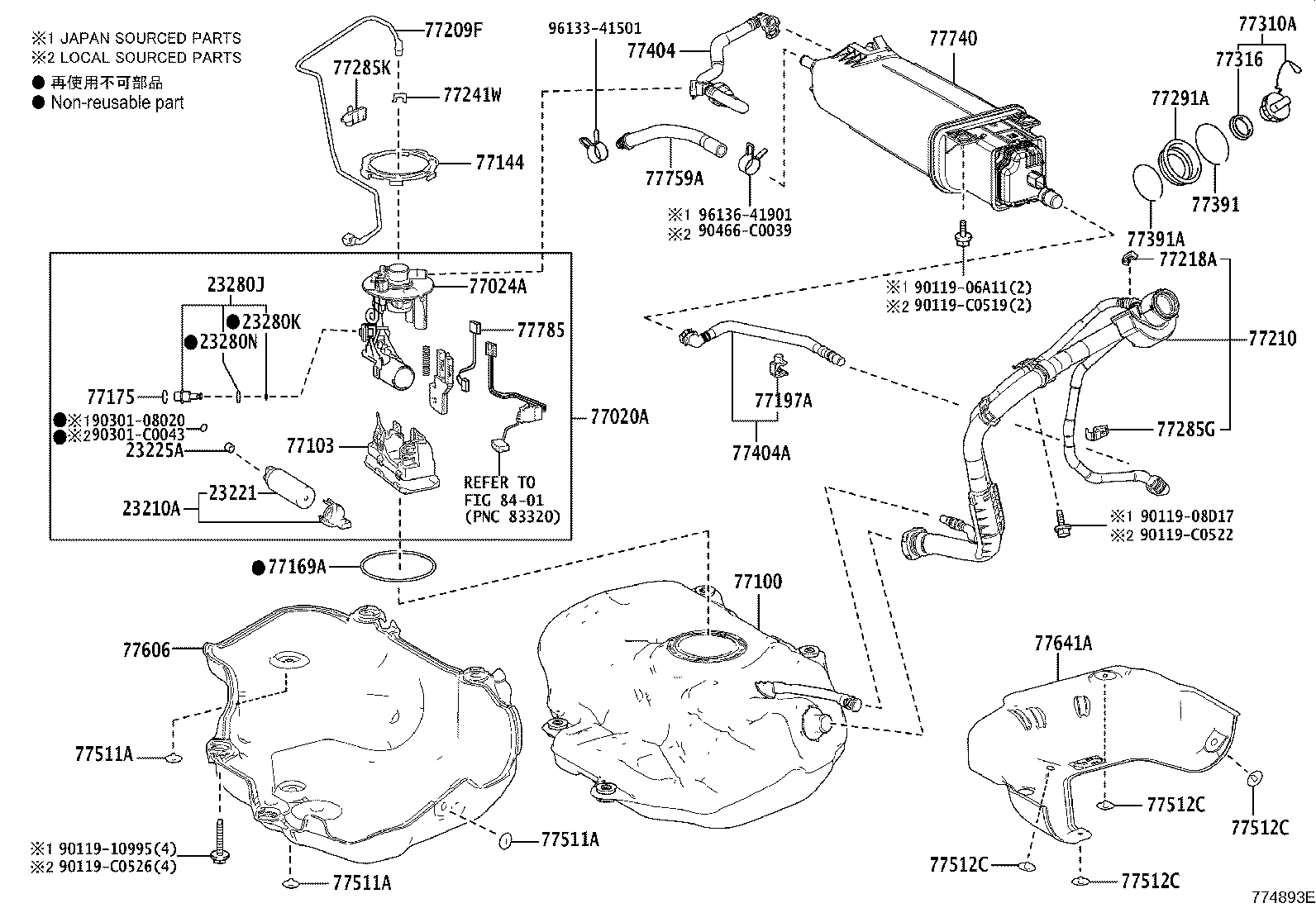

ILLUST NO. 1 OF 3(1908- )ZWE211
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23210A - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-0T020 |
8ZRFXE..ZWE211 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-0Y010 |
8ZRFXE..ZWE211 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0H020 |
8ZRFXE..ZWE211;9NRFTS..NRE210..ENTRY,MID |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
8ZRFXE..ZWE211 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8ZRFXE..ZWE211;9NRFTS..NRE210..ENTRY,MID |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
8ZRFXE..ZWE211;9NRFTS..NRE210..ENTRY,MID |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02C40 |
ZWE211 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02650 |
ZWE211 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02B70 |
ZWE211 |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-02110 |
ZWE211 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4020 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
NRE210,ZWE211 (J) |
1 | ||
| 77169-F4050 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77169-0K030 |
NRE210,ZWE211 (L) |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-02060 |
ZWE211 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-47010 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02400 |
ZWE211 |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-02872 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77210-02870 |
NRE210,ZWE211 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-02140 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-02020 |
ZWE211 |
2 | ||
| 77241-33011 |
ZWE211 |
2 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-06580 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0R310 |
ZWE211 |
1 | ||
| 77285-30350 |
ZWE211 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02340 |
NRE210,ZWE211 |
1 | ||
| 77291-02341 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-11010 |
ZWE211 |
1 | ||
| 77300-06100 |
ZWE211 |
1 | ||
| 77300-11010 |
ZWE211 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 77300-06110 |
ZWE211 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
ZWE211 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02160 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0R030 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-12090 |
ZWE211 |
1 | ||
| 77404-02390 |
ZWE211 |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-02290 |
ZWE211 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-07010 |
ZWE211;NRE210..ENTRY,MID (L) |
4 | ||
| 77512-35140 |
ZWE211;NRE210..ENTRY,MID (J) |
4 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-07010 |
ZWE211;NRE210..ENTRY,MID (L) |
4 | ||
| 77512-35140 |
ZWE211;NRE210..ENTRY,MID (J) |
4 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-07010 |
ZWE211;NRE210..ENTRY,MID (L) |
4 | ||
| 77512-35140 |
ZWE211;NRE210..ENTRY,MID (J) |
4 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-02060 |
ZWE211 |
3 | ||
| 77512-47030 |
ZWE211 |
3 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-02060 |
ZWE211 |
3 | ||
| 77512-47030 |
ZWE211 |
3 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-02060 |
ZWE211 |
3 | ||
| 77512-47030 |
ZWE211 |
3 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-02060 |
ZWE211 |
3 | ||
| 77512-47030 |
ZWE211 |
3 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-02240 |
ZWE211 |
1 | ||
| 77606-47030 |
ZWE211 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02370 |
ZWE211 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-02260 |
ZWE211 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 77740-02260 |
ZWE211 |
1 | ||
| 77740-02280 |
ZWE211 |
1 | ||
| 77759A - HOSE, CHARCOAL CANISTER | ||||
| 77759-12120 |
ZWE211 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0F031 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-08D17 | ||||
| 90119-10995 | ||||
| 90119-C0519 | ||||
| 90119-C0522 | ||||
| 90119-C0526 | ||||
| 90301-08020 | ||||
| 90301-C0043 | ||||
| 90466-C0039 | ||||
| 96133-41501 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 8401 | ||||

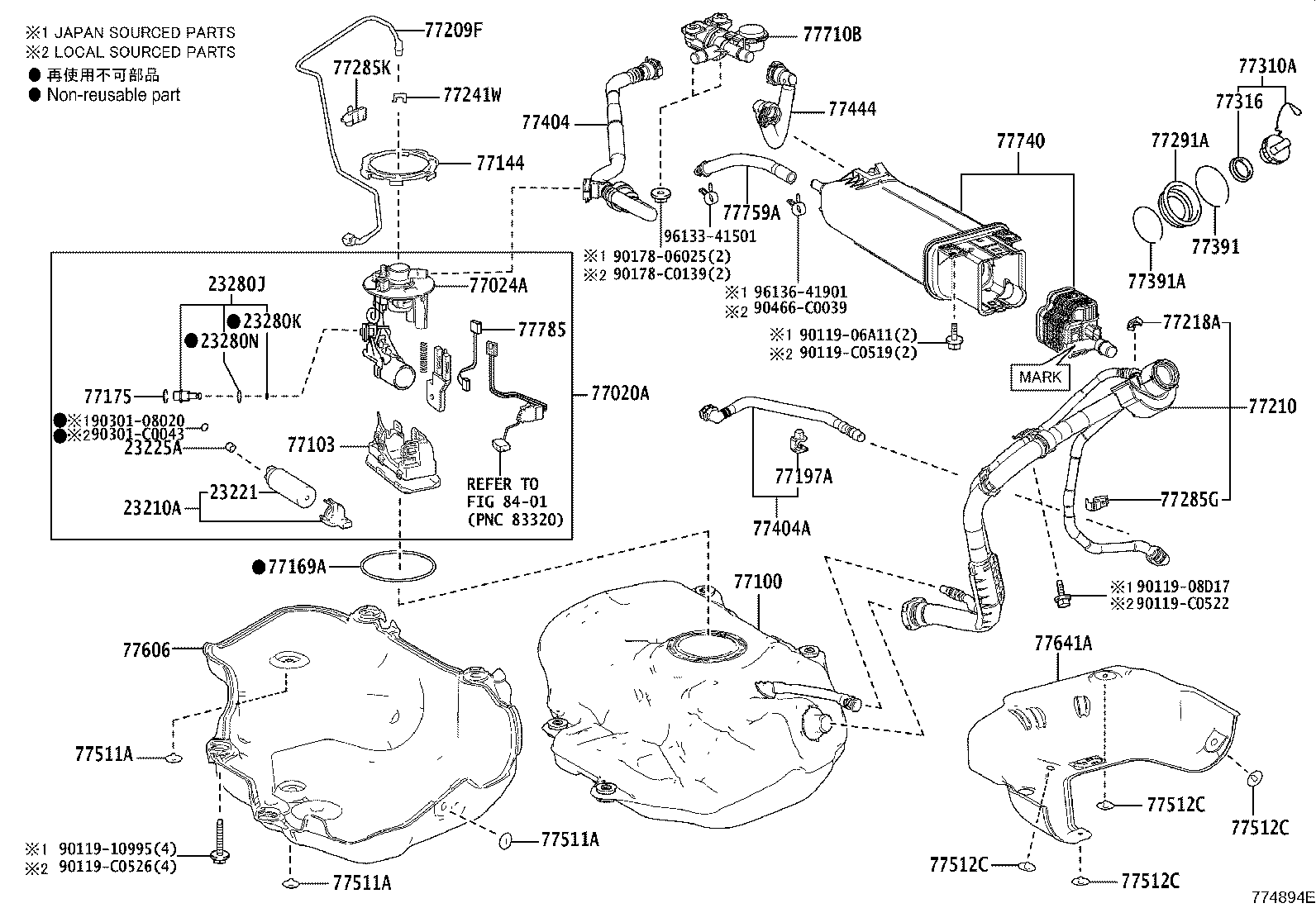

ILLUST NO. 1 OF 3(1908- )ZWE211
FUEL TANK, CHINA 6
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23210A - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-0T020 |
8ZRFXE..ZWE211 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-0Y010 |
8ZRFXE..ZWE211 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0H020 |
8ZRFXE..ZWE211;9NRFTS..NRE210..ENTRY,MID |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
8ZRFXE..ZWE211 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8ZRFXE..ZWE211;9NRFTS..NRE210..ENTRY,MID |
1 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
8ZRFXE..ZWE211;9NRFTS..NRE210..ENTRY,MID |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02C40 |
ZWE211 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02650 |
ZWE211 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02B70 |
ZWE211 |
1 | ||
| 77103 - SUB-TANK SUB-ASSY, FUEL | ||||
| 77103-02110 |
ZWE211 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-F4020 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
NRE210,ZWE211 (J) |
1 | ||
| 77169-F4050 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77169-0K030 |
NRE210,ZWE211 (L) |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-02060 |
ZWE211 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-47010 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02400 |
ZWE211 |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-02872 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77210-02870 |
NRE210,ZWE211 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-02140 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-02020 |
ZWE211 |
2 | ||
| 77241-33011 |
ZWE211 |
2 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-06580 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0R310 |
ZWE211 |
1 | ||
| 77285-30350 |
ZWE211 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02340 |
NRE210,ZWE211 |
1 | ||
| 77291-02341 |
MZEA11,NRE210,ZWE211 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-11010 |
ZWE211 |
1 | ||
| 77300-06100 |
ZWE211 |
1 | ||
| 77300-11010 |
ZWE211 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 77300-06110 |
ZWE211 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
ZWE211 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-02160 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0R030 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77404 - HOSE SUB-ASSY, FUEL TANK VENT | ||||
| 77404-12090 |
ZWE211 |
1 | ||
| 77404-02390 |
ZWE211 |
1 | ||
| 77404A - HOSE SUB-ASSY,FUEL TANK VENT | ||||
| 77404-02290 |
ZWE211 |
1 | ||
| 77444 - HOSE, FUEL TANK VENT | ||||
| 77404-02260 |
ZWE211 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 77404-02260 |
ZWE211 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-07010 |
ZWE211;NRE210..ENTRY,MID (L) |
4 | ||
| 77512-35140 |
ZWE211;NRE210..ENTRY,MID (J) |
4 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-07010 |
ZWE211;NRE210..ENTRY,MID (L) |
4 | ||
| 77512-35140 |
ZWE211;NRE210..ENTRY,MID (J) |
4 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-07010 |
ZWE211;NRE210..ENTRY,MID (L) |
4 | ||
| 77512-35140 |
ZWE211;NRE210..ENTRY,MID (J) |
4 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-02060 |
ZWE211 |
3 | ||
| 77512-47030 |
ZWE211 |
3 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-02060 |
ZWE211 |
3 | ||
| 77512-47030 |
ZWE211 |
3 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-02060 |
ZWE211 |
3 | ||
| 77512-47030 |
ZWE211 |
3 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-02060 |
ZWE211 |
3 | ||
| 77512-47030 |
ZWE211 |
3 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-02240 |
ZWE211 |
1 | ||
| 77606-47030 |
ZWE211 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-02370 |
ZWE211 |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-47020 |
ZWE211 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 77710-47020 |
ZWE211 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-02260 |
ZWE211 EXHAUST EMISSION CONTROL-CHINA 6 |
1 | ||
| 77740-02260 |
ZWE211 |
1 | ||
| 77740-02280 |
ZWE211 |
1 | ||
| 77759A - HOSE, CHARCOAL CANISTER | ||||
| 77759-12120 |
ZWE211 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-0F031 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-08D17 | ||||
| 90119-10995 | ||||
| 90119-C0519 | ||||
| 90119-C0522 | ||||
| 90119-C0526 | ||||
| 90178-06025 | ||||
| 90178-C0139 | ||||
| 90301-08020 | ||||
| 90301-C0043 | ||||
| 90466-C0039 | ||||
| 96133-41501 | ||||
| 96136-41901 | ||||
| Linked diagrams | ||||
| 8401 | ||||

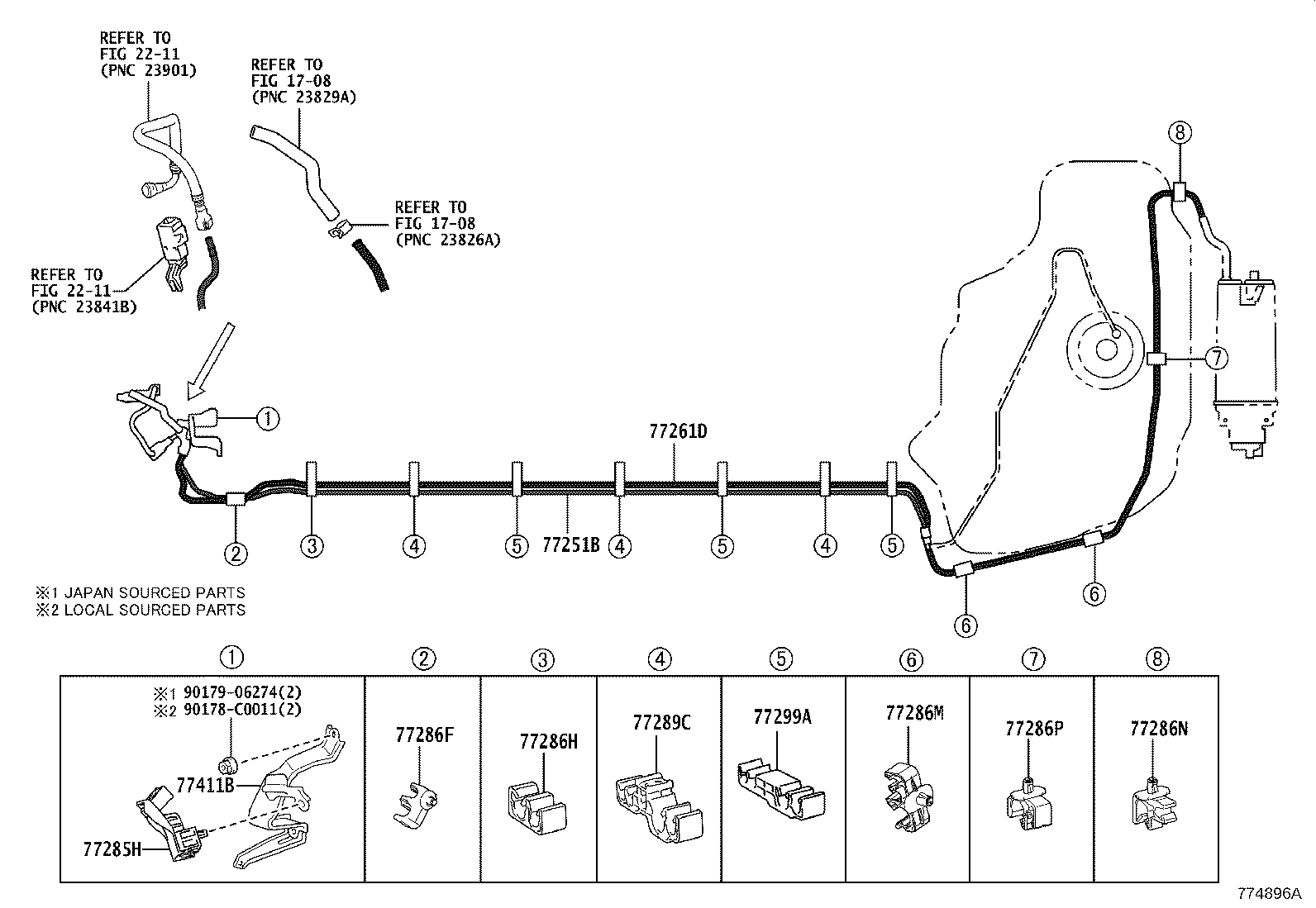

ILLUST NO. 2 OF 3(1908- )ZWE211
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02C90 |
ZWE211 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02A80 |
ZWE211 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-02330 |
ZWE211 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-02340 |
ZWE211 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-02170 |
ZWE211 |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77286-02320 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77299-02080 |
ZWE211 |
1 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77285-02270 |
ZWE211 |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02340 |
ZWE211 |
3 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-02350 |
ZWE211 |
3 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-02160 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90178-C0011 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

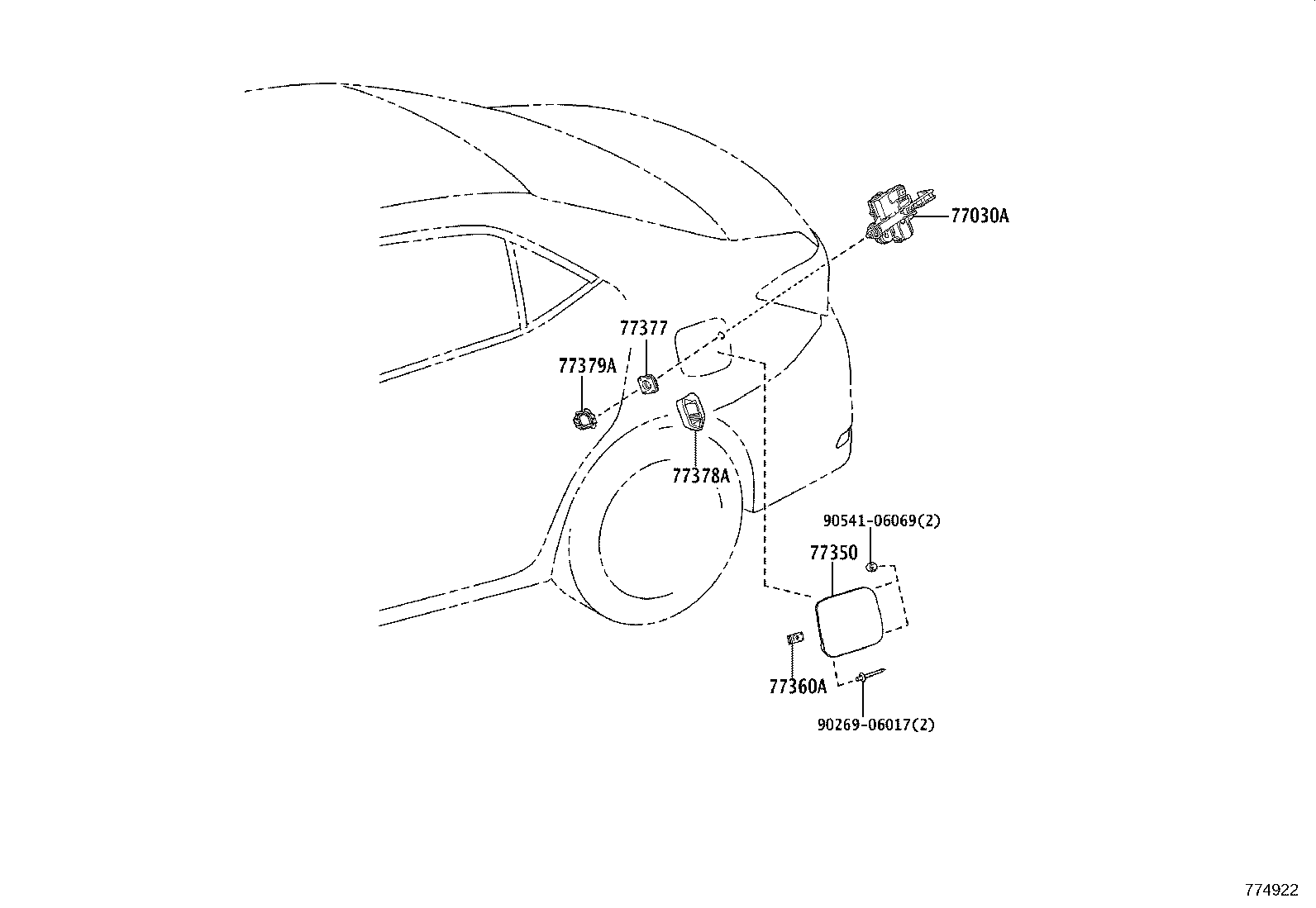

ILLUST NO. 3 OF 3(1908- )ZWE211
FUEL LID OPENER(ELECTRIC TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-02041 |
ZWE211 |
1 | ||
| 77030-02040 |
ZWE211 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02310 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-02190 |
ZWE211 |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77378-02040 |
ZWE211 |
1 | ||
| 77379A - SPACER, FUEL LID OPEN LEVER | ||||
| 77379-02020 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
| 90541-06069 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
