ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1908- )ZWE211

Click highlighted areas on diagram

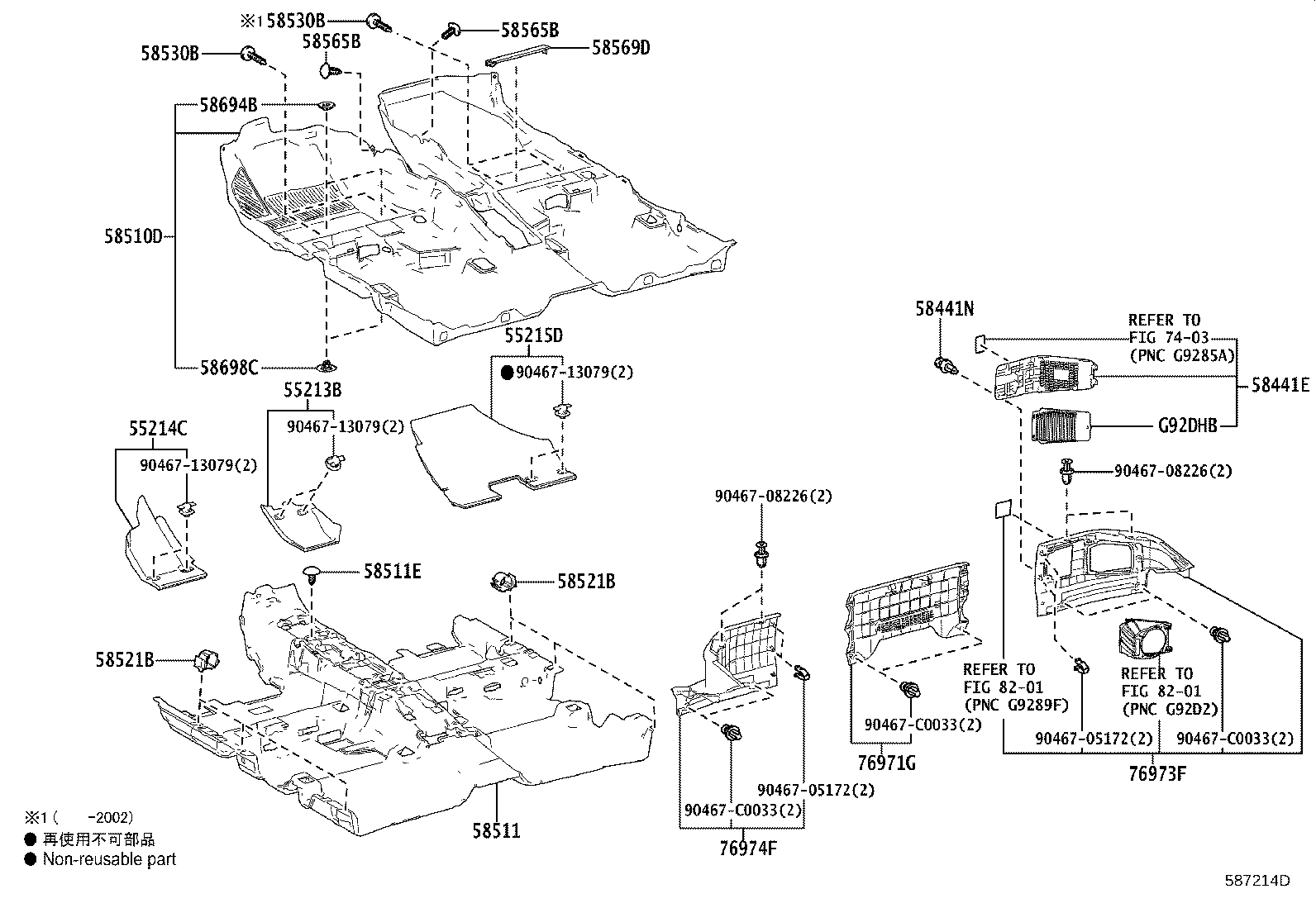

FLOOR CARPET

diagram 55213B 55214C 55215D 58441E 58441N 58510D 58511 58511E 58521B 58521B 58530B 58530B 58565B 58565B 58569D 58694B 58698C 7403 76971G 76973F 76974F 8201 8201 9046705172 9046705172 9046708226 9046708226 9046713079 9046713079 9046713079 90467C0033 90467C0033 90467C0033 G92DHB
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-02390

ZWE211;NRE210..ENTRY,MID

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-02350

ZWE211;NRE210..ENTRY,MID

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-02250

ZWE211;NRE210..ENTRY,MID

 1
58441E - COVER, BATTERY SERVICE HOLE
58441-02120C0

ZWE211

BLACK,TRIM0#,2#

 1
58441N - CLIP(FOR BATTERY SERVICE HOLE COVER)
90467-06165C3

ZWE211

BLACK,TRIM0#,2#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-02T50C0

ZWE211

BLACK,TRIM0#,2#

 1
58511 - MAT, FLOOR, FRONT
58511-02420

ZWE211

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-C0054C0

MZEA11,ZWE211;NRE210..ENTRY,MID

BLACK,TRIM0#,2#

 1
58521B - HOOK, FLOOR CARPET
58521-F4010

MZEA11,NRE210,ZWE211

 6
58521-33060

ZWE211;NRE210..ENTRY,MID

 6
58521B - HOOK, FLOOR CARPET
58521-F4010

MZEA11,NRE210,ZWE211

 6
58521-33060

ZWE211;NRE210..ENTRY,MID

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-C0059C0

NRE210,ZWE211

BLACK,TRIM0#,2#

 4
90467-C0059C0

ZWE211;NRE210..ENTRY,MID

BLACK,TRIM0#,2#

 2
64726-10020C2

MZEA11,NRE210,ZWE211

BLACK,TRIM0#,2#

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-C0059C0

NRE210,ZWE211

BLACK,TRIM0#,2#

 4
90467-C0059C0

ZWE211;NRE210..ENTRY,MID

BLACK,TRIM0#,2#

 2
64726-10020C2

MZEA11,NRE210,ZWE211

BLACK,TRIM0#,2#

 2
58565B - CLIP
90467-C0016C1

MZEA11,ZWE211;NRE210..ENTRY,MID

BLACK,TRIM0#,2#

 2
58565B - CLIP
90467-C0016C1

MZEA11,ZWE211;NRE210..ENTRY,MID

BLACK,TRIM0#,2#

 2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-02170C0

MZEA11,ZWE211;NRE210..ENTRY,MID

BLACK,TRIM0#,2#

 1
58694B - PLATE, MAT SET, UPPER
58694-78010

MZEA11,ZWE211;NRE210..ENTRY,MID

 2
58698C - PLATE, MAT SET, LOWER
58698-78010

MZEA11,ZWE211;NRE210..ENTRY,MID

 2
76971G - COVER, REAR UNDER
76971-02080C0

ZWE211

BLACK,TRIM0#,2#

 1
76973F - COVER, REAR UNDER SIDE, RH
76973-02080C0

ZWE211

BLACK,TRIM0#,2#

 1
76974F - COVER, REAR UNDER SIDE, LH
76974-02080C0

ZWE211

BLACK,TRIM0#,2#

 1
G92DHB - FILTER, HV BATTERY INTAKE, NO.1
G92DH-02030

ZWE211

 1
Common parts
90467-05172
90467-08226
90467-13079
90467-C0033
Linked diagrams
7403
8201

ILLUST NO. 2 OF 2(1908- )

Click highlighted areas on diagram

FLOOR MAT

diagram 58510H
Part # Description Qty Price
58510H - MAT ASSY, FLOOR
58510-YYR40C0

MZEA11,ZWE211;NRE210..ENTRY,MID

FLOOR MAT-WITH(FOR ACCESSORY),BLACK,TRIM0#,2#

 1
