ZWE211L-GEXEBC (2019)
Toyota Corolla

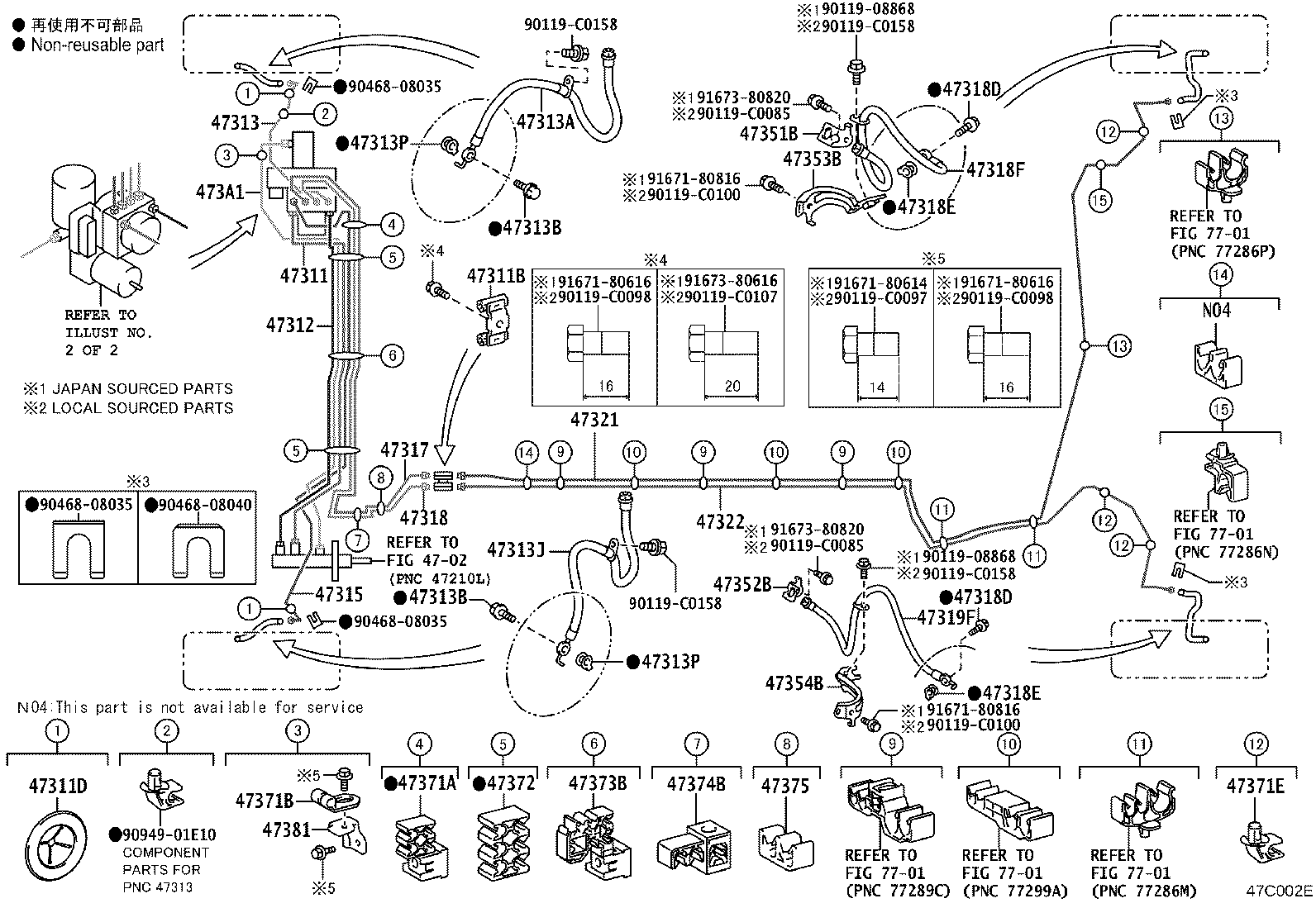

ILLUST NO. 1 OF 2(1908- )ZWE211
BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02C30 |
ZWE211 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
ZWE211;NRE210..ENTRY,MID (J) |
1 | ||
| 90412-C0004 |
ZWE211;NRE210..ENTRY,MID (L) |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-25037 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02E40 |
ZWE211 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02D10 |
ZWE211 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-C2082 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-C0001 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-C2083 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02600 |
ZWE211 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02C00 |
ZWE211 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02C20 |
ZWE211 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZWE211;NRE210..ENTRY,MID (J) |
2 | ||
| 90401-C0001 |
ZWE211;NRE210..ENTRY,MID (L) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZWE211;NRE210..ENTRY,MID (J) |
2 | ||
| 90401-C0001 |
ZWE211;NRE210..ENTRY,MID (L) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZWE211;NRE210..ENTRY,MID |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-C2086 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-C2087 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02730 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02730 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-F4040 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-F4040 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-02260 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-02260 |
ZWE211;NRE210..ENTRY,MID |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01E51 |
ZWE211 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90461-10854 |
ZWE211 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01E10 |
ZWE211;NRE210..ENTRY,MID |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01D99 |
ZWE211 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E50 |
ZWE211 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01E33 |
ZWE211 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D91 |
ZWE211 |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-02190 |
ZWE211 |
1 | ||
| 473A1 - TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER | ||||
| 473A1-02120 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-C0085 | ||||
| 90119-C0097 | ||||
| 90119-C0098 | ||||
| 90119-C0100 | ||||
| 90119-C0107 | ||||
| 90119-C0158 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90949-01E10 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

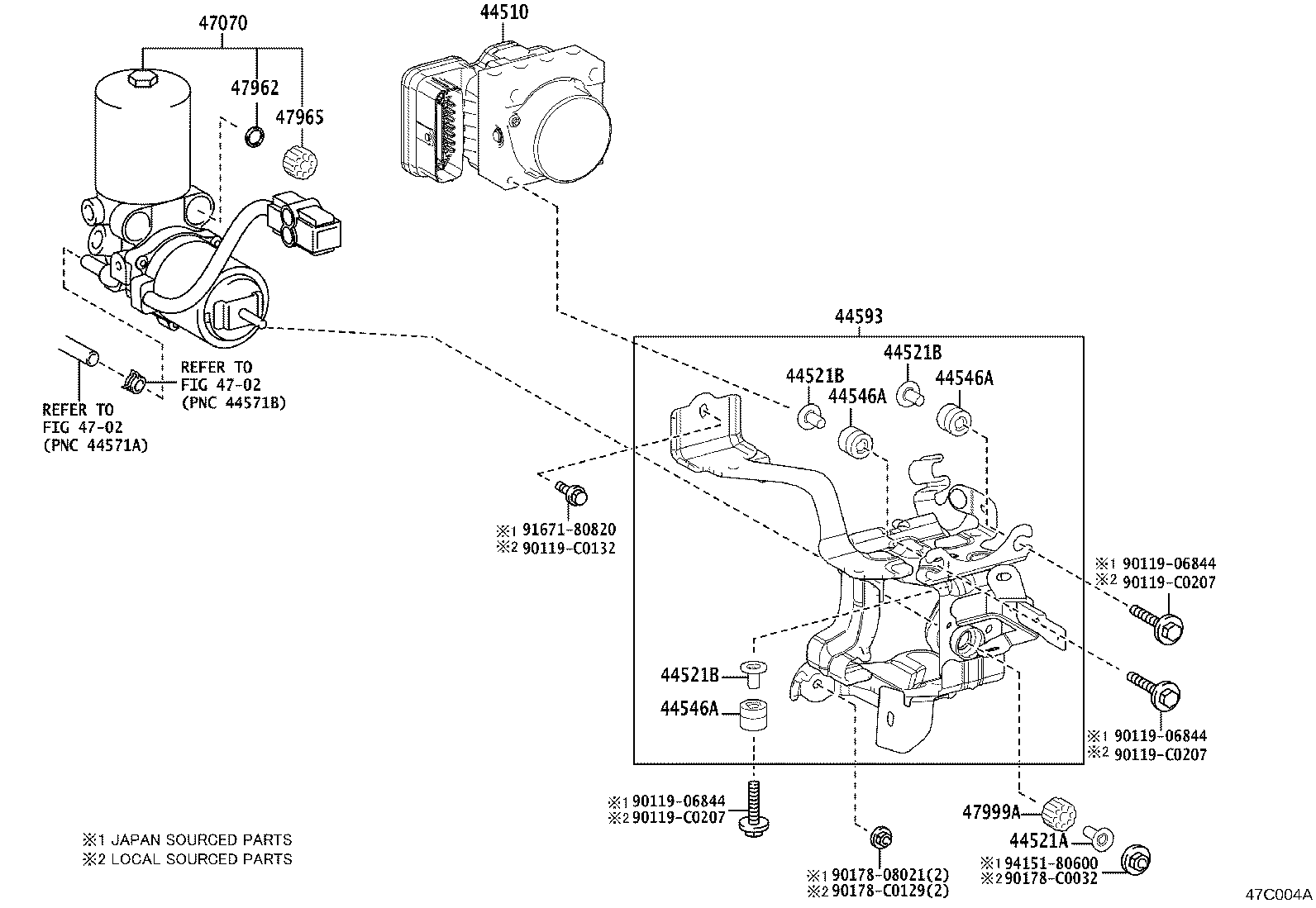

ILLUST NO. 2 OF 2(1908- )ZWE211
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-12D90 |
ZWE211 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-02030 |
ZWE211 |
1 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-12050 |
ZWE211 |
3 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-12050 |
ZWE211 |
3 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-12050 |
ZWE211 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
ZWE211 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
ZWE211 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
ZWE211 |
3 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44590-02640 |
ZWE211 |
1 | ||
| 47070 - PUMP ASSY, BRAKE BOOSTER | ||||
| 47070-47090 |
ZWE211 |
1 | ||
| 47962 - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-60090 |
ZWE211 |
2 | ||
| 47965 - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
ZWE211 |
2 | ||
| 47999A - BUSH(FOR BRAKE TRACTION ACTUATOR BRACKET) | ||||
| 47965-30010 |
ZWE211 |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-C0132 | ||||
| 90119-C0207 | ||||
| 90178-08021 | ||||
| 90178-C0032 | ||||
| 90178-C0129 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4702 | ||||
