ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )ZWE211

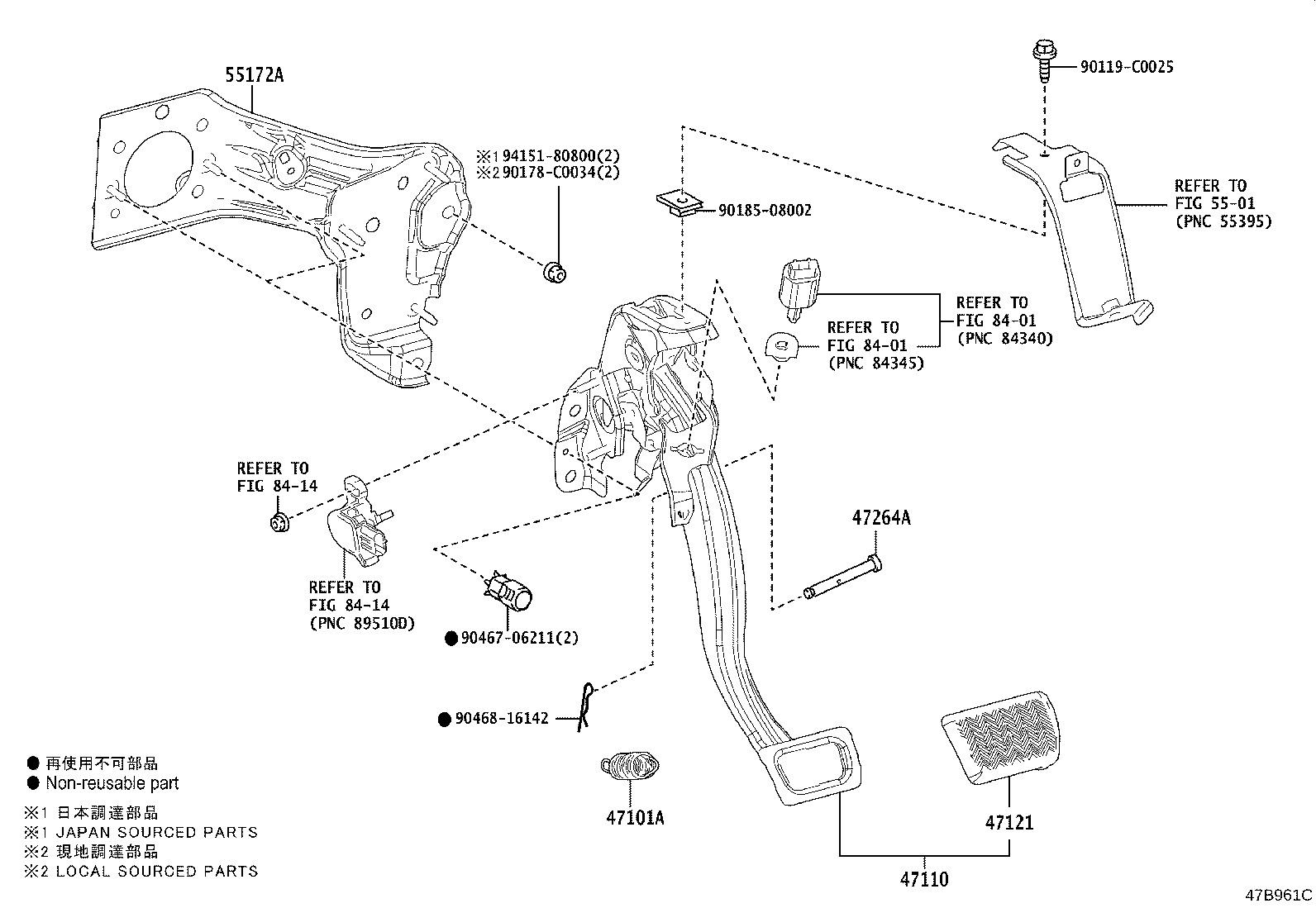

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 5501 55172A 8401 8401 8414 8414 90119C0025 90178C0034 9018508002 9046706211 9046816142 9415180800
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15009

ZWE211

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-02880

ZWE211

 1
47121 - PAD, BRAKE PEDAL
47121-02180

ZWE211;NRE210..ENTRY,MID

 1
47264A - PIN(FOR PUSH ROD)
90249-08221

ZWE211;NRE210..ENTRY,MID

 1
55172A - BASE, BRAKE PEDAL SUPPORT
55172-02210

ZWE211;NRE210..ENTRY,MID

 1
Common parts
90119-C0025
90178-C0034
90185-08002
90467-06211
90468-16142
94151-80800
Linked diagrams
5501
8401
8414
