ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )8ZRFXE

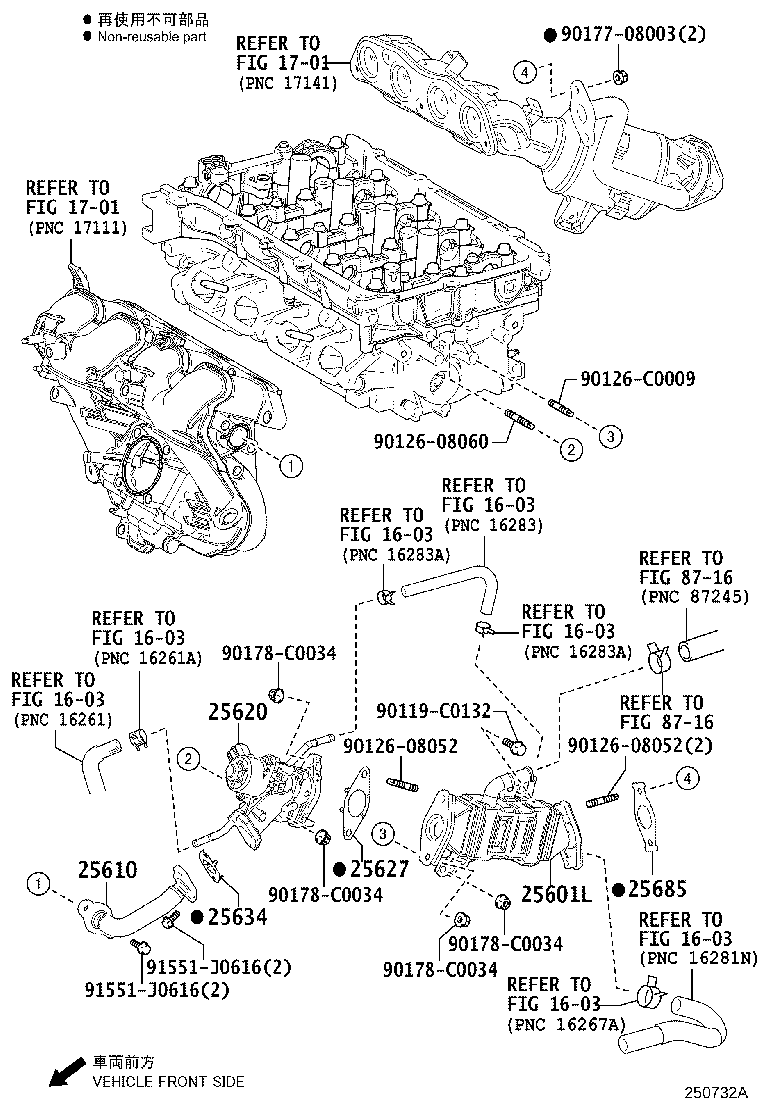

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 1603 1701 1701 25601L 25610 25620 25627 25634 25685 8716 8716 90119C0132 9012608052 9012608052 9012608060 90126C0009 9017708003 90178C0034 90178C0034 90178C0034 90178C0034 91551J0616 91551J0616
Part # Description Qty Price
25601L - PIPE SUB-ASSY, EGR W/COOLER
25601-37030

8ZRFXE..ZWE211

 1
25610 - PIPE ASSY, EGR
25610-0T010

8ZRFXE..ZWE211

 1
25620 - VALVE ASSY, EGR
25620-37150

8ZRFXE..ZWE211

 1
25627 - GASKET, EGR VALVE
25627-37020

8ZRFXE..ZWE211

 1
25634 - GASKET, EGR PIPE
25634-37020

8ZRFXE..ZWE211

 1
25685 - GASKET, EGR COOLER, NO.1
25685-37020

8ZRFXE..ZWE211

 1
Common parts
90119-C0132
90126-08052
90126-08060
90126-C0009
90177-08003
90178-C0034
91551-J0616
Linked diagrams
1603
1701
8716
