ZWE211L-GEXEBC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1908- )8ZRFXE

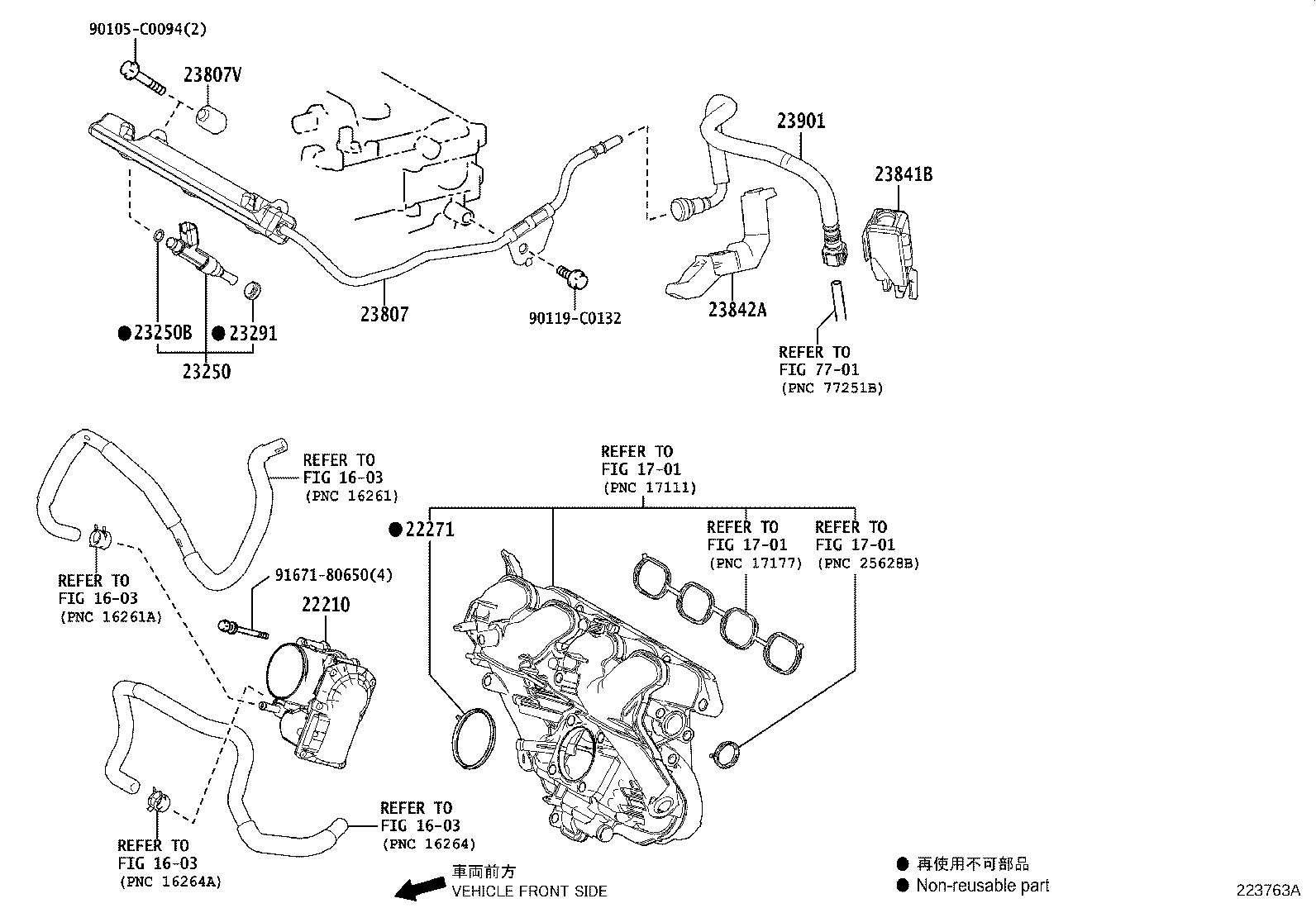

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-0T060 |
8ZRFXE..ZWE211 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-37020 |
8ZRFXE..ZWE211 (J) |
1 | ||
| 22271-0T040 |
8ZRFXE..ZWE211 (L) |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-09440 |
8ZRFXE..ZWE211 (L) |
4 | ||
| 23209-39295 |
8ZRFXE..ZWE211 (J) |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-C0072 |
8ZRFXE..ZWE211 (L) |
4 | ||
| 90301-07037 |
8ZRFXE..ZWE211 (J) |
4 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-0P020 |
8ZRFXE..ZWE211 |
4 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-37100 |
8ZRFXE..ZWE211 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-37010 |
8ZRFXE..ZWE211 |
2 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-37081 |
8ZRFXE..ZWE211 |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23841-37131 |
8ZRFXE..ZWE211 (J) |
1 | ||
| 23841-0T090 |
8ZRFXE..ZWE211 (L) |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-0T430 |
8ZRFXE..ZWE211 |
1 | ||
| Common parts | ||||
| 90105-C0094 | ||||
| 90119-C0132 | ||||
| 91671-80650 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 7701 | ||||
