ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )8ZRFXE

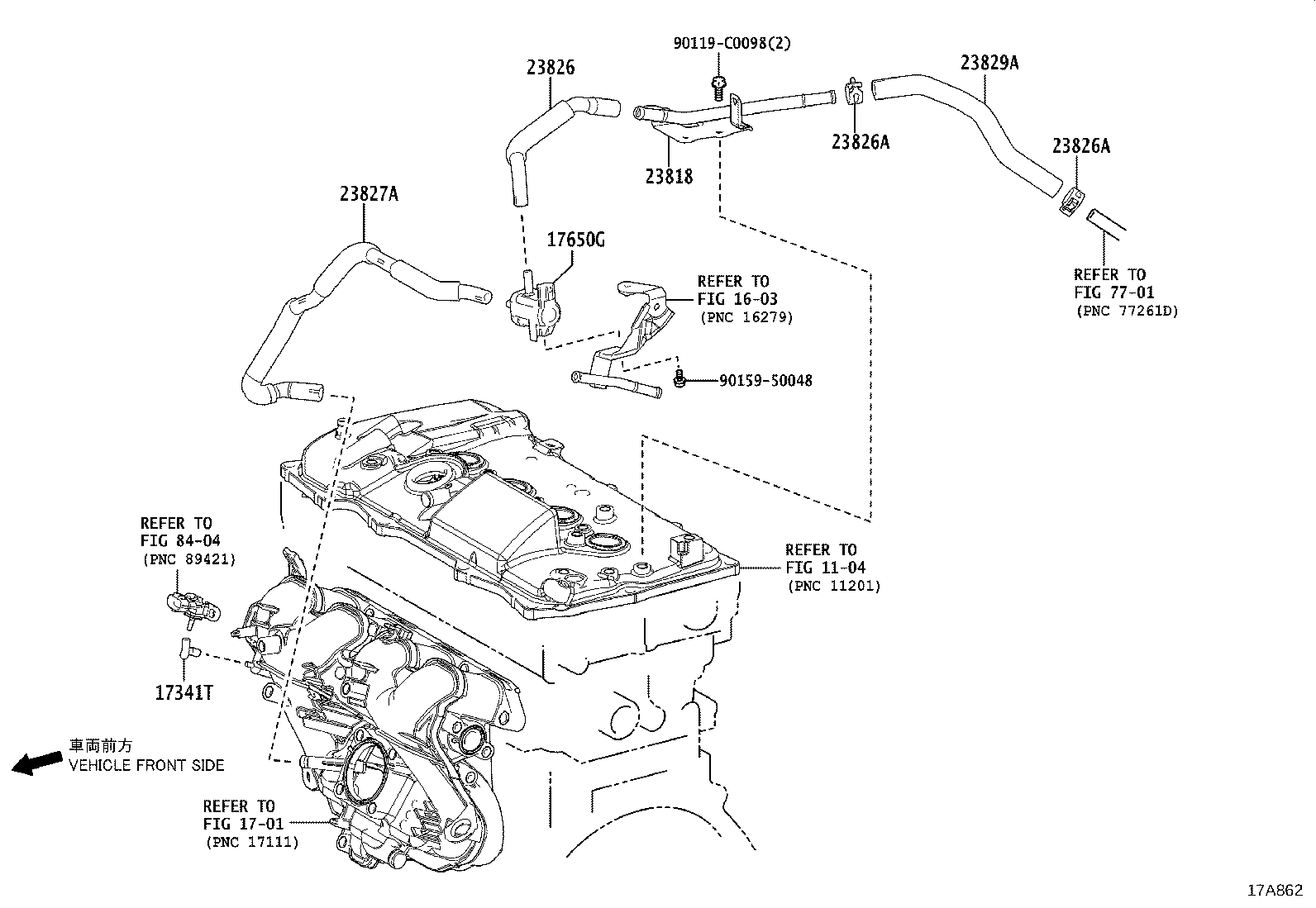

Click highlighted areas on diagram

diagram 1104 1603 1701 17341T 17650G 23818 23826 23826A 23826A 23827A 23829A 7701 8404 90119C0098 9015950048
Part # Description Qty Price
17341T - HOSE, AIR, NO.1
17341-0T030

8ZRFXE..ZWE211

 1
17650G - VALVE, DUTY VACUUM SWITCHING
90910-12276

8ZRFXE..ZWE211

 1
23818 - PIPE, FUEL VAPOR FEED
23818-0T010

8ZRFXE..ZWE211

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-0T500

8ZRFXE..ZWE211

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-C0039

8ZRFXE..ZWE211

(L)

 1
96136-41901

8ZRFXE..ZWE211

(J)

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-C0039

8ZRFXE..ZWE211

(L)

 1
96136-41901

8ZRFXE..ZWE211

(J)

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-0T070

8ZRFXE..ZWE211

 1
23829A - HOSE, FUEL VAPOR FEED
23826-0T540

8ZRFXE..ZWE211

 1
Common parts
90119-C0098
90159-50048
Linked diagrams
1104
1603
1701
7701
8404
