ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )8ZRFXE

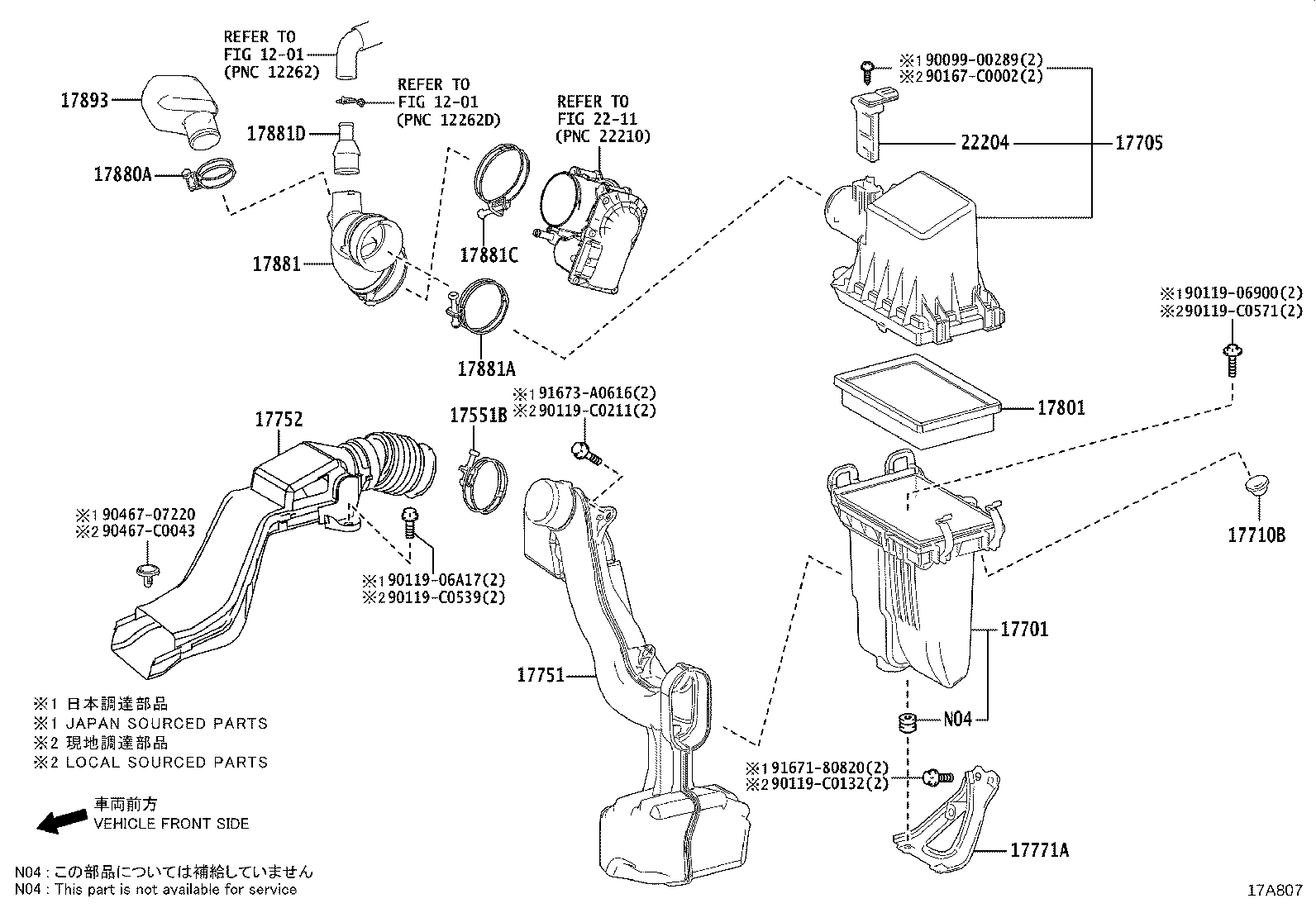

Click highlighted areas on diagram

diagram 1201 1201 17551B 17701 17705 17710B 17751 17752 17771A 17801 17880A 17881 17881A 17881C 17881D 17893 2211 22204 9009900289 9011906900 9011906A17 90119C0132 90119C0211 90119C0539 90119C0571 90167C0002 9046707220 90467C0043 9167180820 91673A0616
Part # Description Qty Price
17551B - CLAMP(FOR AIR CLEANER INLET, NO.1)
96111-10650

8ZRFXE..ZWE211

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0T290

8ZRFXE..ZWE211

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0T340

8ZRFXE..ZWE211

 1
17705-0T340

8ZRFXE..ZWE211

EXHAUST EMISSION CONTROL-CHINA 6

 1
17705-0T380

8ZRFXE..ZWE211

 1
17705-0T380

8ZRFXE..ZWE211

 1
17710B - GROMMET
90480-18006

8ZRFXE..ZWE211

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0T300

8ZRFXE..ZWE211

 1
17752 - INLET, AIR CLEANER, NO.2
17752-0T161

8ZRFXE..ZWE211

 1
17771A - BRACKET, AIR CLEANER
17771-0T040

8ZRFXE..ZWE211

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21060

8ZRFXE..ZWE211

(J)

 1
17801-0T110

8ZRFXE..ZWE211

(L)

 1
17880A - CLAMP, HOSE
96111-10430

8ZRFXE..ZWE211

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0T600

8ZRFXE..ZWE211

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

8ZRFXE..ZWE211

 1
17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

8ZRFXE..ZWE211

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
17878-0V030

8ZRFXE..ZWE211

 1
17893 - RESONATOR, INTAKE AIR
17893-0T140

8ZRFXE..ZWE211

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75030

8ZRFXE..ZWE211

(J)

 1
22204-0Y020

8ZRFXE..ZWE211

(L)

 1
Common parts
90099-00289
90119-06900
90119-06A17
90119-C0132
90119-C0211
90119-C0539
90119-C0571
90167-C0002
90467-07220
90467-C0043
91671-80820
91673-A0616
Linked diagrams
1201
2211
