ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

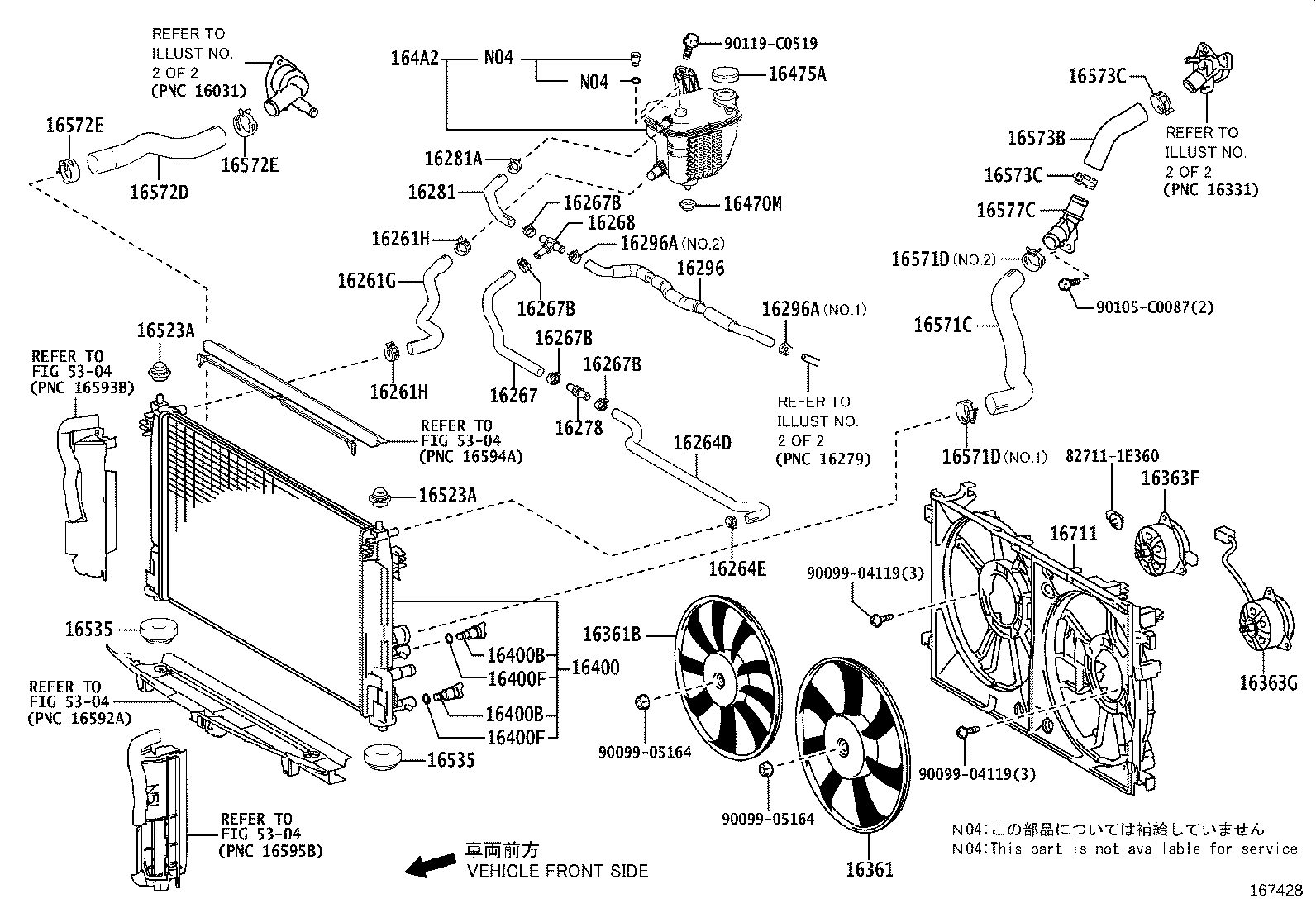

ILLUST NO. 1 OF 2(1908- )8ZRFXE

Click highlighted areas on diagram

diagram 16261G 16261H 16261H 16264D 16264E 16267 16267B 16267B 16267B 16267B 16268 16278 16281 16281A 16296 16296A 16296A 16361 16361B 16363F 16363G 16400 16400B 16400B 16400F 16400F 16470M 16475A 164A2 16523A 16523A 16535 16535 16571C 16571D 16571D 16572D 16572E 16572E 16573B 16573C 16573C 16577C 16711 5304 5304 5304 5304 827111E360 9009904119 9009904119 9009905164 9009905164 90105C0087 90119C0519
Part # Description Qty Price
16261G - HOSE, WATER BY-PASS, NO.1
16261-0T440

8ZRFXE..ZWE211

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-C0039

8ZRFXE..ZWE211

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
90466-C0039

8ZRFXE..ZWE211

 2
16264D - HOSE, WATER BY-PASS, NO.2
16264-0T390

8ZRFXE..ZWE211

 1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-C0014

8ZRFXE..ZWE211

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-0T350

8ZRFXE..ZWE211

 1
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-C0039

8ZRFXE..ZWE211

 4
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-C0039

8ZRFXE..ZWE211

 4
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-C0039

8ZRFXE..ZWE211

 4
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-C0039

8ZRFXE..ZWE211

 4
16268 - PIPE, WATER BY-PASS, NO.1
16268-F2030

8ZRFXE..ZWE211

 1
16278 - PIPE, WATER BY-PASS, NO.2
16268-F2040

8ZRFXE..ZWE211

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-0T280

8ZRFXE..ZWE211

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90466-C0024

8ZRFXE..ZWE211

 1
16296 - HOSE, WATER BY-PASS, NO.8
16296-0T080

8ZRFXE..ZWE211

 1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
90466-C0013

8ZRFXE..ZWE211

NO.1

 1
90466-C0014

8ZRFXE..ZWE211

NO.2

 1
16296A - CLIP(FOR WATER BY-PASS HOSE NO.8)
90466-C0013

8ZRFXE..ZWE211

NO.1

 1
90466-C0014

8ZRFXE..ZWE211

NO.2

 1
16361 - FAN
16361-0T480

8ZRFXE..ZWE211

 1
16361B - FAN, NO.2
16361-0T490

8ZRFXE..ZWE211

 1
16363F - MOTOR, COOLING FAN, RH
16363-0T270

8ZRFXE..ZWE211

 1
16363G - MOTOR, COOLING FAN, LH
16363-0T280

8ZRFXE..ZWE211

 1
16400 - RADIATOR ASSY
16400-0T541

8ZRFXE..ZWE211

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-0H290

8ZRFXE..ZWE211

 2
16400B - PLUG, RADIATOR DRAIN COCK
16417-0H290

8ZRFXE..ZWE211

 2
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-0P460

8ZRFXE..ZWE211

 2
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-0P460

8ZRFXE..ZWE211

 2
16470M - GROMMET
90480-18010

8ZRFXE..ZWE211

(J)

 1
90480-C0007

8ZRFXE..ZWE211

(L)

 1
16475A - CAP, RESERVE TANK
16475-0T081

8ZRFXE..ZWE211

(L)

 1
16475-28140

8ZRFXE..ZWE211

(J)

 1
164A2 - TANK, RESERVE SEALED W/O CAP
164A2-F2010

8ZRFXE..ZWE211

 1
16523A - CUSHION, RADIATOR SUPPORT
16523-F2010

8ZRFXE..ZWE211

 2
16523A - CUSHION, RADIATOR SUPPORT
16523-F2010

8ZRFXE..ZWE211

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-40021

8ZRFXE..ZWE211

(J)

 2
90480-T0007

8ZRFXE..ZWE211

(L)

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-40021

8ZRFXE..ZWE211

(J)

 2
90480-T0007

8ZRFXE..ZWE211

(L)

 2
16571C - HOSE, RADIATOR, NO.1
16571-0T440

8ZRFXE..ZWE211

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-C0009

8ZRFXE..ZWE211

NO.1

 1
90466-C0008

8ZRFXE..ZWE211

NO.2

 1
16571D - CLIP, RADIATOR HOSE, NO.1
90466-C0009

8ZRFXE..ZWE211

NO.1

 1
90466-C0008

8ZRFXE..ZWE211

NO.2

 1
16572D - HOSE, RADIATOR, NO.2
16572-0T370

8ZRFXE..ZWE211

 1
16572E - CLIP, RADIATOR HOSE, NO.2
90466-C0009

8ZRFXE..ZWE211

 2
16572E - CLIP, RADIATOR HOSE, NO.2
90466-C0009

8ZRFXE..ZWE211

 2
16573B - HOSE, RADIATOR, NO.3
16573-0T280

8ZRFXE..ZWE211

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90466-C0008

8ZRFXE..ZWE211

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90466-C0008

8ZRFXE..ZWE211

 2
16577C - PIPE, RADIATOR
16577-0T260

8ZRFXE..ZWE211

 1
16711 - SHROUD, FAN
16711-0T360

8ZRFXE..ZWE211

 1
Common parts
82711-1E360
90099-04119
90099-05164
90105-C0087
90119-C0519
Linked diagrams
5304
