ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )8ZRFXE

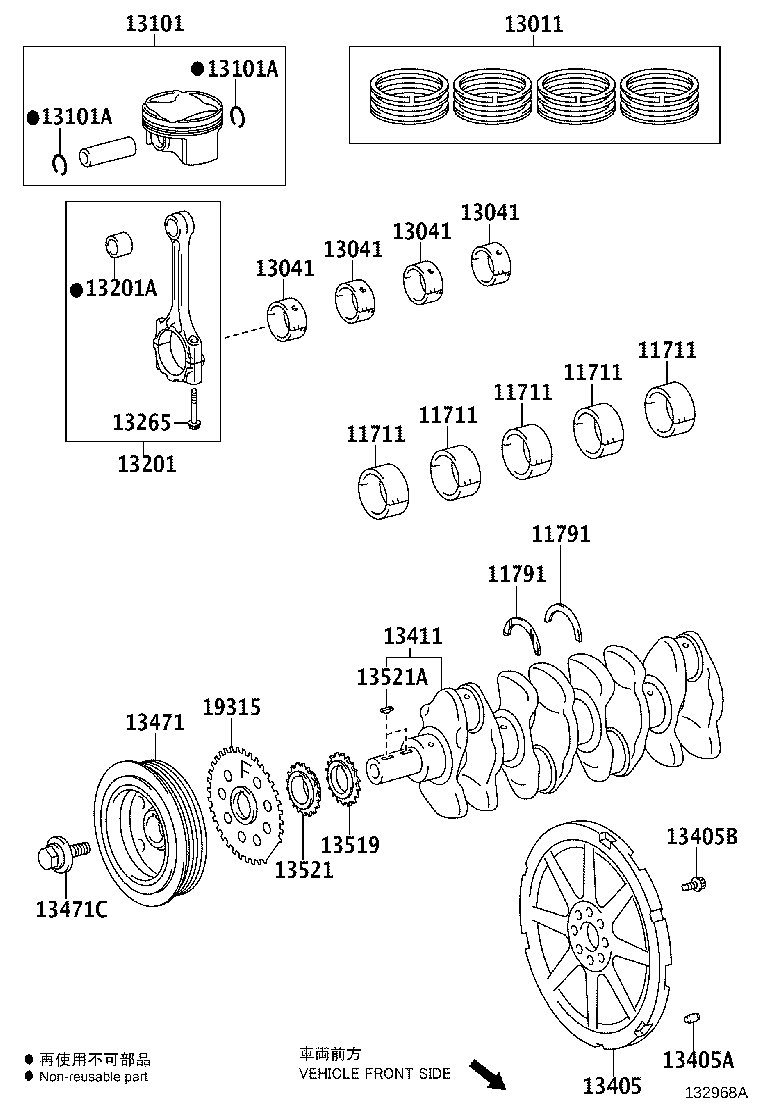

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13101 13101A 13101A 13201 13201A 13265 13405 13405A 13405B 13411 13471 13471C 13519 13521 13521A 19315
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-0T07002

8ZRFXE..ZWE211

MARK2,REFER REPAIR MANUAL

 5
11701-0T07001

8ZRFXE..ZWE211

MARK1,REFER REPAIR MANUAL

 5
11701-0T07004

8ZRFXE..ZWE211

MARK4,REFER REPAIR MANUAL

 5
11701-0T07003

8ZRFXE..ZWE211

MARK3,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-0T07002

8ZRFXE..ZWE211

MARK2,REFER REPAIR MANUAL

 5
11701-0T07001

8ZRFXE..ZWE211

MARK1,REFER REPAIR MANUAL

 5
11701-0T07004

8ZRFXE..ZWE211

MARK4,REFER REPAIR MANUAL

 5
11701-0T07003

8ZRFXE..ZWE211

MARK3,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-0T07002

8ZRFXE..ZWE211

MARK2,REFER REPAIR MANUAL

 5
11701-0T07001

8ZRFXE..ZWE211

MARK1,REFER REPAIR MANUAL

 5
11701-0T07004

8ZRFXE..ZWE211

MARK4,REFER REPAIR MANUAL

 5
11701-0T07003

8ZRFXE..ZWE211

MARK3,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-0T07002

8ZRFXE..ZWE211

MARK2,REFER REPAIR MANUAL

 5
11701-0T07001

8ZRFXE..ZWE211

MARK1,REFER REPAIR MANUAL

 5
11701-0T07004

8ZRFXE..ZWE211

MARK4,REFER REPAIR MANUAL

 5
11701-0T07003

8ZRFXE..ZWE211

MARK3,REFER REPAIR MANUAL

 5
11711 - BEARING, CRANKSHAFT
11701-0T07002

8ZRFXE..ZWE211

MARK2,REFER REPAIR MANUAL

 5
11701-0T07001

8ZRFXE..ZWE211

MARK1,REFER REPAIR MANUAL

 5
11701-0T07004

8ZRFXE..ZWE211

MARK4,REFER REPAIR MANUAL

 5
11701-0T07003

8ZRFXE..ZWE211

MARK3,REFER REPAIR MANUAL

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-0T020

8ZRFXE..ZWE211

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-0T020

8ZRFXE..ZWE211

STD

 2
13011 - RING SET, PISTON
13011-0T200

8ZRFXE..ZWE211

STD

 1
13041 - BEARING, CONNECTING ROD
13041-0T07003

8ZRFXE..ZWE211

MARK3,REFER REPAIR MANUAL

 4
13041-0T07002

8ZRFXE..ZWE211

MARK2,REFER REPAIR MANUAL

 4
13041-0T07001

8ZRFXE..ZWE211

MARK1,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-0T07003

8ZRFXE..ZWE211

MARK3,REFER REPAIR MANUAL

 4
13041-0T07002

8ZRFXE..ZWE211

MARK2,REFER REPAIR MANUAL

 4
13041-0T07001

8ZRFXE..ZWE211

MARK1,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-0T07003

8ZRFXE..ZWE211

MARK3,REFER REPAIR MANUAL

 4
13041-0T07002

8ZRFXE..ZWE211

MARK2,REFER REPAIR MANUAL

 4
13041-0T07001

8ZRFXE..ZWE211

MARK1,REFER REPAIR MANUAL

 4
13041 - BEARING, CONNECTING ROD
13041-0T07003

8ZRFXE..ZWE211

MARK3,REFER REPAIR MANUAL

 4
13041-0T07002

8ZRFXE..ZWE211

MARK2,REFER REPAIR MANUAL

 4
13041-0T07001

8ZRFXE..ZWE211

MARK1,REFER REPAIR MANUAL

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-0T450

8ZRFXE..ZWE211

STD

 4
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

8ZRFXE..ZWE211

 8
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-20064

8ZRFXE..ZWE211

 8
13201 - ROD SUB-ASSY, CONNECTING
13201-09D30

8ZRFXE..ZWE211

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73151

8ZRFXE..ZWE211

 4
13265 - BOLT, CONNECTING ROD
13265-0T020

8ZRFXE..ZWE211

 8
13405 - FLYWHEEL SUB-ASSY
13451-0T090

8ZRFXE..ZWE211

 1
13405A - PIN, STRAIGHT(FOR FLYWHEEL)
90250-C0011

8ZRFXE..ZWE211

L=18,OD=8

 3
13405B - BOLT, FLYWHEEL SETTING
90913-C1002

8ZRFXE..ZWE211

 8
13411 - CRANKSHAFT
13401-0T021

8ZRFXE..ZWE211

 1
13471 - PULLEY, CRANKSHAFT
13470-0T030

8ZRFXE..ZWE211

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-C0124

8ZRFXE..ZWE211

 1
13519 - GEAR, OIL PUMP DRIVE
13519-0T010

8ZRFXE..ZWE211

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-0T040

8ZRFXE..ZWE211

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
90280-04003

8ZRFXE..ZWE211

 2
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-0T020

8ZRFXE..ZWE211

 1
