ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )8ZRFXE

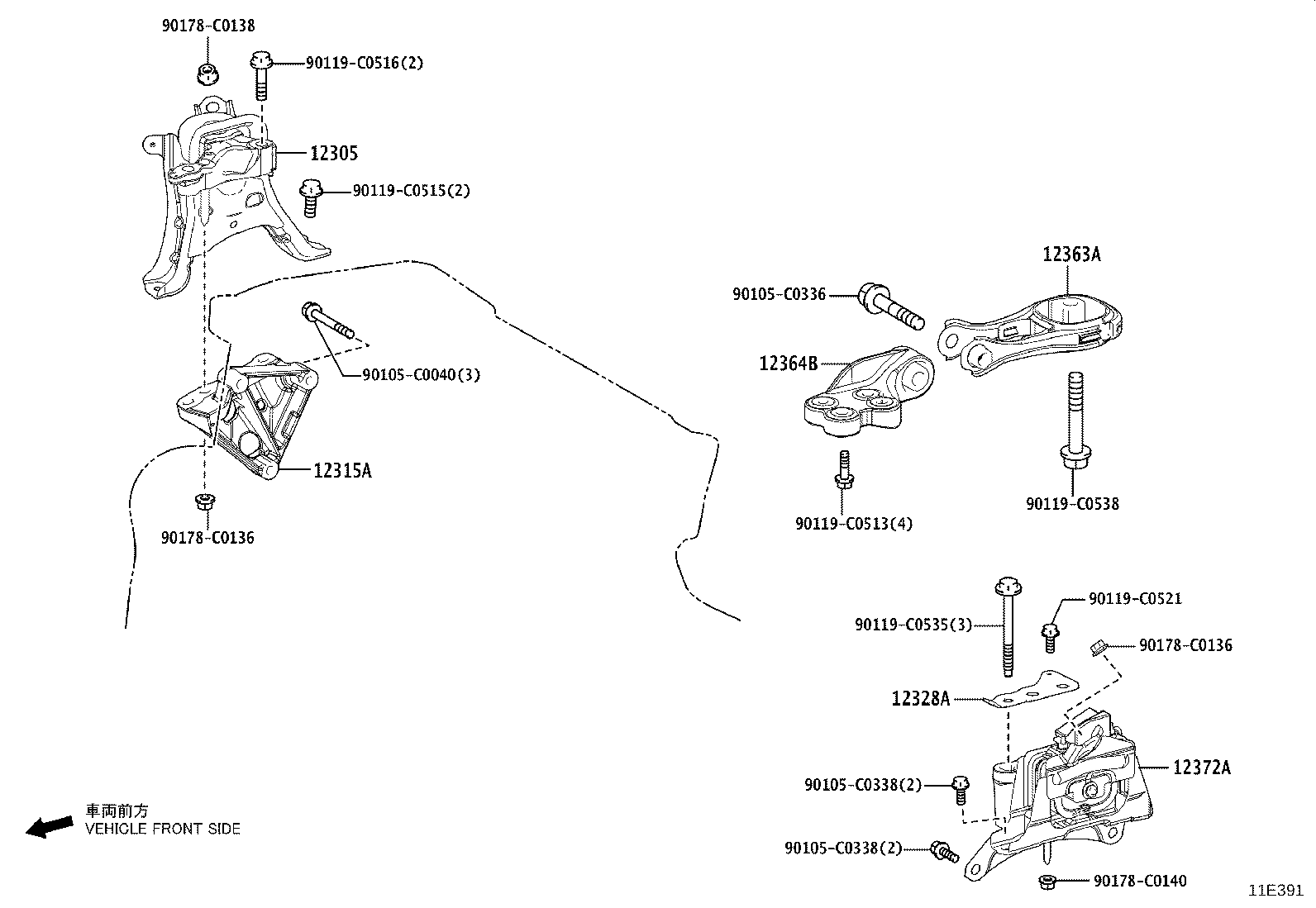

Click highlighted areas on diagram

diagram 12305 12315A 12328A 12363A 12364B 12372A 90105C0040 90105C0336 90105C0338 90105C0338 90119C0513 90119C0515 90119C0516 90119C0521 90119C0535 90119C0538 90178C0136 90178C0136 90178C0138 90178C0140
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-0T410

8ZRFXE..ZWE211

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-0T060

8ZRFXE..ZWE211

 1
12328A - STAY, ENGINE MOUNTING, NO.2 LH
12328-0T090

8ZRFXE..ZWE211

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0T160

8ZRFXE..ZWE211

 1
12364B - ROD, ENGINE MOVING CONTROL, NO.2
12364-0T130

8ZRFXE..ZWE211

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-0T640

8ZRFXE..ZWE211

 1
Common parts
90105-C0040
90105-C0336
90105-C0338
90119-C0513
90119-C0515
90119-C0516
90119-C0521
90119-C0535
90119-C0538
90178-C0136
90178-C0138
90178-C0140
