ZWE211L-GEXEBC (2019)

Toyota Corolla

Production Aug 2019 - Sep 9999
Engine 8ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1908- )8ZRFXE

Click highlighted areas on diagram

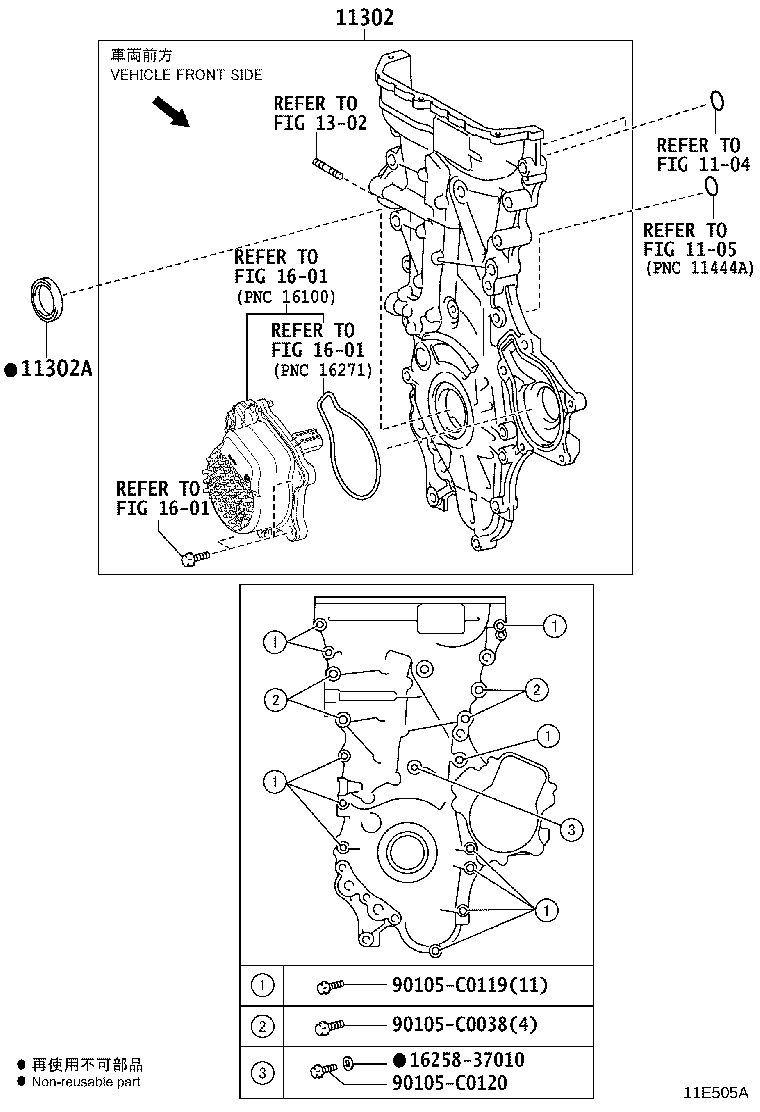

diagram 1104 1105 11302 11302A 1302 1601 1601 1601 1625837010 90105C0038 90105C0119 90105C0120
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-0T190

8ZRFXE..ZWE211

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-T0024

8ZRFXE..ZWE211

 1
Common parts
16258-37010
90105-C0038
90105-C0119
90105-C0120
Linked diagrams
1104
1105
1302
1601
