ZWE211L-GEXEBC (2019)
Toyota Corolla
Production
Aug 2019
-
Sep 9999
Engine
8ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

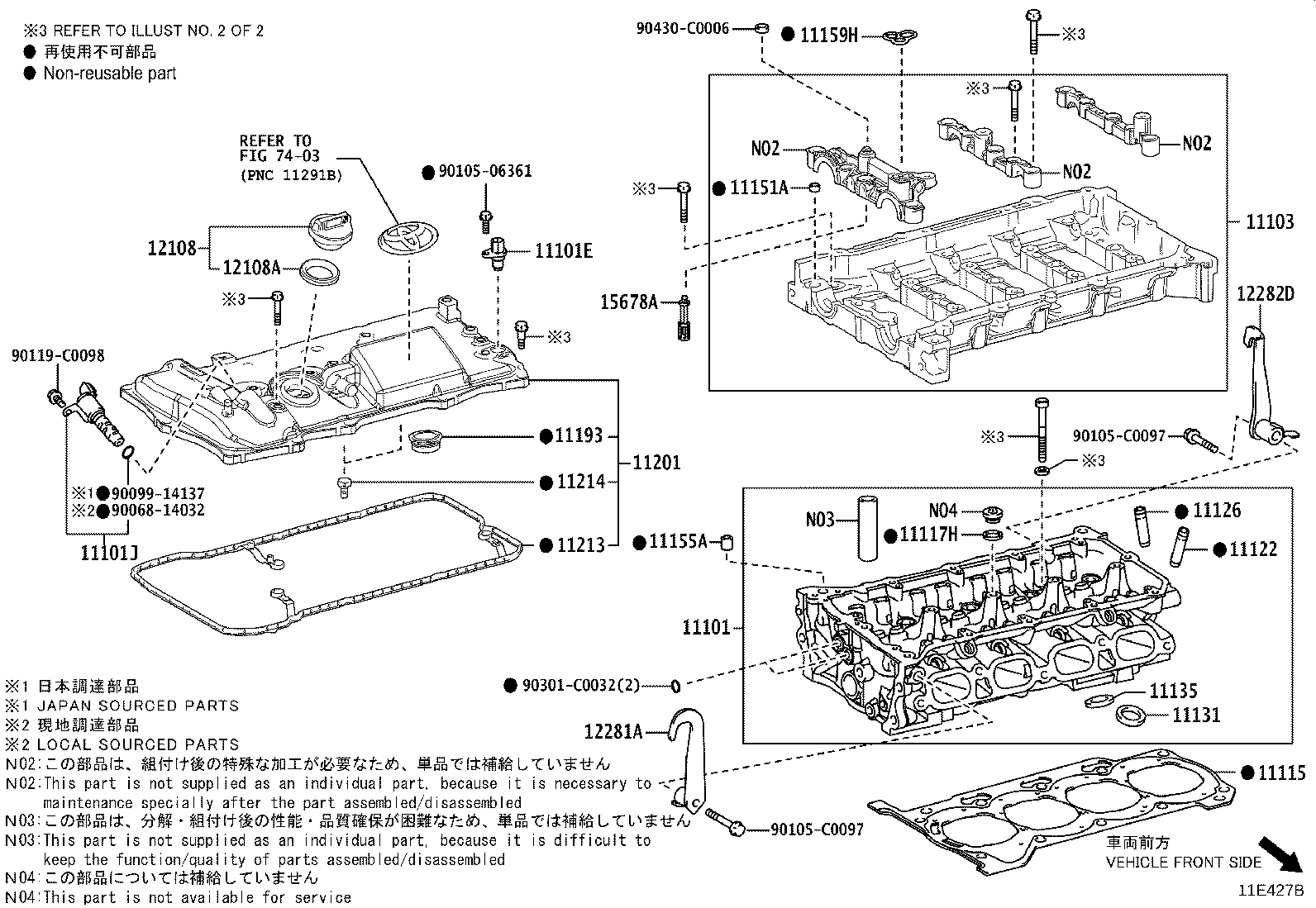

ILLUST NO. 1 OF 2(1908- )8ZRFXE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-09780 |
8ZRFXE..ZWE211 (L) |
1 | ||
| 11101-80000 |
8ZRFXE..ZWE211 (J) |
1 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-C5001 |
8ZRFXE..ZWE211 |
1 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-0T030 |
8ZRFXE..ZWE211 |
1 | ||
| 11103 - HOUSING SUB-ASSY, CAMSHAFT | ||||
| 11103-0T100 |
8ZRFXE..ZWE211 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-0T020 |
8ZRFXE..ZWE211 |
1 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-C0001 |
8ZRFXE..ZWE211 |
3 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-31050 |
8ZRFXE..ZWE211 STD |
8 | ||
| 11123-31050 |
8ZRFXE..ZWE211 O/S 0.05 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-31030 |
8ZRFXE..ZWE211 STD |
8 | ||
| 11127-31030 |
8ZRFXE..ZWE211 O/S 0.05 |
8 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11131-0T050 |
8ZRFXE..ZWE211 STD |
8 | ||
| 11132-37050 |
8ZRFXE..ZWE211 O/S 0.03 |
8 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-0T050 |
8ZRFXE..ZWE211 STD |
8 | ||
| 11136-37020 |
8ZRFXE..ZWE211 O/S 0.03 |
8 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-C0004 |
8ZRFXE..ZWE211 L=12.5,OD=8 |
10 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-C0002 |
8ZRFXE..ZWE211 |
2 | ||
| 11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE | ||||
| 11159-0T030 |
8ZRFXE..ZWE211 |
1 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-37030 |
8ZRFXE..ZWE211 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-37061 |
8ZRFXE..ZWE211 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-37050 |
8ZRFXE..ZWE211 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11213-31080 |
8ZRFXE..ZWE211 |
2 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-0T010 |
8ZRFXE..ZWE211 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
8ZRFXE..ZWE211 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-0T020 |
8ZRFXE..ZWE211 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-0T020 |
8ZRFXE..ZWE211 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-0T020 |
8ZRFXE..ZWE211 |
1 | ||
| Common parts | ||||
| 90068-14032 | ||||
| 90099-14137 | ||||
| 90105-06361 | ||||
| 90105-C0097 | ||||
| 90119-C0098 | ||||
| 90301-C0032 | ||||
| 90430-C0006 | ||||
| Linked diagrams | ||||
| 7403 | ||||

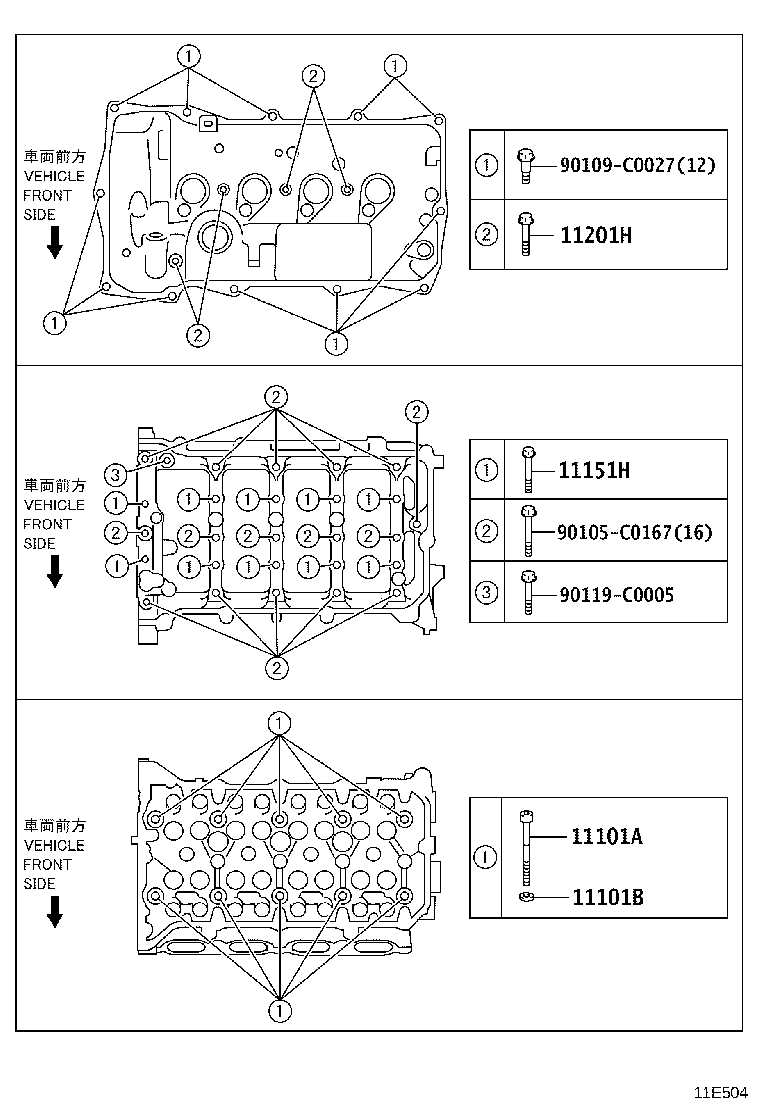

ILLUST NO. 2 OF 2(1908- )8ZRFXE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-C2003 |
8ZRFXE..ZWE211 |
10 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-C0002 |
8ZRFXE..ZWE211 |
10 | ||
| 11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-C0469 |
8ZRFXE..ZWE211 |
10 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90105-06361 |
8ZRFXE..ZWE211 |
4 | ||
| Common parts | ||||
| 90105-C0167 | ||||
| 90109-C0027 | ||||
| 90119-C0005 | ||||
