ZRE182R-GEXNKN (2017)

Toyota Corolla

Production Jan 2017 - Dec 2019
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1701-1912)SA

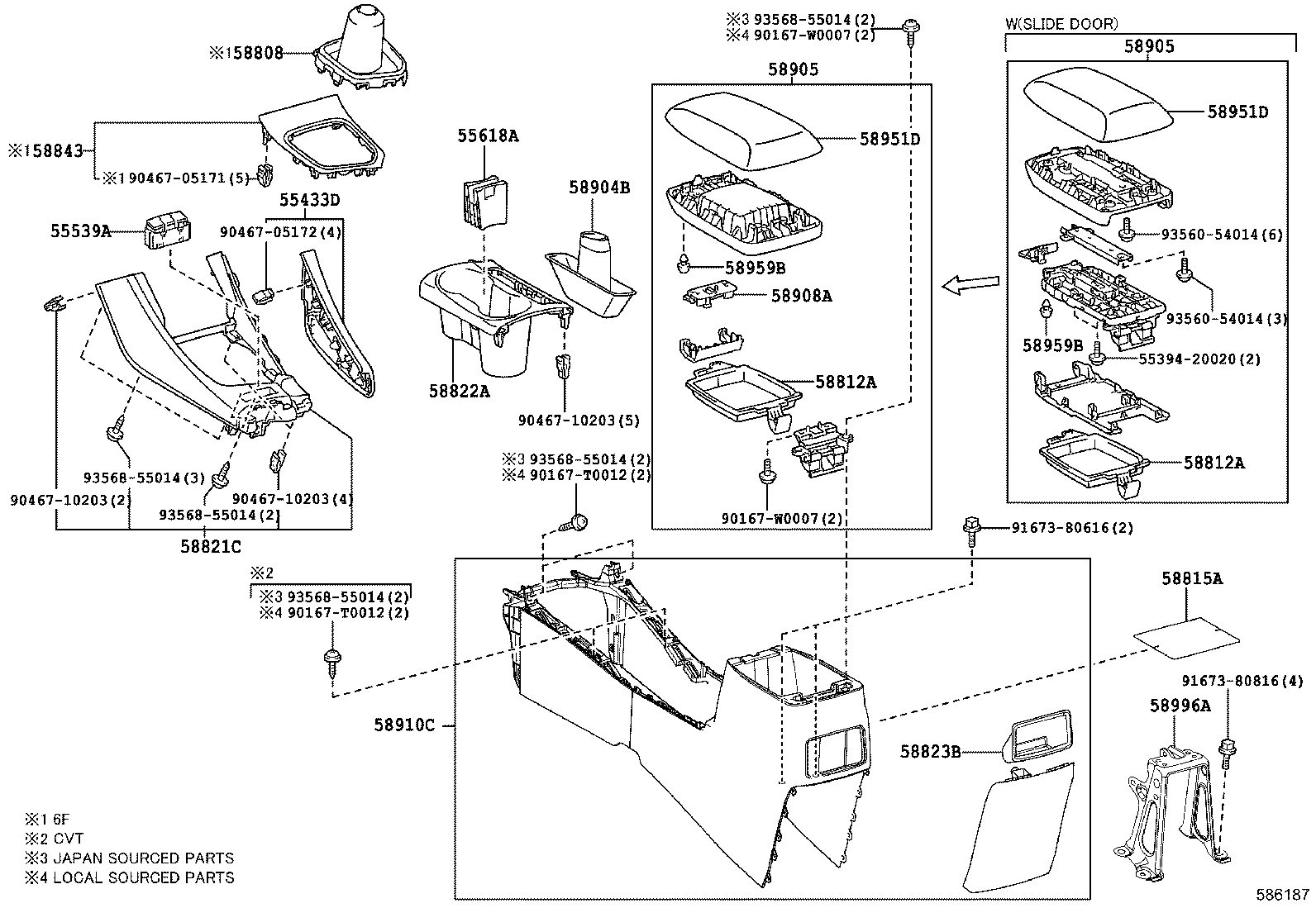

Click highlighted areas on diagram

diagram 5539420020 55433D 55539A 55618A 58808 58812A 58812A 58815A 58821C 58822A 58823B 58843 58904B 58905 58905 58908A 58910C 58951D 58951D 58959B 58959B 58996A 90167T0012 90167T0012 90167W0007 90167W0007 9046705171 9046705172 9046710203 9046710203 9046710203 9167380616 9167380816 9356054014 9356054014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55433D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-02510C0

NDE180,NRE180,ZRE18#..SA

EU BLACK,TRIM2#

 1
55618A - HOLDER, CONSOLE BOX CUP
55618-02230C0

ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP

BLACK,TRIM2#

 1
58812A - BOX, CONSOLE, LOWER
58812-02290C1

ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP

EU BLACK,TRIM2#

 1
58812A - BOX, CONSOLE, LOWER
58812-02290C1

ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP

EU BLACK,TRIM2#

 1
58821C - PANEL, CONSOLE, UPPER
58821-02770C0

NDE180,NRE180,ZRE18#..SA

BLACK,TRIM2#

 1
58822A - PANEL, CONSOLE, UPPER REAR
58822-02260C1

NDE180,NRE180,ZRE18#..SA

BLACK,TRIM2#

 1
58823B - BOX, CONSOLE COMPARTMENT
58823-02020C0

ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP

BLACK,TRIM2#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-02200C0

ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP

BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02A61C6

NDE180,NRE180,ZRE18#..N..SAP

SEAT COVER MATERIAL-LEATHER & FABRIC,EU BLACK/EU BLACK,TRIM2#

 1
58905-02A61C6

NDE180,NRE180,ZRE18#..N..SAP

SEAT COVER MATERIAL-LEATHER,EU BLACK/EU BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-02A61C6

NDE180,NRE180,ZRE18#..N..SAP

SEAT COVER MATERIAL-LEATHER & FABRIC,EU BLACK/EU BLACK,TRIM2#

 1
58905-02A61C6

NDE180,NRE180,ZRE18#..N..SAP

SEAT COVER MATERIAL-LEATHER,EU BLACK/EU BLACK,TRIM2#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-02381C0

ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP

BLACK,TRIM2#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02B00C4

NDE180,NRE180,ZRE18#..N..SAP

SEAT COVER MATERIAL-LEATHER & FABRIC,EU BLACK,TRIM2#

 1
58951-02B00C4

NDE180,NRE180,ZRE18#..N..SAP

SEAT COVER MATERIAL-LEATHER,EU BLACK,TRIM2#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-02B00C4

NDE180,NRE180,ZRE18#..N..SAP

SEAT COVER MATERIAL-LEATHER & FABRIC,EU BLACK,TRIM2#

 1
58951-02B00C4

NDE180,NRE180,ZRE18#..N..SAP

SEAT COVER MATERIAL-LEATHER,EU BLACK,TRIM2#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-02100

NDE180,NRE180,ZRE18#..SAP

 1
Common parts
55394-20020
90167-T0012
90167-W0007
90467-05171
90467-05172
90467-10203
91673-80616
91673-80816
93560-54014
93568-55014
