ZRE182R-GEXNKN (2019)

Toyota Corolla

Production Dec 2019 - Sep 9999
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

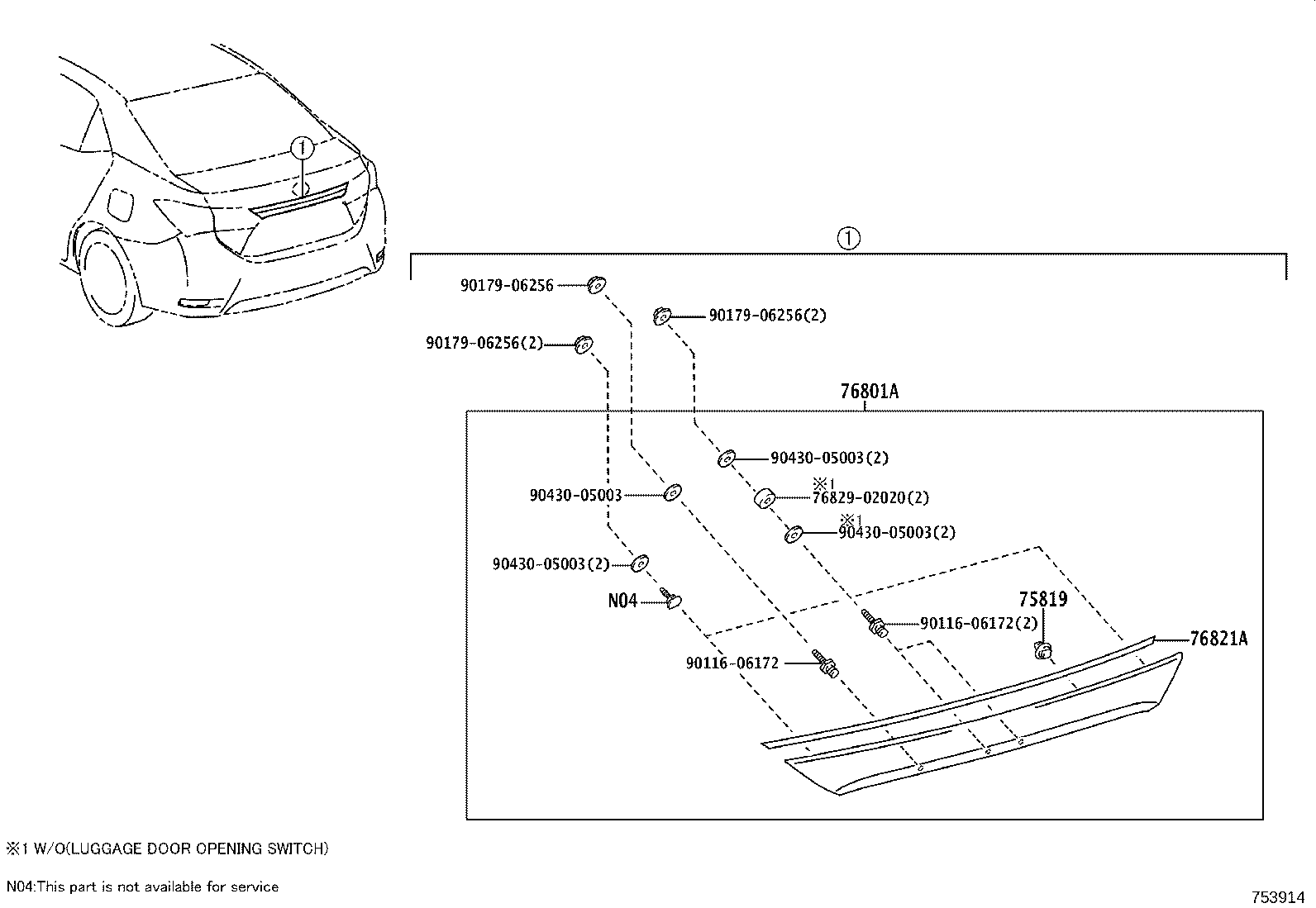

Click highlighted areas on diagram

diagram 75819 76801A 76821A 7682902020 9011606172 9011606172 9017906256 9017906256 9017906256 9043005003 9043005003 9043005003 9043005003
Part # Description Qty Price
75819 - CLIP, LUGGAGE COMPARTMENT DOOR MOULDING
75819-33010

ZRE182

 1
76801A - GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
76801-02935

ZRE182..D

PAINT REQ.

 1
76801-02937

ZRE182..N

PAINT REQ.

 1
76801-02936

ZRE182..N..SA

PAINT REQ.,STARTING SYSTEM-PUSH START SWITCH

 1
76801-02938

ZRE182..G

PAINT REQ.,AUDIO-CD & *BT & USB & 6SPEAKER

 1
76801-02938

ZRE182..N..SA

PAINT REQ.,STARTING SYSTEM-PUSH START SWITCH&AUDIO-CD & *BT & USB & 6SPEAKER

 1
76801-02938

ZRE182..D..SA

PAINT REQ.,STARTING SYSTEM-PUSH START SWITCH

 1
76801-02935

ZRE182..N

PAINT REQ.,AUDIO-CD & *BT & USB & 6SPEAKER

 1
76801-02936

ZRE182..G

PAINT REQ.

 1
76821A - PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
76825-02200

ZRE182

 1
Common parts
76829-02020
90116-06172
90179-06256
90430-05003
