ZRE182R-GEXNKN (2019)

Toyota Corolla

Production Dec 2019 - Sep 9999
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

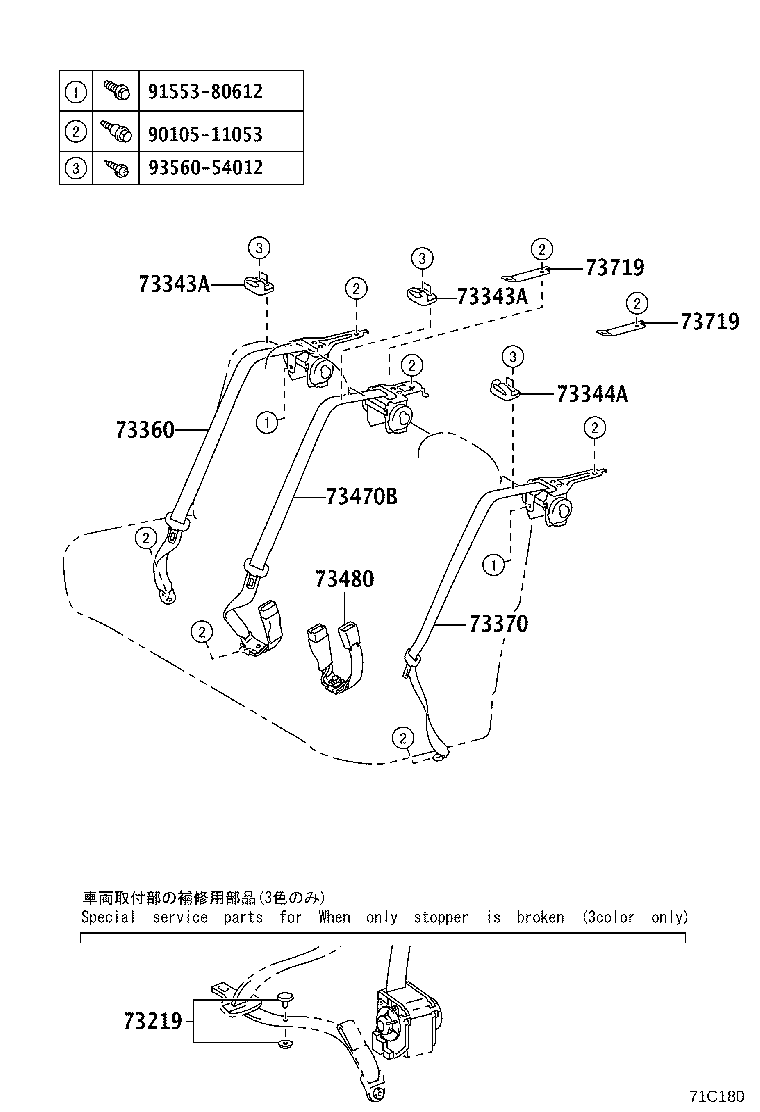

ILLUST NO. 3 OF 3(1912- )

Click highlighted areas on diagram

REAR(FIX SEAT)

diagram 73219 73343A 73343A 73344A 73360 73370 73470B 73480 73719 73719 9010511053 9155380612 9356054012
Part # Description Qty Price
73219 - STOPPER, TONGUE PLATE
73219-33030

ZRE182

BEIGE

 1
73219-33020

ZRE182

GRAY

 1
73219-33010

ZRE182

BLACK

 1
73343A - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-33020C0

ZRE182..G

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

 2
73343-33020C0

ZRE182..D

BLACK,TRIM2#

 2
73343-02080C0

ZRE182..G

BLACK,TRIM2#

 1
73343-33020C0

ZRE182..N

BLACK,TRIM2#,3#

 2
73343A - GUIDE, REAR SEAT SHOULDER BELT, RH
73343-33020C0

ZRE182..G

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

 2
73343-33020C0

ZRE182..D

BLACK,TRIM2#

 2
73343-02080C0

ZRE182..G

BLACK,TRIM2#

 1
73343-33020C0

ZRE182..N

BLACK,TRIM2#,3#

 2
73344A - GUIDE, REAR SEAT SHOULDER BELT, LH
73344-33020C0

ZRE182..D

BLACK,TRIM2#

 1
73344-33020C0

ZRE182..G

SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2#

 1
73344-02040C0

ZRE182..G

BLACK,TRIM2#

 1
73344-33020C0

ZRE182..N

BLACK,TRIM2#,3#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-02580C0

ZRE182..N

BLACK,TRIM2#,3#

 1
73360-02580C0

ZRE182..D,G

BLACK,TRIM2#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-02160C0

ZRE182..D,G

BLACK,TRIM2#

 1
73370-02160C0

ZRE182..N

BLACK,TRIM2#,3#

 1
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-02491C0

ZRE182..N

BLACK,TRIM2#,3#

 1
73470-02491C0

ZRE182..D,G

BLACK,TRIM2#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-02521C0

ZRE182..N

BLACK,TRIM2#,3#

 1
73480-02521C0

ZRE182..D,G

BLACK,TRIM2#

 1
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-02050

ZRE182..SA

 2
73719 - BRACKET, CHILD RESTRAINT SEAT TETHER ANCHOR
73719-02050

ZRE182..SA

 2
Common parts
90105-11053
91553-80612
93560-54012
