ZRE182R-GEXNKN (2019)

Toyota Corolla

Production Dec 2019 - Sep 9999
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1912- )

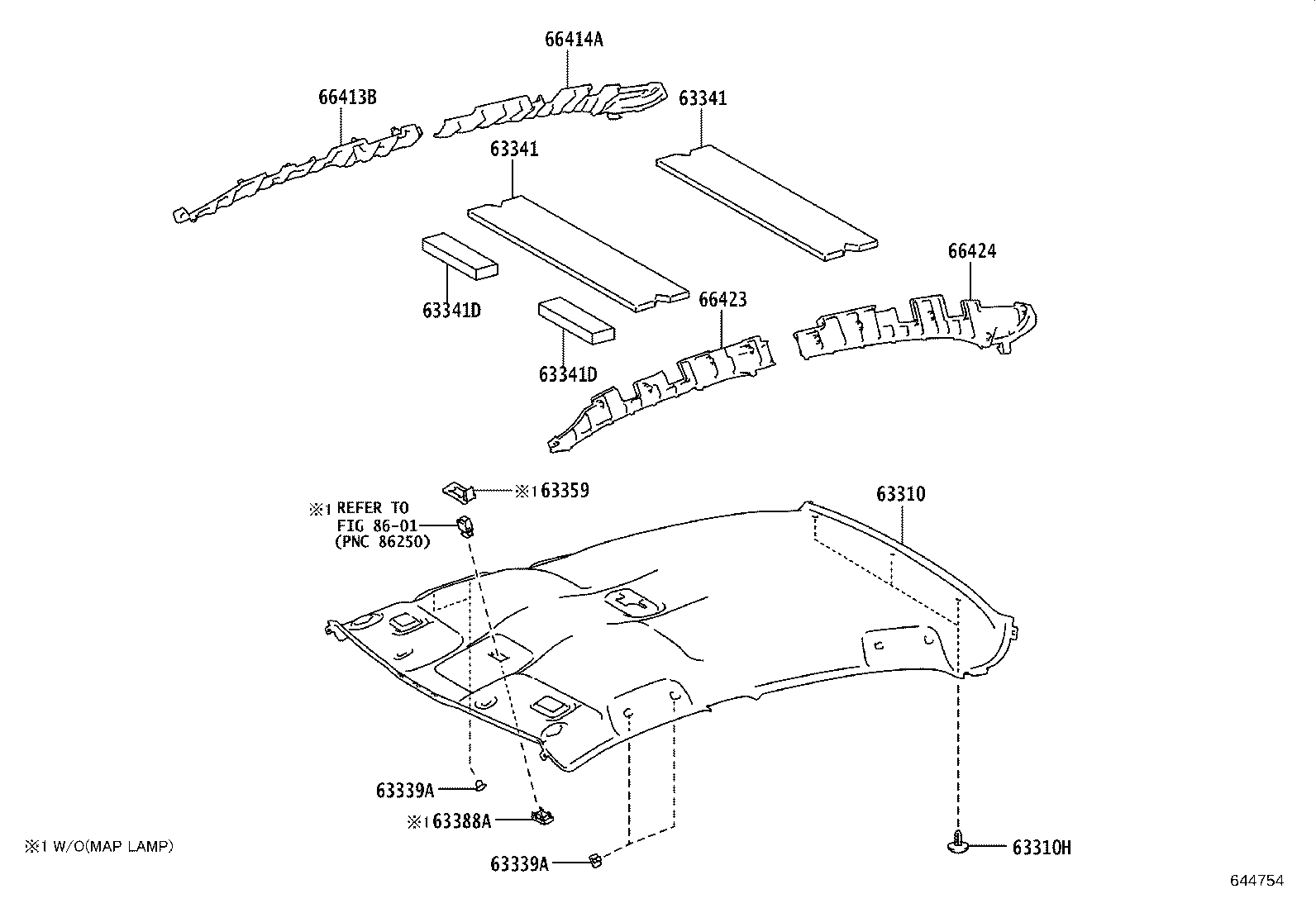

Click highlighted areas on diagram

diagram 63310 63310H 63339A 63339A 63341 63341 63341D 63341D 63359 63388A 66413B 66414A 66423 66424 8601
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-02K40B0

ZRE182..G

GRAY,TRIM2#

 1
63310-02K30B0

ZRE182..D

GRAY,TRIM2#

 1
63310-02K30B0

ZRE182..N

GRAY,TRIM2#,3#

 1
63310H - CLIP(FOR ROOF HEADLINING)
90467-05164B0

ZRE182..N

LT.GRAY,TRIM2#,3#,(J)

 3
90467-W0006B0

ZRE182..D,G

LT.GRAY,TRIM2#,(L)

 3
90467-05164B0

ZRE182..D,G

LT.GRAY,TRIM2#,(J)

 3
90467-W0006B0

ZRE182..N

LT.GRAY,TRIM2#,3#,(L)

 3
90467-T0004B0

ZRE182..N

LT.GRAY,TRIM2#,3#

 3
90467-T0004B0

ZRE182..D,G

LT.GRAY,TRIM2#

 3
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-02010B0

ZRE182..N

LT.GRAY,TRIM2#,3#

 2
63339-02010B0

ZRE182..D,G

LT.GRAY,TRIM2#

 2
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-02010B0

ZRE182..N

LT.GRAY,TRIM2#,3#

 2
63339-02010B0

ZRE182..D,G

LT.GRAY,TRIM2#

 2
63341 - PAD, ROOF SILENCER, NO.1
63342-02700

ZRE182

 2
63341 - PAD, ROOF SILENCER, NO.1
63342-02700

ZRE182

 2
63341D - PAD, ROOF SILENCER, FRONT
63341-02370

ZRE182

 2
63341D - PAD, ROOF SILENCER, FRONT
63341-02370

ZRE182

 2
63359 - PAD, ROOF HEADLINING END
63359-52040

ZRE182..D,N

 1
63388A - COVER, ROOF HEADLINING HOLDER
63388-52010B0

ZRE182..N..SA

LT.GRAY,TRIM2#,3#

 1
63388-52010B0

ZRE182..D..SA

LT.GRAY,TRIM2#

 1
66413B - SPACER, SIDE RAIL, FRONT RH
66413-02150

ZRE182

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-02180

ZRE182

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-02150

ZRE182

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-02180

ZRE182

 1
Linked diagrams
8601
