ZRE182R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1306-1605)TUP ; (1306- )SAP

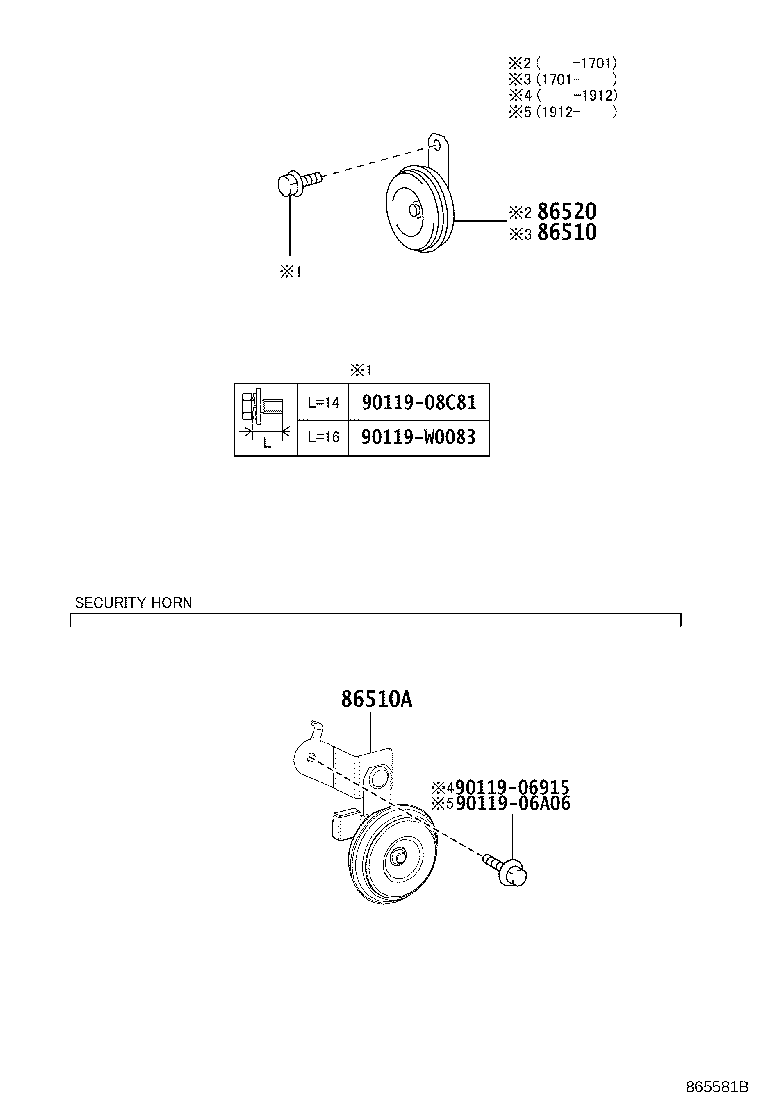

Click highlighted areas on diagram

diagram 86510 86510A 86520 9011906915 9011906A06 9011908C81 90119W0083
Part # Description Qty Price
86510A - HORN ASSY, SECURITY
86560-12060

NDE180,NRE180,ZRE18#..SA

 1
86560-12060

NDE180,NRE180,ZRE18#..N..SA

DOOR LOCK-WITHOUT(DOUBLE-LOCK)

 1
86520 - HORN ASSY, LOW PITCHED
86520-06100

NDE180,NRE180,ZRE18#..SAP

 1
Common parts
90119-06915
90119-06A06
90119-08C81
90119-W0083
