ZRE182R-GEFNKN (2014)
Toyota Corolla

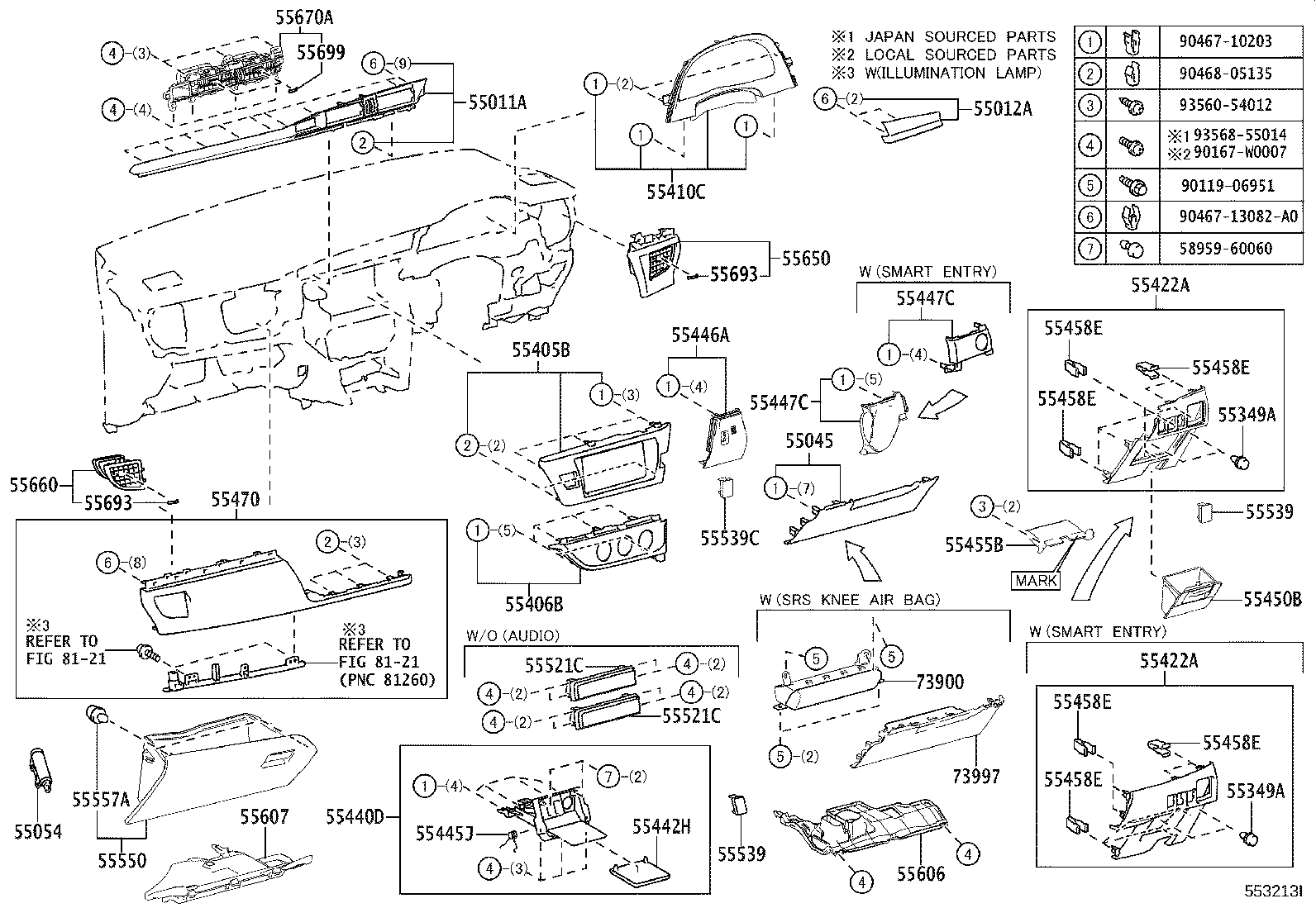

ILLUST NO. 2 OF 2(1401-1701)SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55011A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55011-02070B0 |
NDE180,NRE180,ZRE18#..SA MD.SILVER,TRIM2# |
1 | ||
| 55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55012-02080B0 |
NDE180,NRE180,ZRE18#..SA MD.SILVER,TRIM2# |
1 | ||
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02380C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35010 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 58959-60060 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 58959-60060 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02551C2 |
NDE180,NRE180,ZRE18#..N..SA AUDIO-RADIOLESS 6SPEAKER,BLACK METALLC,TRIM2# |
1 | ||
| 55405-02600C2 |
NDE180,NRE180,ZRE18#..SA BLACK METALLC,TRIM2# |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02510C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55406-02510C0 |
NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER,BLACK,TRIM2# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02320C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-02300C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55422-02340C0 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM2# |
1 | ||
| 55422-02300C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55422-02340C1 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM2# |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-02300C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55422-02340C0 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM2# |
1 | ||
| 55422-02300C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55422-02340C1 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM2# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-02720C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55440-02720C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-02790C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55442-02790C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-02290 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02390C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55446-02390C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02130C1 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM2# |
1 | ||
| 55447-02130C0 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM2# |
1 | ||
| 55447-02220C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55447-02220C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02130C1 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM2# |
1 | ||
| 55447-02130C0 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM2# |
1 | ||
| 55447-02220C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55447-02220C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02130C0 |
NDE180,NRE180,ZRE18#..SAP BLACK,TRIM2# |
1 | ||
| 55450-02130C1 |
NDE180,NRE180,ZRE18#..SAP EU BLACK,TRIM2# |
1 | ||
| 55450-02131C1 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP EU BLACK,TRIM2# |
1 | ||
| 55455B - COIN BOX | ||||
| 55455-02160 |
NDE180,NRE180,ZRE18#..SAP MARK=55455-02160 |
1 | ||
| 55455-02161 |
NDE180,NRE180,ZRE18#..SAP MARK=55455-02161 |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55470 - GARNISH ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-02350C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55470-02360C0 |
NDE180,NRE180,ZRE18#..N..SA INTERMITTENT WIPER-WITH(AUTO),BLACK,TRIM2# |
1 | ||
| 55470-02350C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55470-02360C1 |
NDE180,NRE180,ZRE18#..N..SA INTERMITTENT WIPER-WITH(AUTO),EU BLACK,TRIM2# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NDE180,NRE180,ZRE18#..D..SAP AUDIO-RADIOLESS 4SPEAKER |
2 | ||
| 55521-05030 |
NDE180,NRE180,ZRE18#..N..SAP AUDIO-RADIOLESS 6SPEAKER |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-05030 |
NDE180,NRE180,ZRE18#..D..SAP AUDIO-RADIOLESS 4SPEAKER |
2 | ||
| 55521-05030 |
NDE180,NRE180,ZRE18#..N..SAP AUDIO-RADIOLESS 6SPEAKER |
2 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55539-52060C0 |
ZRE18#..N..SA VSC-WITH(W/CUT OFF SWITCH),BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55539-52060C0 |
ZRE18#..N..SA VSC-WITH(W/CUT OFF SWITCH),BLACK,TRIM2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02421C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02170 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02340C0 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO),BLACK,TRIM2# |
1 | ||
| 55650-02450C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55650-02350B1 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)®ISTER-CHROME PLATED KNOB,MD.SILVER/ EU BLACK,TRIM2# |
1 | ||
| 55650-02350B0 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)®ISTER-CHROME PLATED KNOB,MD.SILVER,TRIM2# |
1 | ||
| 55650-02330B0 |
NDE180,NRE180,ZRE18#..N..SA REGISTER-CHROME PLATED KNOB,MD.SILVER,TRIM2# |
1 | ||
| 55650-02330B1 |
NDE180,NRE180,ZRE18#..N..SA REGISTER-CHROME PLATED KNOB,MD.SILVER/EU BLACK,TRIM2# |
1 | ||
| 55650-02340C1 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO),EU BLACK,TRIM2# |
1 | ||
| 55650-02450C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-02230C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55660-02270B0 |
NDE180,NRE180,ZRE18#..N..SA REGISTER-CHROME PLATED KNOB,MD.SILVER,TRIM2# |
1 | ||
| 55660-02270B0 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)®ISTER-CHROME PLATED KNOB,MD.SILVER,TRIM2# |
1 | ||
| 55660-02230C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02400 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55670-02420 |
NDE180,NRE180,ZRE18#..N..SA REGISTER-CHROME PLATED KNOB |
1 | ||
| 55693 - PROTECTOR, CONTROL KNOB, NO.1 | ||||
| 55693-02290 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)®ISTER-CHROME PLATED KNOB |
2 | ||
| 55693-02290 |
NDE180,NRE180,ZRE18#..N..SAP REGISTER-CHROME PLATED KNOB |
2 | ||
| 55693 - PROTECTOR, CONTROL KNOB, NO.1 | ||||
| 55693-02290 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)®ISTER-CHROME PLATED KNOB |
2 | ||
| 55693-02290 |
NDE180,NRE180,ZRE18#..N..SAP REGISTER-CHROME PLATED KNOB |
2 | ||
| 55699 - KNOB, INSTRUMENT PANEL REGISTER CONTROL | ||||
| 55693-02110 |
NDE180,NRE180,ZRE18#..N..SAP REGISTER-CHROME PLATED KNOB |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02081 |
NDE180,NRE180,ZRE18#..SA SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 73997 - DOOR, INSTRUMENT PANEL AIR BAG, LOWER NO.1 | ||||
| 73997-12070C0 |
NDE180,NRE180,ZRE18#..SA SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 90119-06951 | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90467-13082A0 | ||||
| 90468-05135 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||

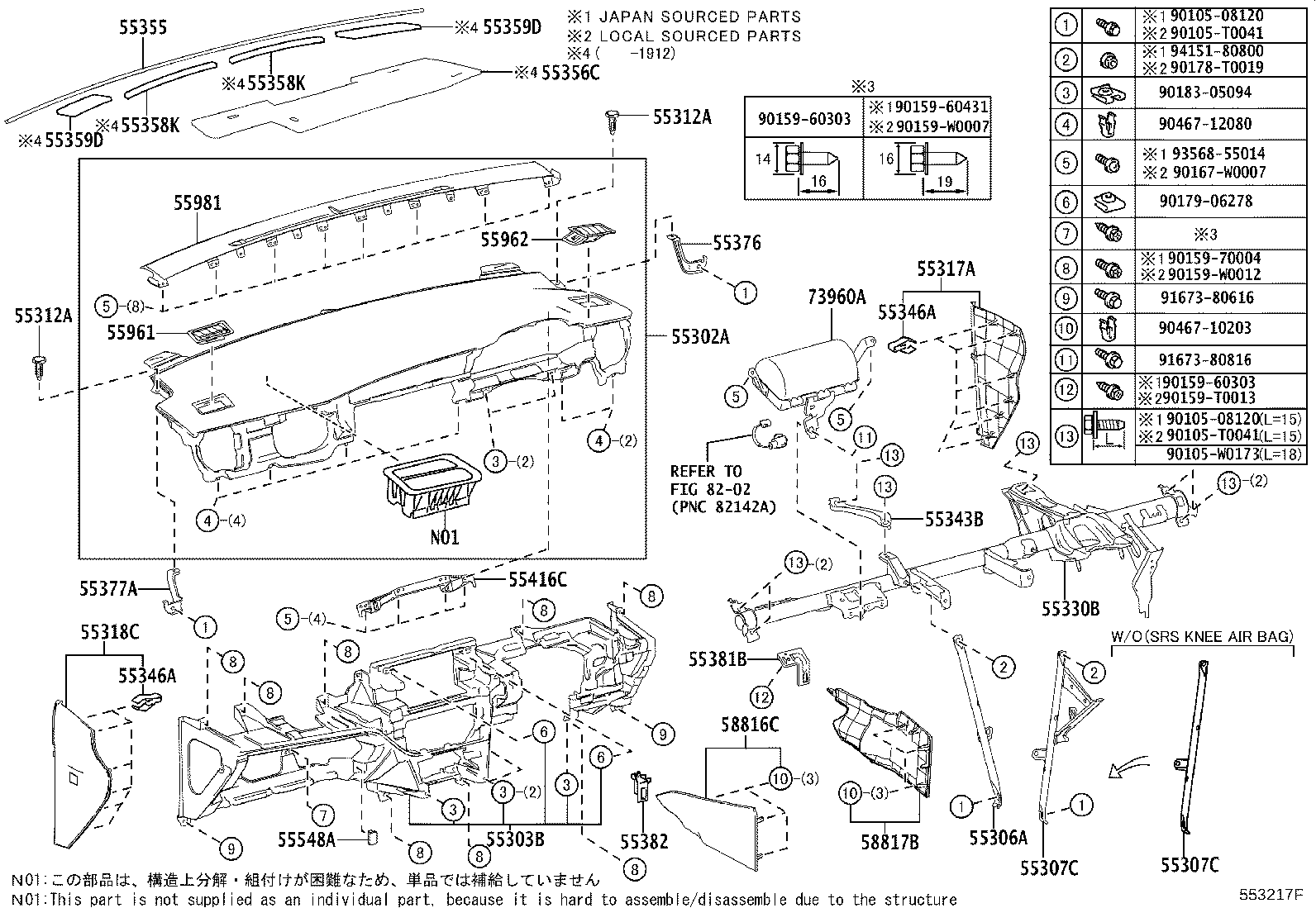

ILLUST NO. 1 OF 2(1401- )SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-02570C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-02400C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-02570 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02350 |
NDE180,NRE180,ZRE18#..SA SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 55307-02340 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-02350 |
NDE180,NRE180,ZRE18#..SA SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 55307-02340 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 52161-16010 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-02370C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-02170C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-02650 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02060 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55343-02060 |
NDE180,NRE180,ZRE18#..SAP (L) |
1 | ||
| 55343-12070 |
NDE180,NRE180,ZRE18#..SAP (J) |
1 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
NDE180,NRE180,ZRE18#..SAP MELLOW WHITE |
12 | ||
| 55346A - CLIP, INSTRUMENT PANEL, NO.2 | ||||
| 90467-13082A0 |
NDE180,NRE180,ZRE18#..SAP MELLOW WHITE |
12 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-02520 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-02090 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02150 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 55358K - CUSHION, INSTRUMENT PANEL, NO.4 | ||||
| 55358-02150 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02160 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-02160 |
NDE180,NRE180,ZRE18#..SAP |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-02040 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55377A - BRACKET, INSTRUMENT PANEL MOUNTING, NO.2 | ||||
| 55377-02040 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55381B - BRACKET, FINISH PANEL MOUNTING, NO.1 | ||||
| 55381-02140 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55382 - BRACKET, FINISH PANEL MOUNTING, NO.2 | ||||
| 55382-02110 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-02190 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02170C0 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-02130C0 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-02330C0 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 58816C - INSERT, CONSOLE BOX, FRONT NO.1 | ||||
| 58816-02200C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 58816-02200C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 58817B - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02200C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 58817-02200C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-02190 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90105-T0041 | ||||
| 90105-W0173 | ||||
| 90159-60303 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90159-T0013 | ||||
| 90159-W0007 | ||||
| 90159-W0012 | ||||
| 90167-W0007 | ||||
| 90178-T0019 | ||||
| 90179-06278 | ||||
| 90183-05094 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
