ZRE182R-GEFNKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )SA

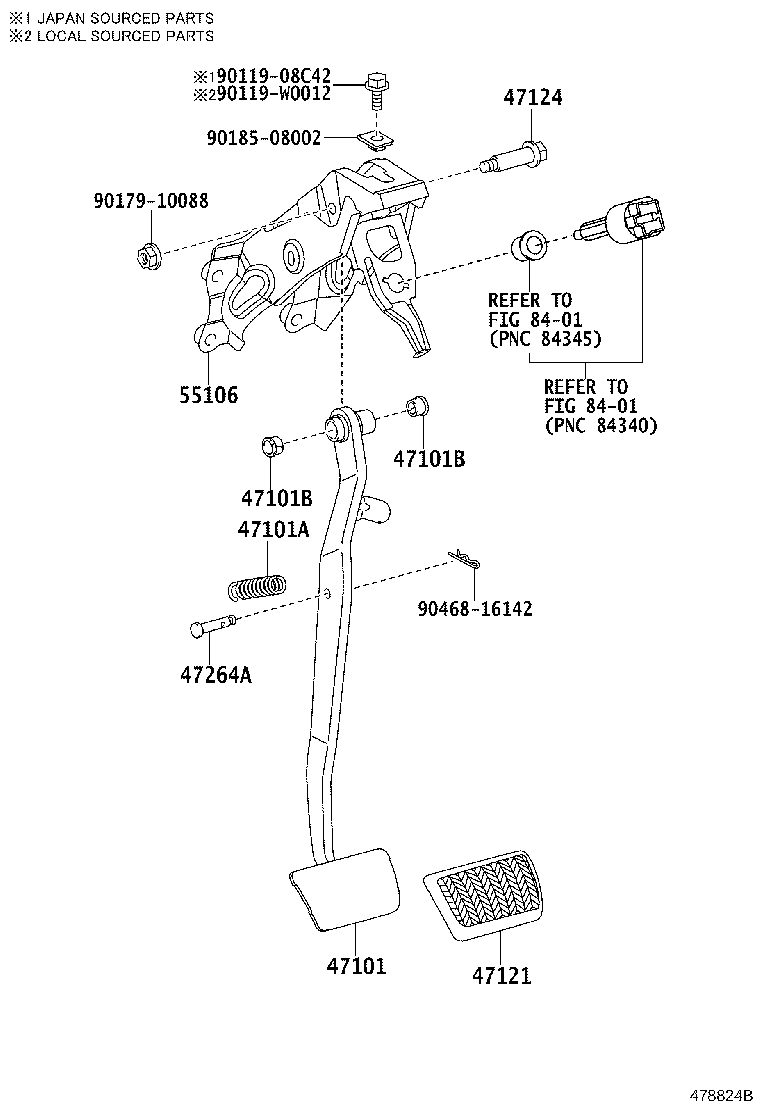

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47264A 55106 8401 8401 9011908C42 90119W0012 9017910088 9018508002 9046816142
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-12710

NDE180,NRE180,ZRE18#..6F..SA

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-15007

NDE180,NRE180,ZRE18#..SAP

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NDE180,NRE180,ZRE18#..SAP

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

NDE180,NRE180,ZRE18#..SAP

 2
47121 - PAD, BRAKE PEDAL
31321-42010

NDE180,NRE180,ZRE18#..6F..SAP

 1
47124 - SHAFT, BRAKE PEDAL
90109-10174

NDE180,NRE180,ZRE18#..SA

 1
47264A - PIN(FOR PUSH ROD)
90249-08256

NDE180,NRE180,ZRE18#..SAP

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-12680

NDE180,NRE180,ZRE18#..SA

 1
Common parts
90119-08C42
90119-W0012
90179-10088
90185-08002
90468-16142
Linked diagrams
8401
