ZRE182L-GEXNK (2017)
Toyota Corolla

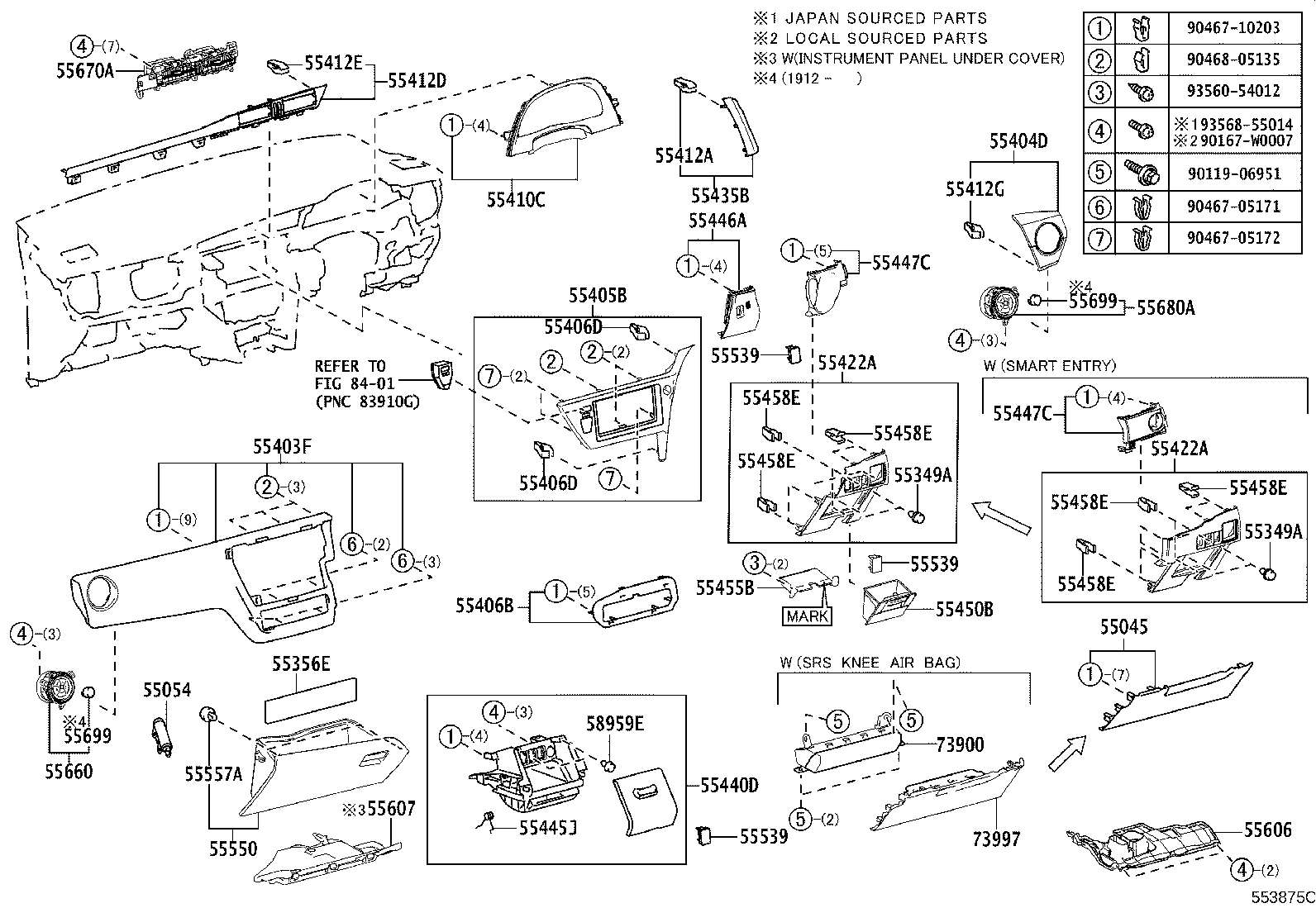

ILLUST NO. 2 OF 2(1701- )SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02370C0 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP BLACK,TRIM2# |
1 | ||
| 55045-02380C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35010 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02460C1 |
NDE180,NRE180,ZRE18#..N..SA INSTRUMENT FINISH PANEL-WITH(ILLUMINATION)&AIR CONDITIONER-AUTO AIR CONDITIONER,EU BLACK/EU BLACK,TRIM2# |
1 | ||
| 55403-02310C0 |
NDE180,NRE180,ZRE18#..SA EU BLACK/EU BLACK,TRIM2# |
1 | ||
| 55403-02320C0 |
ZRE18#..N..GEN..SAP INSTRUMENT FINISH PANEL-WITH(ILLUMINATION)&AIR CONDITIONER-AUTO AIR CONDITIONER,EU BLACK/EU BLACK,TRIM2# |
1 | ||
| 55403-02330C1 |
NDE180,NRE180,ZRE18#..N..SA INSTRUMENT FINISH PANEL-WITHOUT(ILLUMINATION)&AIR CONDITIONER-AUTO AIR CONDITIONER,EU BLACK/EU BLACK,TRIM2# |
1 | ||
| 55403-02300C0 |
ZRE18#..N..GEN..SAP INSTRUMENT FINISH PANEL-WITH(ILLUMINATION)&AIR CONDITIONER-AUTO AIR CONDITIONER,EU BLACK/EU BLACK,TRIM2# |
1 | ||
| 55403-02290C0 |
ZRE18#..N..GEN..SAP INSTRUMENT FINISH PANEL-WITHOUT(ILLUMINATION)&AIR CONDITIONER-AUTO AIR CONDITIONER,EU BLACK/BLACK,TRIM2# |
1 | ||
| 55403-02460C2 |
NDE180,NRE180,ZRE18#..N..SA INSTRUMENT FINISH PANEL-WITH(ILLUMINATION)&AIR CONDITIONER-AUTO AIR CONDITIONER,EU BLACK/BLACK,TRIM2# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-02530C0 |
NDE180,NRE180,ZRE18#..SA EU BLACK/EU BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55406-02650 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-02350 |
ZRE18#..N..GEN..SAP AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 55406-02340 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55406-02630 |
NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02460 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55410-02300 |
ZRE18#..GEN..SAP |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-02520 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55412-02510 |
ZRE18#..GEN..SAP |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-02300C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55422-02290C2 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP BLACK,TRIM2# |
1 | ||
| 55422-02340C1 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM2# |
1 | ||
| 55422-02290C1 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP EU BLACK,TRIM2# |
1 | ||
| 55422-02300C2 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER | ||||
| 55422-02300C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55422-02290C2 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP BLACK,TRIM2# |
1 | ||
| 55422-02340C1 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM2# |
1 | ||
| 55422-02290C1 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP EU BLACK,TRIM2# |
1 | ||
| 55422-02300C2 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-02460 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55435-02860 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-02450C0 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55440-02440C0 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP EU BLACK,TRIM2# |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-02340 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02370C1 |
ZRE182..N..GEN..SAP;ZRE181..6F..N..GEN..SAP WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM2# |
1 | ||
| 55446-02380C1 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP EU BLACK,TRIM2# |
1 | ||
| 55446-02390C2 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55446-02370C2 |
ZRE182..N..GEN..SAP;ZRE181..6F..N..GEN..SAP WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM2# |
1 | ||
| 55446-02390C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55446-02380C2 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP BLACK,TRIM2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02130C2 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM2# |
1 | ||
| 55447-02210C2 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP BLACK,TRIM2# |
1 | ||
| 55447-02210C1 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP EU BLACK,TRIM2# |
1 | ||
| 55447-02130C1 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM2# |
1 | ||
| 55447-02220C2 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55447-02220C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02130C2 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),BLACK,TRIM2# |
1 | ||
| 55447-02210C2 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP BLACK,TRIM2# |
1 | ||
| 55447-02210C1 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP EU BLACK,TRIM2# |
1 | ||
| 55447-02130C1 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM),EU BLACK,TRIM2# |
1 | ||
| 55447-02220C2 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55447-02220C1 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02131C1 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP EU BLACK,TRIM2# |
1 | ||
| 55450-02131C2 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55455B - COIN BOX | ||||
| 55455-02161 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55458E - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-10203 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM) |
8 | ||
| 90467-10203 |
NDE180,NRE180,ZRE18#..SA |
6 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C4 |
ZRE182..N..SAP;ZRE181..CVT..SA;NDE180,NRE180,ZRE181..6F..N..SAP AUDIO(OVERSEAS MARKET)-*DA & DVD & *BT & USB & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 55539-52060C4 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C4 |
ZRE182..N..SAP;ZRE181..CVT..SA;NDE180,NRE180,ZRE181..6F..N..SAP AUDIO(OVERSEAS MARKET)-*DA & DVD & *BT & USB & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 55539-52060C4 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C4 |
ZRE182..N..SAP;ZRE181..CVT..SA;NDE180,NRE180,ZRE181..6F..N..SAP AUDIO(OVERSEAS MARKET)-*DA & DVD & *BT & USB & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 55539-52060C4 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02421C2 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55550-02411C0 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP BLACK,TRIM2# |
1 | ||
| 55550-02411C2 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP BLACK,TRIM2# |
1 | ||
| 55550-02421C0 |
NDE180,NRE180,ZRE18#..SA BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02170 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-12330C0 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55680-12290C0 |
ZRE182..N..SAP;ZRE181..CVT..SA;NDE180,NRE180,ZRE181..6F..N..SAP REGISTER-CHROME PLATED KNOB,BLACK,TRIM2# |
1 | ||
| 55680-12290C2 |
ZRE182..N..SAP;ZRE181..CVT..SA;NDE180,NRE180,ZRE181..6F..N..SAP REGISTER-CHROME PLATED KNOB,BLACK,TRIM2# |
1 | ||
| 55680-12330C1 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02580C0 |
ZRE182..GEN..SAP;ZRE181..D..GEN..SAP;ZRE181..6F..N..GEN..SAP EU BLACK,TRIM2# |
1 | ||
| 55670-02690C0 |
ZRE182..N..GEN..SAP;ZRE181..6F..N..GEN..SAP REGISTER-CHROME PLATED KNOB,EU BLACK,TRIM2# |
1 | ||
| 55670-02700C0 |
NDE180,NRE180,ZRE18#..N..SA REGISTER-CHROME PLATED KNOB,EU BLACK,TRIM2# |
1 | ||
| 55670-02590C0 |
NDE180,NRE180,ZRE18#..SA EU BLACK,TRIM2# |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-12280C0 |
ZRE182..N..SAP;ZRE181..CVT..SA;NDE180,NRE180,ZRE181..6F..N..SAP REGISTER-CHROME PLATED KNOB,BLACK,TRIM2# |
1 | ||
| 55680-12320C1 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55680-12320C0 |
ZRE181..D..SAP;ZRE181..CVT..SA;ZRE181..6F..N..SAP;NDE180,NRE180,ZRE182..SAP BLACK,TRIM2# |
1 | ||
| 55680-12280C2 |
ZRE182..N..SAP;ZRE181..CVT..SA;NDE180,NRE180,ZRE181..6F..N..SAP REGISTER-CHROME PLATED KNOB,BLACK,TRIM2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02081 |
NDE180,NRE180,ZRE18#..SA SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 73997 - DOOR, INSTRUMENT PANEL AIR BAG, LOWER NO.1 | ||||
| 73997-12070C0 |
NDE180,NRE180,ZRE18#..SA SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE),BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90167-W0007 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
