ZRE182L-GEXNK (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )CVT

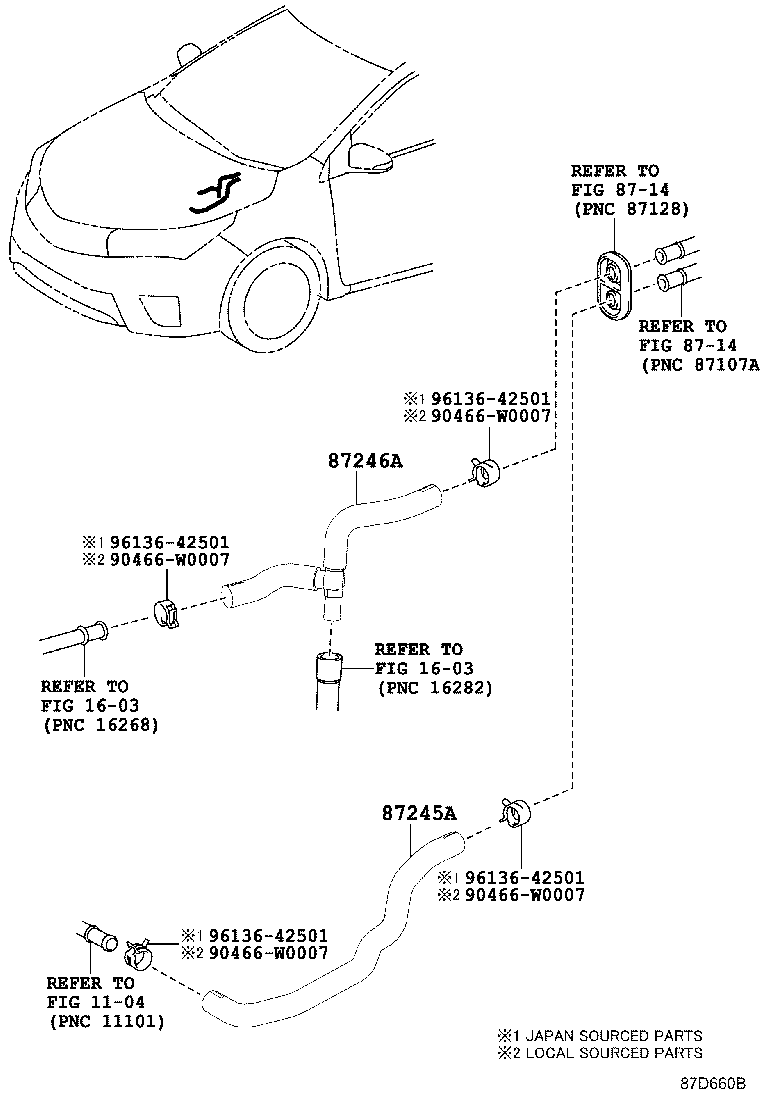

Click highlighted areas on diagram

diagram 1104 1603 1603 8714 8714 87245A 87246A 90466W0007 90466W0007 90466W0007 90466W0007 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-12G10

ZRE18#..SAP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-05041

ZRE18#..CVT..SAP

 1
Common parts
90466-W0007
96136-42501
Linked diagrams
1104
1603
8714
