ZRE182L-GEFNK (2014)
Toyota Corolla

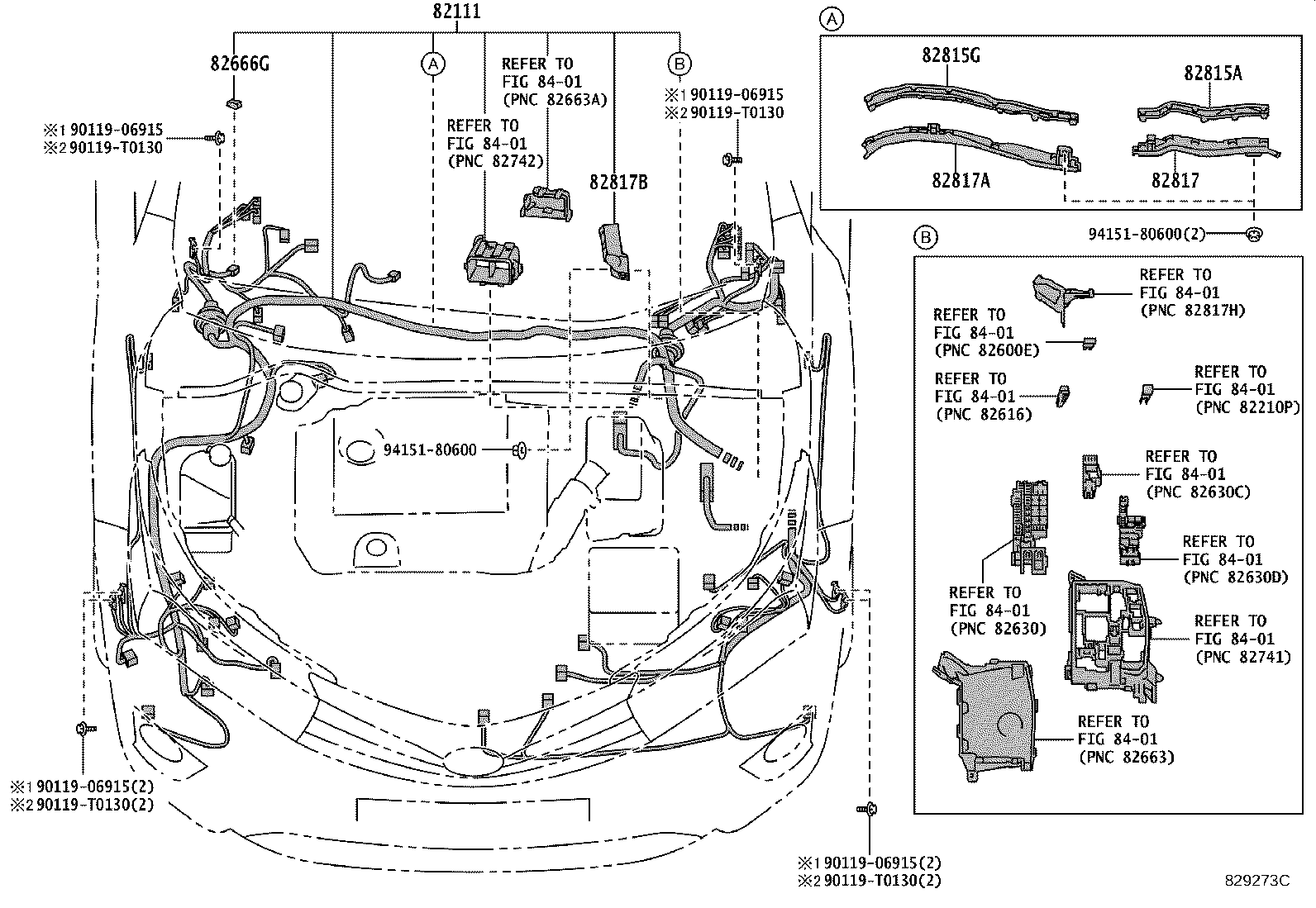

ILLUST NO. 1 OF10(1401- )SA
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-0ZL20 |
ZRE18#..6F..N..SA HEADLAMP CLEANER-WITH |
1 | ||
| 82115-0ZG10 |
ZRE18#..6F..N..GEN HEADLAMP CLEANER-WITH |
1 | ||
| 82115-0ZL30 |
ZRE18#..6F..N..SA VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP CLEANER-WITH |
1 | ||
| 82115-0ZW80 |
ZRE18#..6F..GEN |
1 | ||
| 82115-0ZX30 |
ZRE18#..6F..N..SA VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82115-0ZW81 |
ZRE18#..6F..GEN..SAP |
1 | ||
| 82115-0ZL21 |
ZRE18#..6F..N..SA HEADLAMP CLEANER-WITH |
1 | ||
| 82115-0ZX20 |
ZRE18#..6F..SA |
1 | ||
| 82115-0ZX21 |
ZRE18#..6F..SA |
1 | ||
| 82115-0ZG11 |
ZRE18#..6F..N..GEN..SAP HEADLAMP CLEANER-WITH |
1 | ||
| 82115-0ZX31 |
ZRE18#..6F..N..SA VSC-WITH(W/CUT OFF SWITCH) |
1 | ||
| 82115-0ZL31 |
ZRE18#..6F..N..SA VSC-WITH(W/CUT OFF SWITCH)&HEADLAMP CLEANER-WITH |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12160 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 82815-02130 |
ZRE18#..GEN..SAP |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-02140 |
ZRE18#..GEN..SAP |
1 | ||
| 82815-12150 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12B20 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 82817-02A80 |
ZRE18#..GEN..SAP |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12B10 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 82817-02500 |
ZRE18#..GEN..SAP |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12J30 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

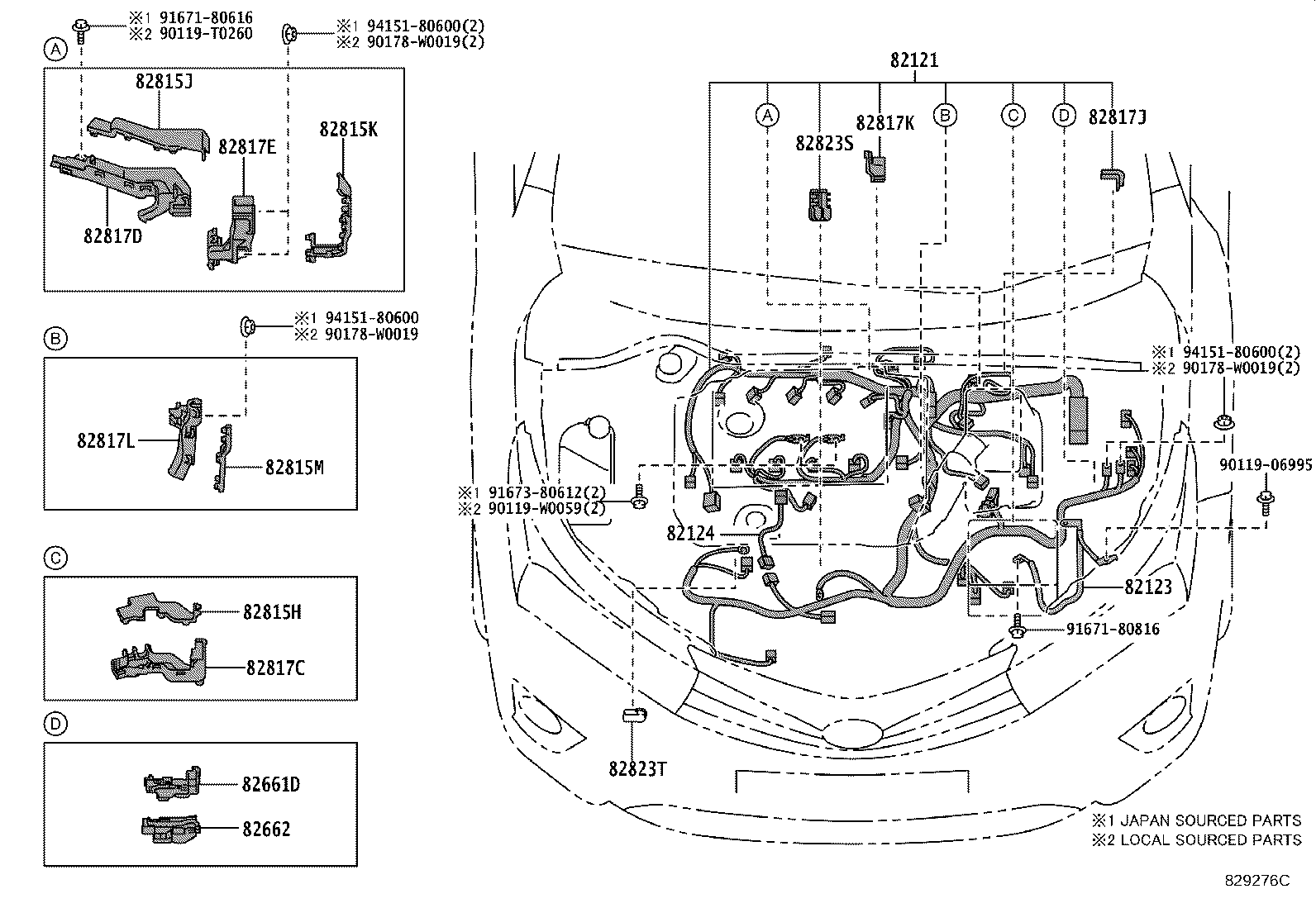

ILLUST NO. 2 OF10(1401- )ZRE182
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0Z610 |
ZRE182..6F |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02620 |
NRE180,ZRE18#..6F..SAP |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZRE18#..SAP |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12300 |
NRE180,ZRE18#..SAP |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-12260 |
NRE180,ZRE18#..SAP |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-02390 |
NRE180,ZRE18#..SAP |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-12510 |
ZRE182..SAP |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-12520 |
ZRE182..SAP |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-12530 |
ZRE182..SAP |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-02B30 |
NRE180,ZRE18#..SAP |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12K80 |
ZRE182..SAP |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-12K90 |
ZRE182..SAP |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12860 |
NRE180,ZRE18#..SAP |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-12J10 |
NRE180,ZRE18#..SAP |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-12L00 |
ZRE182..SAP |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12110 |
ZRE18#..SAP |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-T0260 | ||||
| 90119-W0059 | ||||
| 90178-W0019 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF10(1401- )SA
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82118-0ZS40 |
NDE180,NRE180,ZRE18#..N..SA INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82118-0ZR90 |
NDE180,NRE180,ZRE18#..N..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)&WIRELESS DOORLOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZS10 |
NDE180,NRE180,ZRE18#..SA SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZS50 |
NDE180,NRE180,ZRE18#..N..SA INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZS00 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 82118-0ZS70 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZR10 |
ZRE18#..GEN |
1 | ||
| 82118-0ZS30 |
NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZR80 |
ZRE18#..N..GEN INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZR91 |
NDE180,NRE180,ZRE18#..N..SA EXCEPT SOUTH AFRICA,SUDAN,SYRIA SPEC&DOOR LOCK-WITHOUT(DOUBLE-LOCK)&WIRELESS DOORLOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZR81 |
ZRE18#..N..GEN..SAP INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZS31 |
NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZR11 |
ZRE18#..GEN..SAP |
1 | ||
| 82118-0ZS71 |
NDE180,NRE180,ZRE18#..N..SA WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZS11 |
NDE180,NRE180,ZRE18#..SA SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZS41 |
NDE180,NRE180,ZRE18#..N..SA INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82118-0ZS51 |
NDE180,NRE180,ZRE18#..N..SA INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE) |
1 | ||
| 82118-0ZS01 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02490 |
ZRE18#..N..GEN..SAP INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82142-02470 |
NDE180,NRE180,ZRE18#..N..SA AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82142-02410 |
ZRE18#..GEN..SAP |
1 | ||
| 82142-02430 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 82142-02500 |
NDE180,NRE180,ZRE18#..N..SA INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02400 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02380 |
ZRE18#..GEN..SAP |
1 | ||
| 82666-12510 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02400 |
ZRE18#..GEN..SAP |
1 | ||
| 82666-12520 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02420 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02430 |
NDE180,NRE180,ZRE18#..SAP |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-12580 |
NDE180,NRE180,ZRE18#..SA |
1 | ||
| 82815-02330 |
ZRE18#..GEN..SAP |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90159-60613 | ||||
| Linked diagrams | ||||
| 8401 | ||||
