ZRE182L-GEFDK (2019)
Toyota Corolla

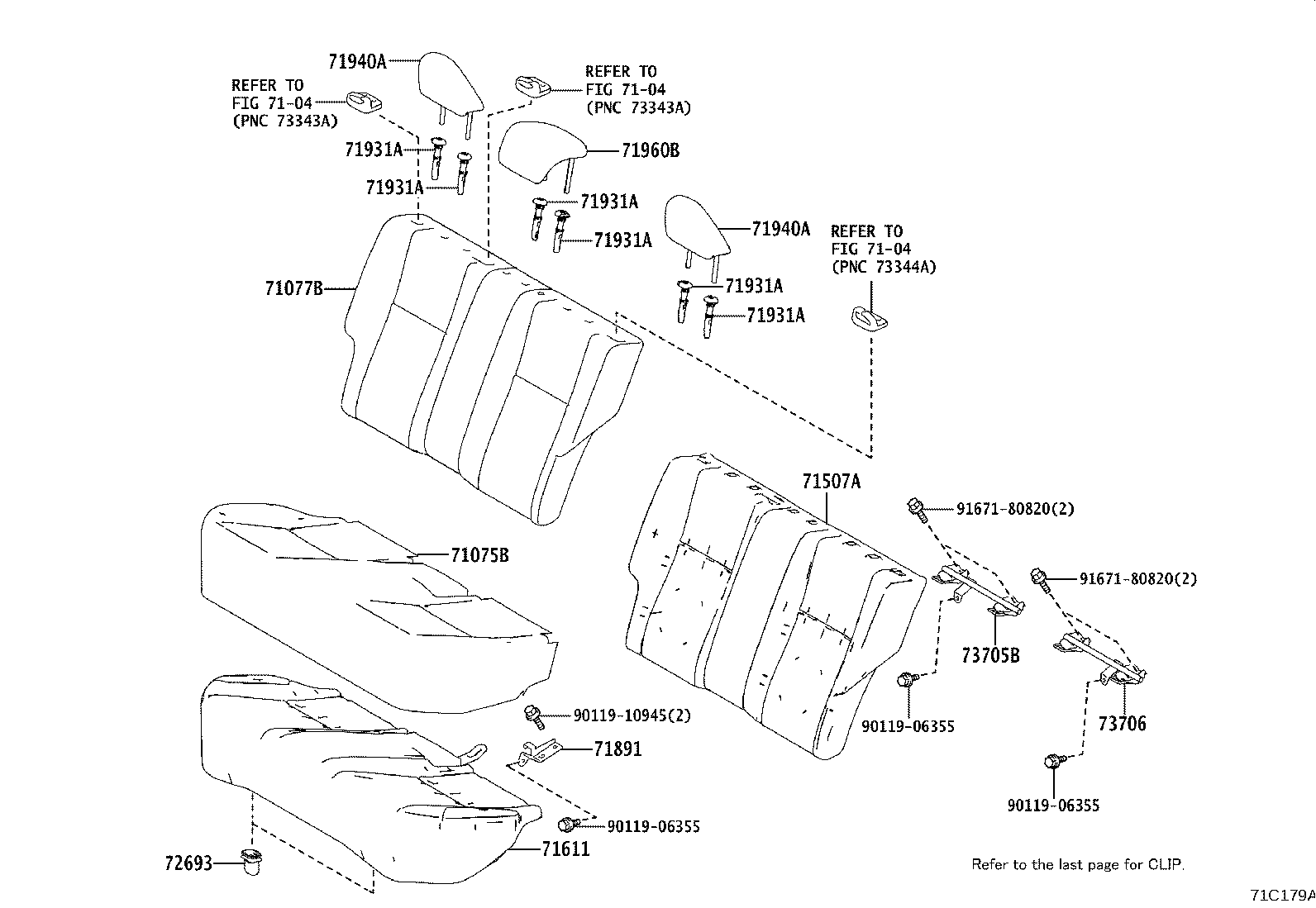

ILLUST NO. 2 OF 2(1912- )
FIX TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-0ZD40C1 |
ZRE182..D BLACK/BLACK,TRIM2# |
1 | ||
| 71075-0ZD50C1 |
ZRE182..G BLACK,TRIM2# |
1 | ||
| 71075-0ZD60C3 |
ZRE182..N BLACK/RED,TRIM3# |
1 | ||
| 71075-0ZD60C2 |
ZRE182..N BLACK/SILVER,TRIM2# |
1 | ||
| 71075-0ZD40C1 |
ZRE182..G,N SEAT COVER MATERIAL-FABRIC,BLACK/BLACK,TRIM2# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71078-0Z780C2 |
ZRE182..D..SA BLACK/BLACK/MEDIUM GRAY,TRIM2# |
1 | ||
| 71078-0Z780C2 |
ZRE182..D..GEN CHILD RESTRAINT SYSTEM-WITH&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & KNEE),BLACK/BLACK/MEDIUM GRAY,TRIM2# |
1 | ||
| 71078-0Z790C7 |
ZRE182..N..SA BLACK/RED,TRIM3# |
1 | ||
| 71078-0Z790C6 |
ZRE182..N..GEN CHILD RESTRAINT SYSTEM-WITH,BLACK/SILVER,TRIM2# |
1 | ||
| 71078-0Z780C2 |
ZRE182..(G,N)..SA SEAT COVER MATERIAL-FABRIC,BLACK/BLACK/MEDIUM GRAY,TRIM2# |
1 | ||
| 71078-0Z780C2 |
ZRE182..D..GEN CHILD RESTRAINT SYSTEM-WITH,BLACK/BLACK/MEDIUM GRAY,TRIM2# |
1 | ||
| 71078-0Z790C6 |
ZRE182..N..SA BLACK/SILVER,TRIM2# |
1 | ||
| 71078-0Z800C2 |
ZRE182..D..GEN BLACK/BLACK,TRIM2# |
1 | ||
| 71078-0Z810C7 |
ZRE182..N..GEN BLACK/RED,TRIM3# |
1 | ||
| 71078-0Z810C6 |
ZRE182..N..GEN BLACK/SILVER,TRIM2# |
1 | ||
| 71078-0Z790C7 |
ZRE182..N..GEN CHILD RESTRAINT SYSTEM-WITH,BLACK/RED,TRIM3# |
1 | ||
| 71507A - PAD SUB-ASSY, REAR SEAT BACK | ||||
| 71507-02540 |
ZRE182..G SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71507-02540 |
ZRE182..D,N |
1 | ||
| 71507-02540 |
ZRE182..G..GEN SEAT COVER MATERIAL-FABRIC&CHILD RESTRAINT SYSTEM-WITH |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02300 |
ZRE182 |
1 | ||
| 71891 - BRACKET, REAR SEAT BACK SET, NO.1 | ||||
| 71891-02130 |
ZRE182..G SEAT COVER MATERIAL-FABRIC |
1 | ||
| 71891-02130 |
ZRE182..D,N |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-4402021 |
ZRE182..N W(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71931-47010C8 |
ZRE182..D,G W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-4402021 |
ZRE182..D,G W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-47010C8 |
ZRE182..N W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-4402021 |
ZRE182..N W(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71931-47010C8 |
ZRE182..D,G W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-4402021 |
ZRE182..D,G W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-47010C8 |
ZRE182..N W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-4402021 |
ZRE182..N W(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71931-47010C8 |
ZRE182..D,G W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-4402021 |
ZRE182..D,G W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-47010C8 |
ZRE182..N W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-4402021 |
ZRE182..N W(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71931-47010C8 |
ZRE182..D,G W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-4402021 |
ZRE182..D,G W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-47010C8 |
ZRE182..N W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-4402021 |
ZRE182..N W(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71931-47010C8 |
ZRE182..D,G W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-4402021 |
ZRE182..D,G W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-47010C8 |
ZRE182..N W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-4402021 |
ZRE182..N W(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71931-47010C8 |
ZRE182..D,G W/O(LOCK),BLACK,TRIM2# |
3 | ||
| 71930-4402021 |
ZRE182..D,G W(LOCK),BLACK,TRIM2# |
3 | ||
| 71931-47010C8 |
ZRE182..N W/O(LOCK),BLACK,TRIM2#,3# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02J61C7 |
ZRE182..D BLACK,TRIM2# |
2 | ||
| 71940-02J61C7 |
ZRE182..G,N SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
2 | ||
| 71940-02N10C1 |
ZRE182..G,N BLACK,TRIM2# |
2 | ||
| 71940-02N10C3 |
ZRE182..N BLACK/RED,TRIM3# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-02J61C7 |
ZRE182..D BLACK,TRIM2# |
2 | ||
| 71940-02J61C7 |
ZRE182..G,N SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
2 | ||
| 71940-02N10C1 |
ZRE182..G,N BLACK,TRIM2# |
2 | ||
| 71940-02N10C3 |
ZRE182..N BLACK/RED,TRIM3# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-02C31C7 |
ZRE182..G,N SEAT COVER MATERIAL-FABRIC,BLACK,TRIM2# |
1 | ||
| 71960-02C31C7 |
ZRE182..D BLACK,TRIM2# |
1 | ||
| 71960-02F10C1 |
ZRE182..G,N BLACK,TRIM2# |
1 | ||
| 71960-02F10C3 |
ZRE182..N BLACK/RED,TRIM3# |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ZRE182 |
2 | ||
| 73705B - BRACKET SUB-ASSY, CROSS ANCHOR | ||||
| 73705-02580 |
ZRE182..G..GEN SEAT COVER MATERIAL-FABRIC&CHILD RESTRAINT SYSTEM-WITH |
1 | ||
| 73705-02580 |
ZRE182..G SEAT COVER MATERIAL-FABRIC |
1 | ||
| 73705-02160 |
ZRE182..G..GEN CHILD RESTRAINT SYSTEM-WITH |
2 | ||
| 73705-02580 |
ZRE182..D,N |
1 | ||
| 73705-02160 |
ZRE182..G..SA |
2 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-02160 |
ZRE182..G..GEN SEAT COVER MATERIAL-FABRIC&CHILD RESTRAINT SYSTEM-WITH |
1 | ||
| 73706-02160 |
ZRE182..G SEAT COVER MATERIAL-FABRIC |
1 | ||
| 73706-02160 |
ZRE182..D,N |
1 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 90119-10945 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
