ZRE181R-GEFNKN (2017)

Toyota Corolla

Production Jan 2017 - Dec 2019
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1701- )SA

Click highlighted areas on diagram

WITH(SMART ENTRY)

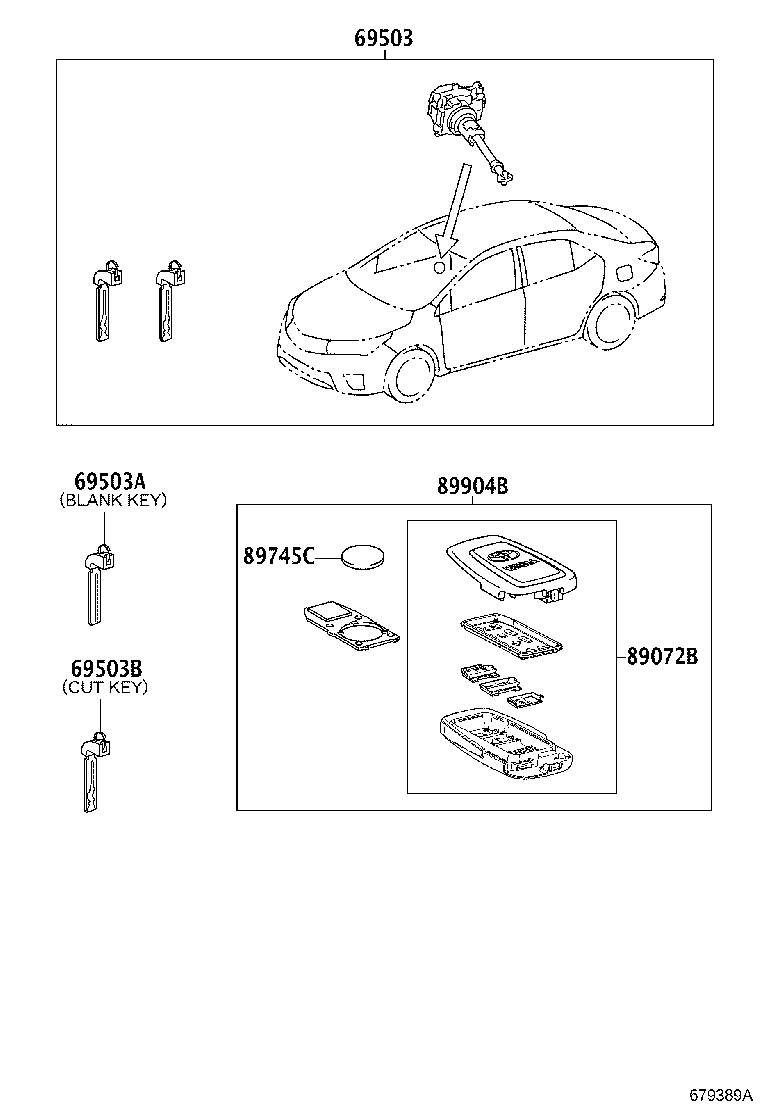

diagram 69503 69503A 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-12J80

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 1
89704-02660

NDE180,NRE180,ZRE18#..N..SA

WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 1
89704-02660

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 1
89704-02660

NDE180,NRE180,ZRE18#..SA

 1
89704-02660

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&SRS AIR BAG-WITH(*DRS & *PAS & SIDE &*CUSA & KNEE)

 1
69503A - KEY, BLANK
69515-47030

NDE180,NRE180,ZRE18#..N..SA

MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 1
69503B - KEY, CUT
69515-47020

NDE180,NRE180,ZRE18#..N..SA

MASTER KEY,W(*68),WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-02620

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 2
89745C - BATTERY, TRANSMITTER
89745-50020

NDE180,NRE180,ZRE18#..N..SA

CR2032,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA &KNEE)

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-02100

NDE180,NRE180,ZRE18#..N..SA

WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)

 2
