ZRE181R-GEFDKN (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )6F..SA

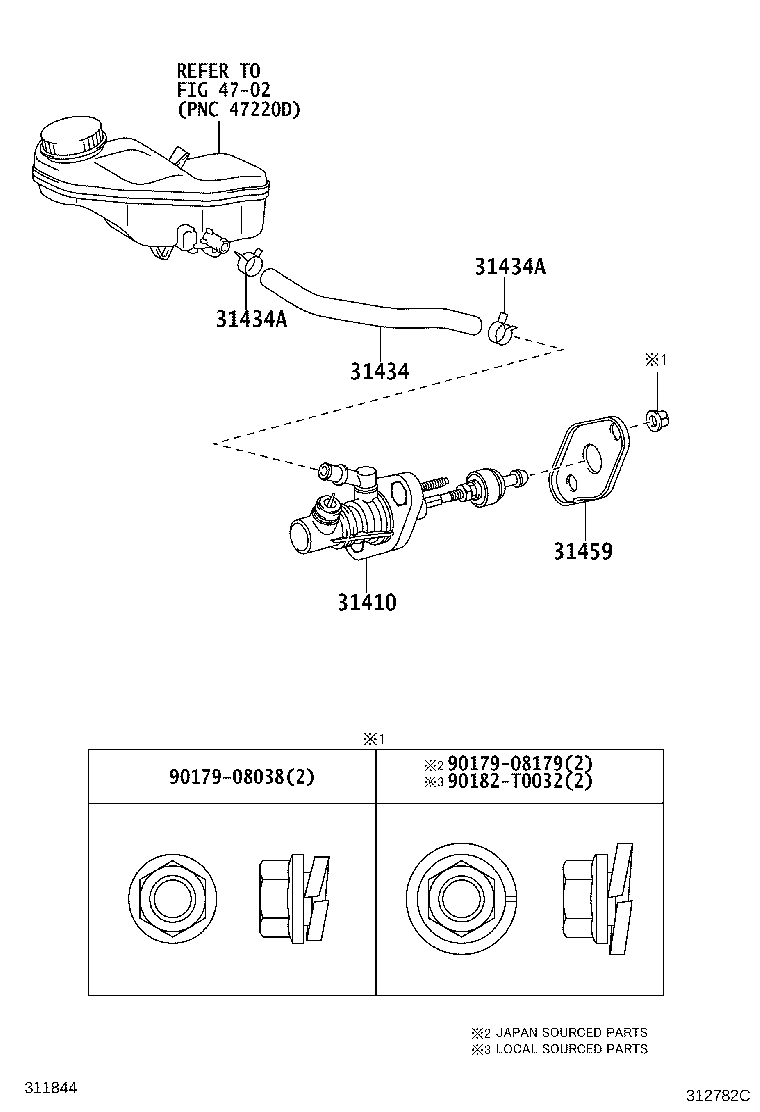

Click highlighted areas on diagram

diagram 31410 31434 31434A 31434A 31459 4702 9017908038 9017908179 90182T0032
Part # Description Qty Price
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-02042

NDE180,NRE180,ZRE18#..6F..SA

 1
31420-02043

NDE180,NRE180,ZRE18#..6F..SA

 1
31434 - TUBE, CLUTCH RESERVOIR
31434-02040

NDE180,NRE180,ZRE18#..6F..SA

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

NDE180,NRE180,ZRE18#..6F..SAP

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96136-41801

NDE180,NRE180,ZRE18#..6F..SAP

 2
31459 - BRACKET, CLUTCH MASTER CYLINDER
31459-42040

NDE180,NRE180,ZRE18#..6F..SAP

 1
Common parts
90179-08038
90179-08179
90182-T0032
Linked diagrams
4702
