ZRE181L-GEXDK (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )1ZRFE,2ZRFE

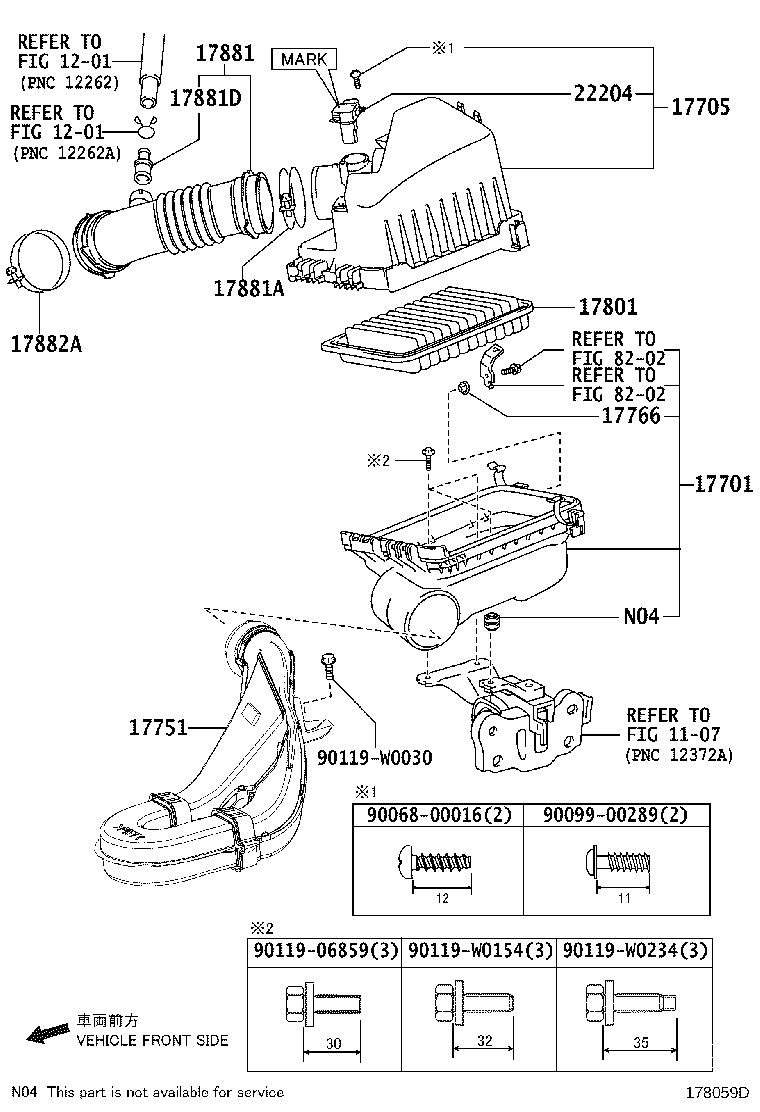

Click highlighted areas on diagram

diagram 1107 1201 1201 17701 17705 17751 17766 17801 17881 17881A 17881D 17882A 22204 8202 8202 9006800016 9009900289 9011906859 90119W0030 90119W0154 90119W0234
Part # Description Qty Price
17701 - CASE SUB-ASSY, AIR CLEANER
17701-0D160

1ZRFE,2ZRFE..ZRE18#..SAP

MADE IN SOUTH AFRICA

 1
17701-0T080

1ZRFE,2ZRFE..ZRE18#

MADE IN EUROPE

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0T091

1ZRFE,2ZRFE..ZRE18#..SAP

MADE IN SOUTH AFRICA

 1
17705-0T051

1ZRFE,2ZRFE..ZRE18#

MADE IN EUROPE

 1
17751 - INLET, AIR CLEANER, NO.1
17751-0Y120

1ZRFE,2ZRFE..ZRE18#..SAP

 1
17766 - STAY, AIR CLEANER, NO.2
17706-21010

1ZRFE,2ZRFE..ZRE18#..SAP

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0D060

1ZRFE,2ZRFE..ZRE18#

MADE IN EUROPE

 1
17801-0D090

1ZRFE,2ZRFE..ZRE18#..SAP

MADE IN SOUTH AFRICA

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-0D230

1ZRFE,2ZRFE..ZRE18#..SAP

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10750

1ZRFE,2ZRFE..ZRE18#..SAP

 1
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
12229-21010

1ZRFE,2ZRFE..ZRE18#..SAP

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10780

1ZRFE,2ZRFE..ZRE18#..SAP

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0V020

1ZRFE,2ZRFE..ZRE18#..SAP

MARK 22204-0V020

 1
22204-28010

1ZRFE,2ZRFE..ZRE18#..SAP

MARK 22204-28010

 1
22204-0V010

1ZRFE,2ZRFE..ZRE18#

MARK 22204-0V010

 1
Common parts
90068-00016
90099-00289
90119-06859
90119-W0030
90119-W0154
90119-W0234
Linked diagrams
1107
1201
8202
