ZRE181L-GEXDK (2014)

Toyota Corolla

Production Jan 2014 - Jan 2017
Engine 1ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1401- )1ZRFE,2ZRFE

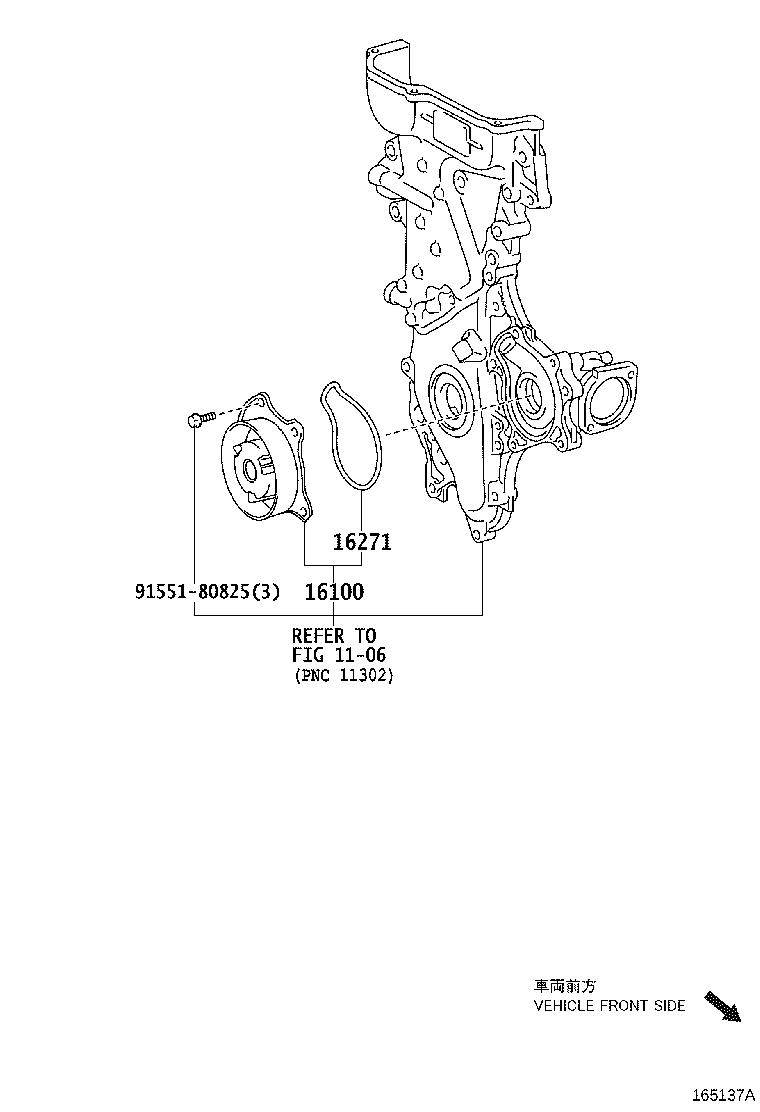

Click highlighted areas on diagram

diagram 1106 16100 16271 9155180825
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09501

1ZRFE,2ZRFE..ZRE18#..SAP

(L)

 1
16100-39466

1ZRFE,2ZRFE..ZRE18#..SAP

(J)

 1
16271 - GASKET, WATER PUMP
16271-37010

1ZRFE,2ZRFE..ZRE18#..SAP

 1
Common parts
91551-80825
Linked diagrams
1106
