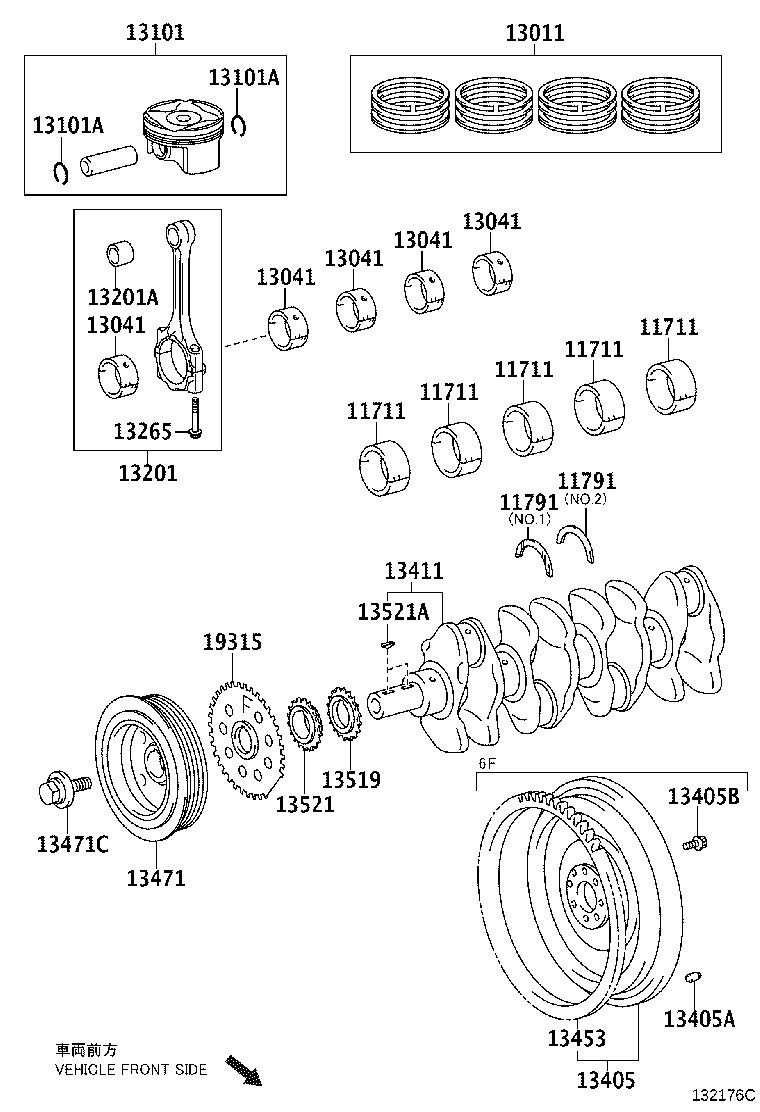

ZRE181L-GEXDK (2014)
Toyota Corolla
(1401- )1ZRFE,2ZRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0T02001 |
1ZRFE,2ZRFE..ZRE18# MARK1,(L),REFER R/M |
5 | ||
| 11701-0T02004 |
1ZRFE,2ZRFE..ZRE18# MARK4,(L),REFER R/M |
5 | ||
| 11701-3702002 |
1ZRFE,2ZRFE..ZRE18# MARK2,(J),REFER R/M |
5 | ||
| 11701-0T02003 |
1ZRFE,2ZRFE..ZRE18# MARK3,(L),REFER R/M |
5 | ||
| 11701-3702004 |
1ZRFE,2ZRFE..ZRE18# MARK4,(J),REFER R/M |
5 | ||
| 11701-3702001 |
1ZRFE,2ZRFE..ZRE18# MARK1,(J),REFER R/M |
5 | ||
| 11701-0T02002 |
1ZRFE,2ZRFE..ZRE18# MARK2,(L),REFER R/M |
5 | ||
| 11701-3702003 |
1ZRFE,2ZRFE..ZRE18# MARK3,(J),REFER R/M |
5 | ||
| 11701-0T02102 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(L),REFER R/M |
5 | ||
| 11701-3702101 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(J),REFER R/M |
5 | ||
| 11701-0T02101 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(L),REFER R/M |
5 | ||
| 11701-0T02103 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(L),REFER R/M |
5 | ||
| 11701-3702102 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(J),REFER R/M |
5 | ||
| 11701-3702103 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(J),REFER R/M |
5 | ||
| 11701-3702104 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK4,(J),REFER R/M |
5 | ||
| 11701-0T02104 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK4,(L),REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0T02001 |
1ZRFE,2ZRFE..ZRE18# MARK1,(L),REFER R/M |
5 | ||
| 11701-0T02004 |
1ZRFE,2ZRFE..ZRE18# MARK4,(L),REFER R/M |
5 | ||
| 11701-3702002 |
1ZRFE,2ZRFE..ZRE18# MARK2,(J),REFER R/M |
5 | ||
| 11701-0T02003 |
1ZRFE,2ZRFE..ZRE18# MARK3,(L),REFER R/M |
5 | ||
| 11701-3702004 |
1ZRFE,2ZRFE..ZRE18# MARK4,(J),REFER R/M |
5 | ||
| 11701-3702001 |
1ZRFE,2ZRFE..ZRE18# MARK1,(J),REFER R/M |
5 | ||
| 11701-0T02002 |
1ZRFE,2ZRFE..ZRE18# MARK2,(L),REFER R/M |
5 | ||
| 11701-3702003 |
1ZRFE,2ZRFE..ZRE18# MARK3,(J),REFER R/M |
5 | ||
| 11701-0T02102 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(L),REFER R/M |
5 | ||
| 11701-3702101 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(J),REFER R/M |
5 | ||
| 11701-0T02101 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(L),REFER R/M |
5 | ||
| 11701-0T02103 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(L),REFER R/M |
5 | ||
| 11701-3702102 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(J),REFER R/M |
5 | ||
| 11701-3702103 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(J),REFER R/M |
5 | ||
| 11701-3702104 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK4,(J),REFER R/M |
5 | ||
| 11701-0T02104 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK4,(L),REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0T02001 |
1ZRFE,2ZRFE..ZRE18# MARK1,(L),REFER R/M |
5 | ||
| 11701-0T02004 |
1ZRFE,2ZRFE..ZRE18# MARK4,(L),REFER R/M |
5 | ||
| 11701-3702002 |
1ZRFE,2ZRFE..ZRE18# MARK2,(J),REFER R/M |
5 | ||
| 11701-0T02003 |
1ZRFE,2ZRFE..ZRE18# MARK3,(L),REFER R/M |
5 | ||
| 11701-3702004 |
1ZRFE,2ZRFE..ZRE18# MARK4,(J),REFER R/M |
5 | ||
| 11701-3702001 |
1ZRFE,2ZRFE..ZRE18# MARK1,(J),REFER R/M |
5 | ||
| 11701-0T02002 |
1ZRFE,2ZRFE..ZRE18# MARK2,(L),REFER R/M |
5 | ||
| 11701-3702003 |
1ZRFE,2ZRFE..ZRE18# MARK3,(J),REFER R/M |
5 | ||
| 11701-0T02102 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(L),REFER R/M |
5 | ||
| 11701-3702101 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(J),REFER R/M |
5 | ||
| 11701-0T02101 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(L),REFER R/M |
5 | ||
| 11701-0T02103 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(L),REFER R/M |
5 | ||
| 11701-3702102 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(J),REFER R/M |
5 | ||
| 11701-3702103 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(J),REFER R/M |
5 | ||
| 11701-3702104 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK4,(J),REFER R/M |
5 | ||
| 11701-0T02104 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK4,(L),REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0T02001 |
1ZRFE,2ZRFE..ZRE18# MARK1,(L),REFER R/M |
5 | ||
| 11701-0T02004 |
1ZRFE,2ZRFE..ZRE18# MARK4,(L),REFER R/M |
5 | ||
| 11701-3702002 |
1ZRFE,2ZRFE..ZRE18# MARK2,(J),REFER R/M |
5 | ||
| 11701-0T02003 |
1ZRFE,2ZRFE..ZRE18# MARK3,(L),REFER R/M |
5 | ||
| 11701-3702004 |
1ZRFE,2ZRFE..ZRE18# MARK4,(J),REFER R/M |
5 | ||
| 11701-3702001 |
1ZRFE,2ZRFE..ZRE18# MARK1,(J),REFER R/M |
5 | ||
| 11701-0T02002 |
1ZRFE,2ZRFE..ZRE18# MARK2,(L),REFER R/M |
5 | ||
| 11701-3702003 |
1ZRFE,2ZRFE..ZRE18# MARK3,(J),REFER R/M |
5 | ||
| 11701-0T02102 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(L),REFER R/M |
5 | ||
| 11701-3702101 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(J),REFER R/M |
5 | ||
| 11701-0T02101 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(L),REFER R/M |
5 | ||
| 11701-0T02103 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(L),REFER R/M |
5 | ||
| 11701-3702102 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(J),REFER R/M |
5 | ||
| 11701-3702103 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(J),REFER R/M |
5 | ||
| 11701-3702104 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK4,(J),REFER R/M |
5 | ||
| 11701-0T02104 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK4,(L),REFER R/M |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-0T02001 |
1ZRFE,2ZRFE..ZRE18# MARK1,(L),REFER R/M |
5 | ||
| 11701-0T02004 |
1ZRFE,2ZRFE..ZRE18# MARK4,(L),REFER R/M |
5 | ||
| 11701-3702002 |
1ZRFE,2ZRFE..ZRE18# MARK2,(J),REFER R/M |
5 | ||
| 11701-0T02003 |
1ZRFE,2ZRFE..ZRE18# MARK3,(L),REFER R/M |
5 | ||
| 11701-3702004 |
1ZRFE,2ZRFE..ZRE18# MARK4,(J),REFER R/M |
5 | ||
| 11701-3702001 |
1ZRFE,2ZRFE..ZRE18# MARK1,(J),REFER R/M |
5 | ||
| 11701-0T02002 |
1ZRFE,2ZRFE..ZRE18# MARK2,(L),REFER R/M |
5 | ||
| 11701-3702003 |
1ZRFE,2ZRFE..ZRE18# MARK3,(J),REFER R/M |
5 | ||
| 11701-0T02102 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(L),REFER R/M |
5 | ||
| 11701-3702101 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(J),REFER R/M |
5 | ||
| 11701-0T02101 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(L),REFER R/M |
5 | ||
| 11701-0T02103 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(L),REFER R/M |
5 | ||
| 11701-3702102 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(J),REFER R/M |
5 | ||
| 11701-3702103 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(J),REFER R/M |
5 | ||
| 11701-3702104 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK4,(J),REFER R/M |
5 | ||
| 11701-0T02104 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK4,(L),REFER R/M |
5 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-37010 |
1ZRFE,2ZRFE..ZRE18# STD |
2 | ||
| 11791-37010 |
1ZRFE,2ZRFE..ZRE18#..SAP STD,NO.2 |
1 | ||
| 11791-22020 |
1ZRFE,2ZRFE..ZRE18#..SAP STD,NO.1,NO PAINTED |
1 | ||
| 11791-22020 |
1ZRFE,2ZRFE..ZRE18# STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-37010 |
1ZRFE,2ZRFE..ZRE18# STD |
2 | ||
| 11791-37010 |
1ZRFE,2ZRFE..ZRE18#..SAP STD,NO.2 |
1 | ||
| 11791-22020 |
1ZRFE,2ZRFE..ZRE18#..SAP STD,NO.1,NO PAINTED |
1 | ||
| 11791-22020 |
1ZRFE,2ZRFE..ZRE18# STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-37090 |
1ZRFE,2ZRFE..ZRE18# STD,(J) |
1 | ||
| 13011-0T031 |
1ZRFE,2ZRFE..ZRE18# STD,(L) |
1 | ||
| 13011-0T110 |
1ZRFE,2ZRFE..ZRE18#..SAP STD,(L) |
1 | ||
| 13011-37290 |
1ZRFE,2ZRFE..ZRE18#..SAP STD,(J) |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0T03001 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(L),REFER R/M |
4 | ||
| 13041-3701001 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(J),REFER R/M |
4 | ||
| 13041-0T03002 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(L),REFER R/M |
4 | ||
| 13041-3701002 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(J),REFER R/M |
4 | ||
| 13041-0T03003 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(L),REFER R/M |
4 | ||
| 13041-3701003 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(J),REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0T03001 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(L),REFER R/M |
4 | ||
| 13041-3701001 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(J),REFER R/M |
4 | ||
| 13041-0T03002 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(L),REFER R/M |
4 | ||
| 13041-3701002 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(J),REFER R/M |
4 | ||
| 13041-0T03003 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(L),REFER R/M |
4 | ||
| 13041-3701003 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(J),REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0T03001 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(L),REFER R/M |
4 | ||
| 13041-3701001 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(J),REFER R/M |
4 | ||
| 13041-0T03002 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(L),REFER R/M |
4 | ||
| 13041-3701002 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(J),REFER R/M |
4 | ||
| 13041-0T03003 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(L),REFER R/M |
4 | ||
| 13041-3701003 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(J),REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0T03001 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(L),REFER R/M |
4 | ||
| 13041-3701001 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(J),REFER R/M |
4 | ||
| 13041-0T03002 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(L),REFER R/M |
4 | ||
| 13041-3701002 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(J),REFER R/M |
4 | ||
| 13041-0T03003 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(L),REFER R/M |
4 | ||
| 13041-3701003 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(J),REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-0T03001 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(L),REFER R/M |
4 | ||
| 13041-3701001 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK1,(J),REFER R/M |
4 | ||
| 13041-0T03002 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(L),REFER R/M |
4 | ||
| 13041-3701002 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK2,(J),REFER R/M |
4 | ||
| 13041-0T03003 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(L),REFER R/M |
4 | ||
| 13041-3701003 |
1ZRFE,2ZRFE..ZRE18#..SAP MARK3,(J),REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-0T050 |
1ZRFE..ZRE181 STD |
4 | ||
| 13101-0T340 |
1ZRFE..ZRE181..SAP STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-20064 |
1ZRFE,2ZRFE..ZRE18#..SAP |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-20064 |
1ZRFE,2ZRFE..ZRE18#..SAP |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-09A30 |
1ZRFE,2ZRFE..ZRE18#..SAP (L) |
4 | ||
| 13201-39185 |
1ZRFE,2ZRFE..ZRE18#..SAP (J) |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73151 |
1ZRFE,2ZRFE..ZRE18#..SAP |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-22020 |
1ZRFE,2ZRFE..ZRE18#..SAP |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-0T050 |
1ZRFE..ZRE181 (L) |
1 | ||
| 13401-0T051 |
1ZRFE..ZRE181..SAP (L) |
1 | ||
| 13401-37011 |
1ZRFE..ZRE181..SAP (J) |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-37041 |
1ZRFE,2ZRFE..ZRE18#..SAP |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14106 |
1ZRFE,2ZRFE..ZRE18# |
1 | ||
| 90119-14175 |
1ZRFE,2ZRFE..ZRE18#..SAP |
1 | ||
| 13519 - GEAR, OIL PUMP DRIVE | ||||
| 13519-37010 |
1ZRFE,2ZRFE..ZRE18#..SAP |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-37010 |
1ZRFE,2ZRFE..ZRE18# (J) |
1 | ||
| 13521-0T030 |
1ZRFE,2ZRFE..ZRE18#..SAP (L),MADE IN TMMNA |
1 | ||
| 13521-0T070 |
1ZRFE..ZRE181..SAP (L),MADE IN EUROPE |
1 | ||
| 13521-37011 |
1ZRFE,2ZRFE..ZRE18#..SAP (J) |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-04003 |
1ZRFE,2ZRFE..ZRE18#..SAP |
2 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-37020 |
1ZRFE,2ZRFE..ZRE18#..SAP |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
